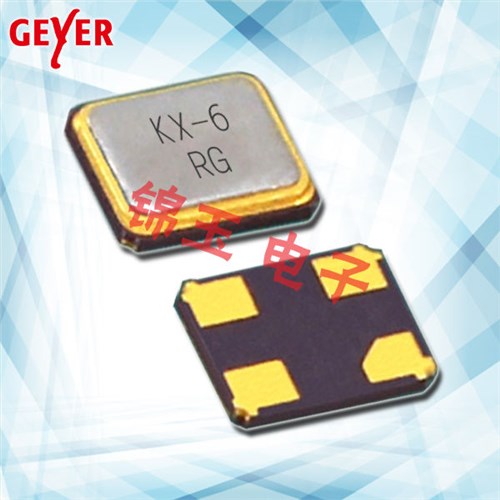

12.86533,KX-6T,丹麦Geyer进口晶振,2520mm,安防设备晶振

产品简介

12.86533,KX-6T,丹麦Geyer进口晶振,2520mm,安防设备晶振，丹麦进口晶振，Geyer晶振，格耶晶振，型号：KX-6T系列，编码为：12.86533，频率：26MHz，频率稳定性：±100ppm，频率容差：±30ppm，负载电容：10pF，工作温度范围：-40℃至+85℃，小体积晶振尺寸：2.5x2.0mm封装，四脚贴片晶振，石英晶振，无源晶振，石英晶体谐振器，2520晶振，SMD石英晶体。具有超小型，轻薄型，高性能，高品质，耐热及耐环境等特点。被广泛应用于：移动通讯设备，无线蓝牙晶振，安防设备晶振，平板电脑晶振，可穿戴设备晶振，安防设备等应用。

产品详情

锦玉-8

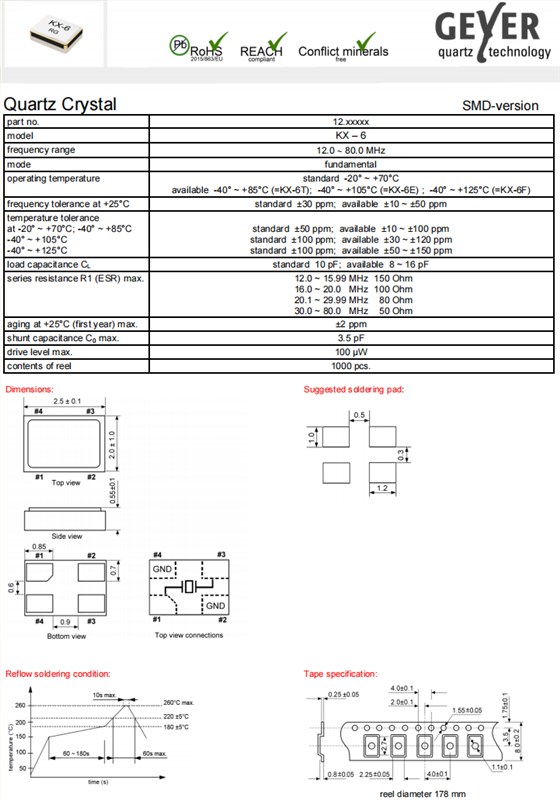

12.86533,KX-6T,丹麦Geyer进口晶振,2520mm,安防设备晶振,参数表

part no.	12.86556
model	KX-6T
frequency	26.000MHz
mode	fundamental
operating temperature	standard -20° ~ + 70°C available -40° ~ + 85°C (=KX-6T) available -40° ~ +105°C (=KX-6E) available -40° ~ +125°C (=KX-6F)
frequency tolerance at +25°C	standard ±30 ppm, available ±30~±50ppm
temperature tolerance -20° ~ + 70°C，-40° ~ + 85°C -40° ~ +105°C -40° ~ +125°C	standard ± 50ppm, available ±10~± 100ppm standard ±100ppm, available ±30~±120ppm standard ±100ppm, available ±50~±150ppm
load capacitance C L	standard 10pF available 8 ~ 16pF
series resonance R1 max.	12,0 ~ 15,99 MHz 150 Ohm 16,0 ~ 20,0 MHz 100 Ohm 20,1 ~ 29,99 MHz 80 Ohm 30,0 ~ 80,0 MHz 50 Ohm
aging at +25°C (first year) max.	± 2ppm
shunt capacitance C o max.	3.5pF
drive level max	100 µW
contents of reel	1000 pcs.

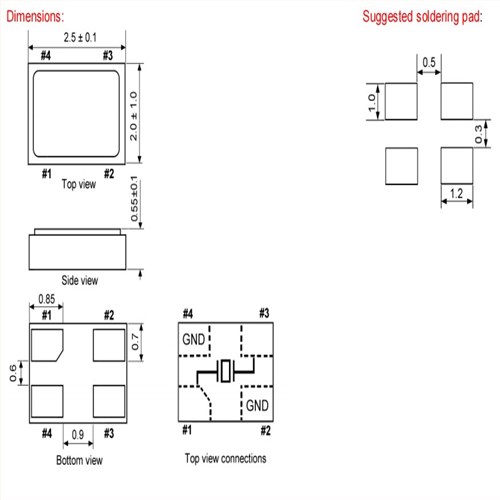

12.86533,KX-6T,丹麦Geyer进口晶振,2520mm,安防设备晶振,尺寸图

编码	品牌	进口贴片晶振	型号	频率	频率稳定性
12.86509	Geyer格耶	Cystal 48.0MHz 10pF SMD	KX-6	48MHz	±50ppm
12.86531	Geyer格耶	Cystal 16.0MHz 10pF SMD	KX-6T	16MHz	±100ppm
12.86512	Geyer格耶	Cystal 20.0MHz 10pF SMD	KX-6	20MHz	±50ppm
12.8655	Geyer格耶	Crystal 16.0MHz 10pF SMD	KX-6E	16MHz	±150ppm
12.86526	Geyer格耶	Cystal 26.0MHz 10pF SMD	KX-6T	26MHz	±20ppm
12.86517	Geyer格耶	Cystal 24.0MHz 10pF SMD	KX-6	24MHz	±50ppm
12.86533	Geyer格耶	Cystal 26.0MHz 10pF SMD	KX-6T	26MHz	±100ppm
12.8652	Geyer格耶	Cystal 27.0MHz 10pF SMD	KX-6	27MHz	±50ppm
12.86574	Geyer格耶	Crystal 27.0MHz 8pF SMD	KX-6F	27MHz	±150ppm
12.86527	Geyer格耶	Cystal 20.0MHz 10pF SMD	KX-6T	20MHz	±15ppm
12.86505	Geyer格耶	Cystal 26.0MHz 10pF SMD	KX-6	26MHz	±50ppm
12.86556	Geyer格耶	Crystal 40.0MHz 8pF SMD	KX-6T	40MHz	±20ppm
12.86511	Geyer格耶	Crystal 18.4320MHz 10pF SMD	KX-6	18.432MHz	±50ppm
12.86536	Geyer格耶	Crystal 14.318180MHz 10pF SMD	KX-6	14.31818MHz	±50ppm
12.86561	Geyer格耶	Crystal 40.0MHz 10pF SMD	KX-6T	40MHz	±20ppm
12.86564	Geyer格耶	Crystal 14.318180MHz 10pF SMD	KX-6T	14.31818MHz	±100ppm
12.86592	Geyer格耶	Crystal 25.0MHz SMD KX-6T 12pF,	KX-6T	25MHz	±20ppm
