ECX-12L,ECS-.327-12.5-12L-TR,32.768KHz,2012mm,ECS晶振，美国进口晶振，ECS伊西斯晶振，型号：ECX-12L，编码为：ECS-.327-12.5-12L-TR，频率：32.768KHz石英晶体，负载：12.5pF，精度：±20ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：2.0x1.2x0.38mm超微型封装，是一个非常紧凑的SMD调谐分叉晶体。两脚贴片晶振，石英晶振，无源晶振，2012晶振，SMD时钟晶体，石英晶体谐振器。具有超小型晶振，轻薄型晶振，高品质晶振，高性能晶振，耐热及耐环境等特点。适用于：通讯设备晶振，可穿戴设备晶振，无线应用晶振，实时时钟晶振，智能卡、移动设备和工业应用的理想选择。

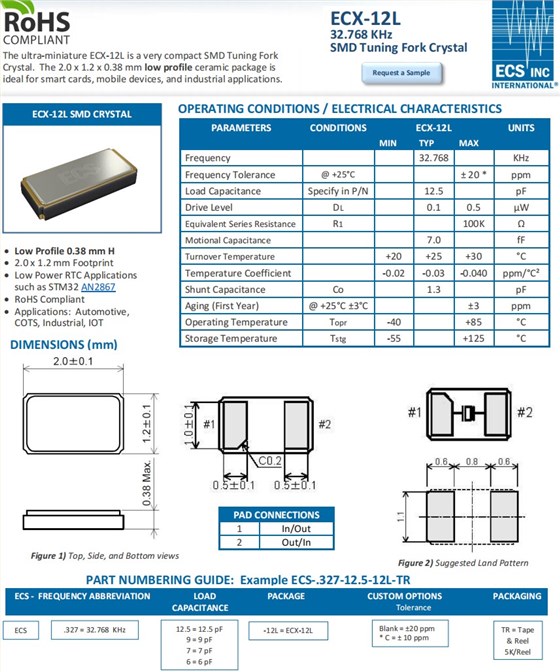

ECX-12L,ECS-.327-12.5-12L-TR,32.768KHz,2012mm,ECS晶振,参数表
PARAMETERS
CONDITIONS
ECX-12L
UNITS
MIN
TYP
MAX
Frequency
32.768
KHz
Frequency Tolerance
@ +25°C
± 20 *
ppm
Load Capacitance
Specify in P/N
12.5
pF
Drive Level
DL
0.1
0.5
μW
Equivalent Series Resistance
R1
100K
Ω
Motional Capacitance
7.0
fF
Turnover Temperature
+20
+25
+30
°C
Temperature Coefficient
-0.02
-0.03
-0.040
ppm/°C²
Shunt Capacitance
Co
1.3
pF
Aging (First Year)
@ +25°C ±3°C
±3
ppm
Operating Temperature
Topr
-40
+85
°C
Storage Temperature
Tstg
-55
+125
°C

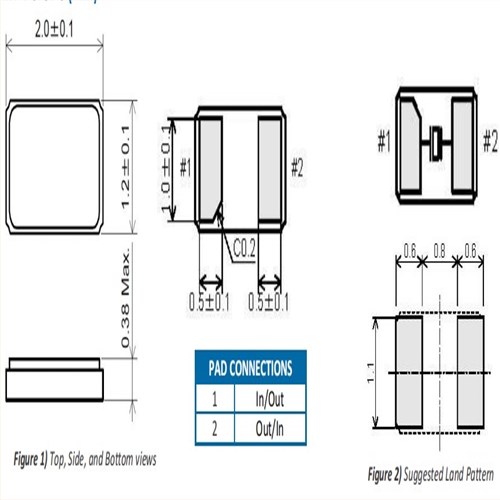

ECX-12L,ECS-.327-12.5-12L-TR,32.768KHz,2012mm,ECS晶振,尺寸图
