ECX-39,ECS-.327-12.5-39-TR,32.768kHz,4918mm,ECS无源晶体，美国进口晶振，伊西斯晶振，ECS晶振，型号：ECX-39系列，编码为：ECS-.327-12.5-39-TR，频率：32.768KHz，负载：12.5pF，精度：±20ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：4.9x1.8x1.0mm，是一个紧凑的SMD调谐分叉晶体，两脚贴片晶振，无源晶振，SMD晶振，石英晶振，石英晶体谐振器。具有超小型晶振，轻薄型晶振，高品质晶振，高性能晶振，耐热及耐环境等特点。符合RoHS范围，是当今SMD制造环境的理想选择。适用于：通信设备晶振，实时时钟晶振，无线蓝牙晶振，钟表电子晶振，仪器仪表晶振，智能家居晶振等。

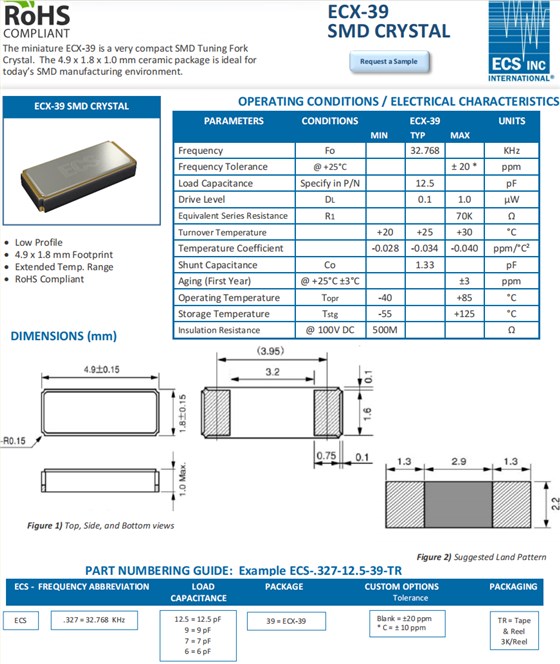

ECX-39,ECS-.327-12.5-39-TR,32.768kHz,4918mm,ECS无源晶体,参数表
PARAMETERS
CONDITIONS
ECX-39
UNITS
MIN
TYP
MAX
Frequency
Fo
32.768
KHz
Frequency Tolerance
@ +25°C
± 20 *
ppm
Load Capacitance
Specify in P/N
12.5
pF
Drive Level
DL
0.1
1.0
μW
Equivalent Series Resistance
R1
70K
Ω
Turnover Temperature
+20
+25
+30
°C
Temperature Coefficient
-0.028
-0.034
-0.040
ppm/°C²
Shunt Capacitance
Co
1.33
pF
Aging (First Year)
@ +25°C ±3°C
±3
ppm
Operating Temperature
Topr
-40
+85
°C
Storage Temperature
Tstg
-55
+125
°C
Insulation Resistance
@ 100V DC
500M
Ω

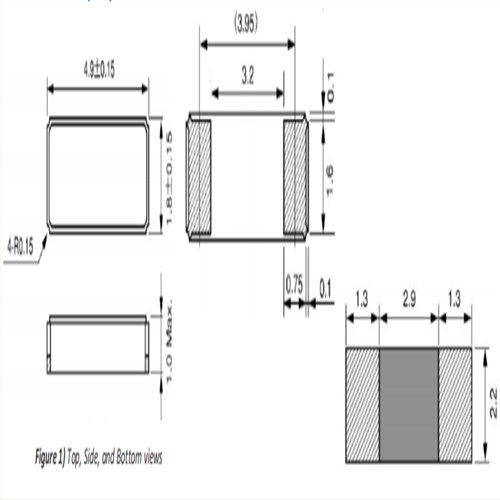

ECX-39,ECS-.327-12.5-39-TR,32.768kHz,4918mm,ECS无源晶体,尺寸图
| 原厂编码 | 进口晶振 | 型号 | 频率 | 工作温度 |
| ECS-.327-12.5-34B-TR | ECS晶振 | ECX-31B | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-17X-TR | ECS晶振 | ECX-306X | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-13X | ECS晶振 | ECS-2X6X | 32.768kHz | -10°C ~ 60°C |
| ECS-.327-12.5-38-TR | ECS晶振 | ECX-71 | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-7-34B-TR | ECS晶振 | ECX-31B | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-6-17X-TR | ECS晶振 | ECX-306X | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-17X-C-TR | ECS晶振 | ECX-306X | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-CDX-1128 | ECS晶振 | ECS-CDX | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-7-38-TR | ECS晶振 | ECX-71 | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-13FLX-C | ECS晶振 | ECS-2x6-FLX | 32.768kHz | -40°C ~ 85°C |
| ECS-3X8X | ECS晶振 | ECS-3X8X | 32.768kHz | -10°C ~ 60°C |
| ECS-.327-12.5-13 | ECS晶振 | ECS-2x6 | 32.768kHz | -10°C ~ 60°C |
| ECS-3X8 | ECS晶振 | ECS-3X8 | 32.768kHz | -10°C ~ 60°C |
| ECS-.327-12.5-34B-C-TR | ECS晶振 | ECX-31B | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-9-34B-TR | ECS晶振 | ECX-31B | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-39-TR | ECS晶振 | ECX-39 | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-34QCS-TR | ECS晶振 | ECX-34Q | 32.768kHz | -40°C ~ 125°C |
| ECS-.327-7-34B-C-TR | ECS晶振 | ECX-31B | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-9-34B-C-TR | ECS晶振 | ECX-31B | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-12-TR | ECS晶振 | ECX-12 | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-7-12-TR | ECS晶振 | ECX-12 | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-6-12-TR | ECS晶振 | ECX-12 | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-17-TR | ECS晶振 | ECX-306 | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-16-TR | ECS晶振 | ECX-16 | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-6-34S-TR | ECS晶振 | ECX-34S | 32.768kHz | -40°C ~ 125°C |
| ECS-.327-12.5-34S-TR | 贴片晶振 | ECX-34S | 32.768kHz | -40°C ~ 125°C |
| ECS-.327-6-13FLX-TR | ECS晶振 | ECS-2x6-FLX | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-6-17X-C-TR | ECS晶振 | ECX-306X | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-7-34QS-TR | ECS晶振 | ECX-34Q | 32.768kHz | -40°C ~ 125°C |
| ECS-.327-9-34QS-TR | ECS晶振 | ECX-34Q | 32.768kHz | -40°C ~ 125°C |
| ECS-.327-12.5-34QS-TR | ECS晶振 | ECX-34Q | 32.768kHz | -40°C ~ 125°C |
| ECS-.327-6-34QS-TR | ECS晶振 | ECX-34Q | 32.768kHz | -40°C ~ 125°C |
| ECS-.327-9-34R-TR | ECS晶振 | ECX-34R | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-34R-TR | ECS晶振 | ECX-34R | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-9-34QCS-TR | ECS晶振 | ECX-34Q | 32.768kHz | -40°C ~ 125°C |
| ECS-.327-7-34QCS-TR | ECS晶振 | ECX-34Q | 32.768kHz | -40°C ~ 125°C |
| ECS-.327-12.5-34R-C-TR | ECS晶振 | ECX-34R | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-6-34QCS-TR | ECS晶振 | ECX-34Q | 32.768kHz | -40°C ~ 125°C |
| ECS-.327-9-12-TR | ECS晶振 | ECX-12 | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-CDX-1074 | ECS晶振 | ECX-12 | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-CDX-1082 | ECS晶振 | CDX-1082 | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-6-17-TR | ECS晶振 | ECX-306 | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-9-16-TR | ECS晶振 | ECX-16 | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-8-14X | ECS晶振 | ECS-1x5X | 32.768kHz | -10°C ~ 60°C |
| ECS-.327-12.5-12L-TR | ECS晶振 | ECX-12L | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-34G-TR | ECS晶振 | ECX-34G | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-6-34G-TR | ECS晶振 | ECX-34G | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-CDX-1038 | ECS晶振 | ECS-2X6X | 32.768kHz | -10°C ~ 60°C |
| ECS-.327-7-34R-TR | ECS晶振 | ECX-34R | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-8-14 | ECS晶振 | ECS-1x5 | 32.768kHz | -10°C ~ 60°C |
| ECS-.327-6-13X | ECS晶振 | ECS-2X6X | 32.768kHz | -10°C ~ 60°C |
| ECS-.327-CDX-1293 | ECS晶振 | ECS-CDX | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-34RR-TR | ECS晶振 | ECX-34RR | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-9-34RR-TR | ECS晶振 | ECX-34RR | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-6-34RR-TR | ECS晶振 | ECX-34RR | 32.768kHz | -40°C ~ 85°C |
