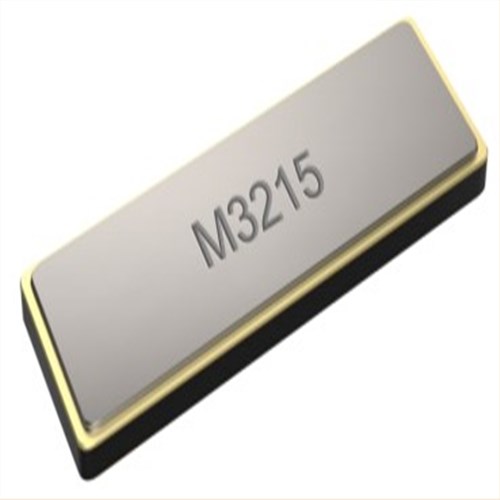

M3215-32.768kHz-±20ppm-12.5pF,3215mm,PETERMANN晶体，德国进口晶振，PETERMANN晶振，彼得曼晶振，型号：M3215系列，编码为：M3215-32.768kHz-±20ppm-12.5pF，频率为：32.768KHz，精度：±20ppm，负载电容：12.5pF，工作温度范围：-40℃至+85℃，小体积晶振尺寸：3.2x1.5mm封装，两脚贴片晶振，无源晶振，时钟晶振，手表晶体，石英晶振，石英晶体谐振器。具有超小型，轻薄型，高性能，高品质，耐热及耐环境等特点。应用程序：出色的时钟发生器，CPU应用晶振、无线应用晶振、移动通信晶振，钟表电子晶振，仪器仪表设备晶振等应用。
M3215-32.768kHz-±20ppm-12.5pF,3215mm,PETERMANN晶体，产品特点：
+最便宜的陶瓷包装迷你手表水晶
+超薄超小型，石英贴片晶振
+标准工作温度范围为-40/+85°C
+出色的时钟发生器，适用于CPU、无线、移动通信等。

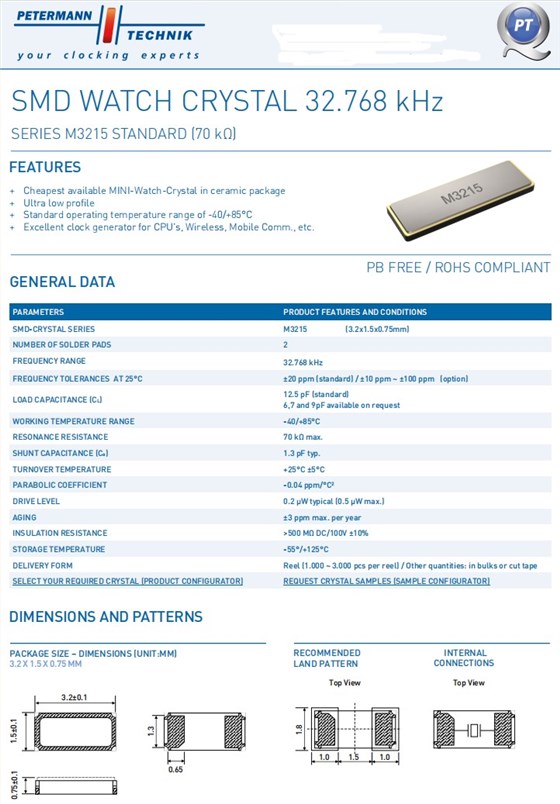

M3215-32.768kHz-±20ppm-12.5pF,3215mm,PETERMANN晶体,参数表
| PARAMETERS | PRODUCT FEATURES AND CONDITIONS |
| SMD-CRYSTAL SERIES | M3215 (3.2x1.5x0.75mm) |
| NUMBER OF SOLDER PADS | 2 |
| FREQUENCY RANGE | 32.768 kHz |
| FREQUENCY TOLERANCES AT 25℃ | ±20 ppm (standard) / ±10 ppm ~ ±100 ppm (option) |
| LOAD CAPACITANCE (CL) | 12.5 pF (standard) |
| 6,7 and 9pF available on request | |
| WORKING TEMPERATURE RANGE | -40/+85℃ |
| RESONANCE RESISTANCE | 70 kΩ typ. |
| SHUNT CAPACITANCE (Co) | 1.3 pF typ. |
| TURNOVER TEMPERATURE | +25℃ ±5℃ |
| PARABOLIC COEFFICIENT | -0.04 ppm/℃2 |
| DRIVE LEVEL | 0.2 µW typical(0.5 µW max.) |
| AGING | ±3 ppm max. per year |
| INSULATION RESISTANCE | >500 MΩ DC/100V ±10% |
| STORAGE TEMPERATURE | -55/+125℃ |
| DELIVERY FORM | Reel (1.000 ~ 3.000 pcs per reel) / Other quantities: in bulks or cut tape |

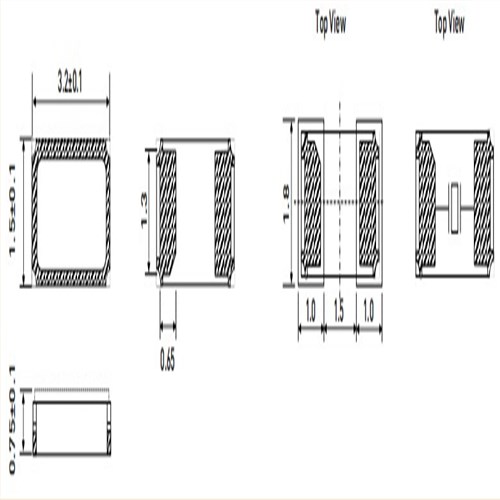

M3215-32.768kHz-±20ppm-12.5pF,3215mm,PETERMANN晶体,尺寸图
