QCM25-21AF18pF-56.000MHz,7050mm,56MHz,QVS晶振，美国进口晶振，QVS晶振，型号：QCM25，编码为：QCM25-21AF18pF-56.000MHz，频率稳定性：±50ppm，工作温度范围：-30℃至+80℃，频率为：56.000MHz，负载：18pF，小体积晶振尺寸：7.0x5.0x1.3mm封装，四脚贴片晶振，石英晶振，SMD石英晶体，7050晶振，石英晶体谐振器，贴片谐振器，无铅环保晶振。具有超小型，轻薄型，高精度，高性能，高品质，耐热及耐环境特点。无源晶振，应用于：通讯设备晶振，无线网络晶振，蓝牙晶振，物联网，车载晶振，游戏机设备晶振，安防设备晶振，智能家居等应用。

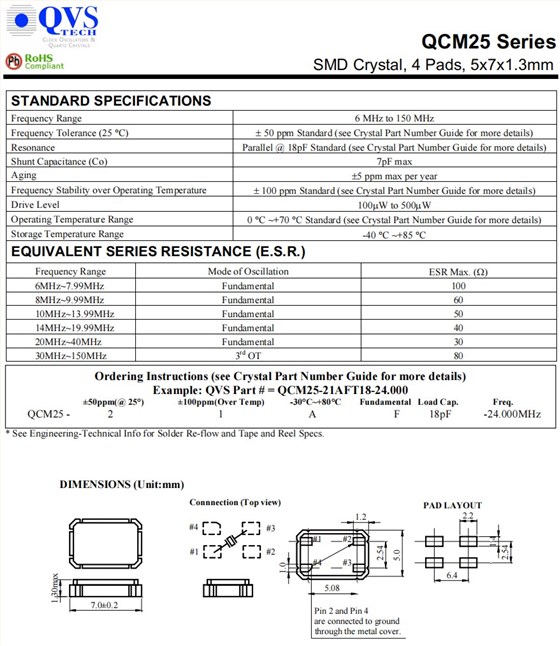

QCM25-21AF18pF-56.000MHz,7050mm,56MHz,QVS晶振,参数表
Frequency Range
56.000 MHz
Frequency Tolerance (25℃)
±50 ppm Standard (see Crystal Part Number Guide for more details)
Resonance
Parallel @ 18pF Standard (see Crystal Part Number Guide for more details)
Shunt Capacitance (Co)
7pF max
Aging
±5 ppm max per year
Frequency Stability over Operating Temperature
±100 ppm Standard (see Crystal Part Number Guide for more details)
Drive Level
100µW to 500µW
Operating Temperature Range
0℃ ~+70℃ Standard (see Crystal Part Number Guide for more details)
Storage Temperature Range
-40℃ ~+85℃ Standard

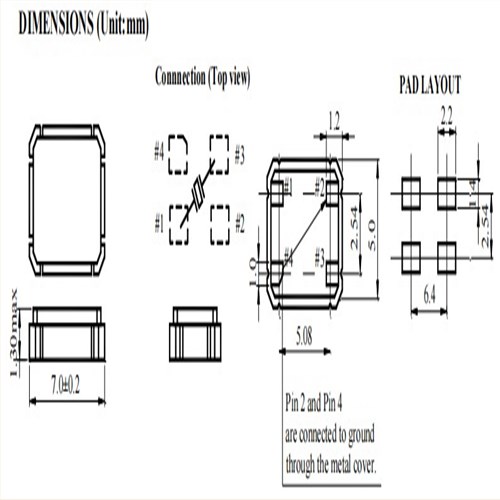

QCM25-21AF18pF-56.000MHz,7050mm,56MHz,QVS晶振,尺寸图
