32.768KHz,TZ1006A,TST晶体谐振器,3215mm,仪器设备晶振，台湾TST晶振，嘉硕晶振，型号：TZ1006A系列，频率为：32.768KHz，工作温度范围：-40℃至+85℃，小体积晶振尺寸：3.2x1.5mm水晶单元，两脚贴片晶振，手表晶体，无源晶振，SMD石英晶体，石英晶体谐振器，3215晶振。具有超小型，轻薄型，高性能，高品质，耐热及耐环境等特点。石英晶振，应用于：通讯设备晶振，钟表电子晶振，仪器仪表设备晶振，数字显示晶振，电视机晶振，电脑主板晶振，数码电子晶振，智能家居晶振等应用。

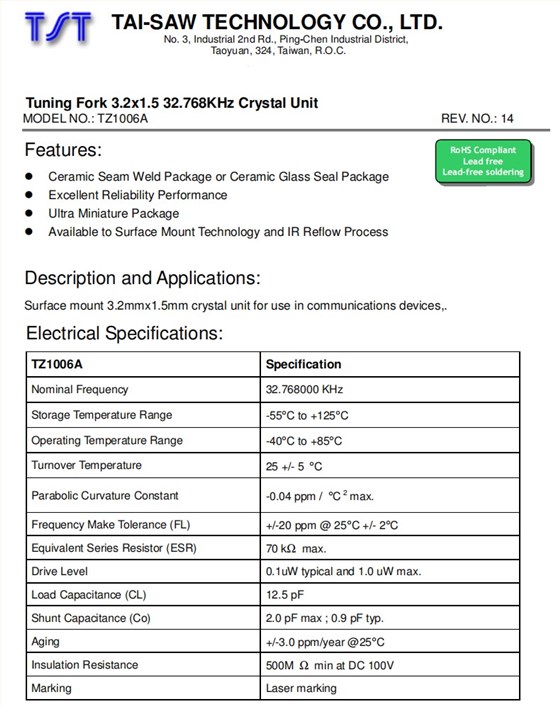

32.768KHz,TZ1006A,TST晶体谐振器,3215mm,仪器设备晶振,参数表
| TZ1006A | Specification |
| NominalFrequency | 32.768000KHz |
| Storage Temperature Range | -55°C to +125°C |
| Operating Temperature Range | -40℃ to +85℃ |
| Turnover Temperature | 25+/-5 ℃ |
| Parabolic curvature constant | -0.04 +/-0.01 ppm/℃2 |
| Frequency Make Tolerance (FL) | +/-20 ppm @ 25°C +/- 2°C |
| Equivalent Series Resistor (ESR) | 70KΩmax. |
| DriveLevel | 0.1uW typical and 1.0 uW max. |
| Load Capacitance (CL) | 12.5pF |
| Shunt Capacitance (Co) | 2.0 pF max ;0.9 pF typ. |
| Aging | +/-3.0 ppm/year @25°C |
| Insulation Resistance | 500M Ω min at DC 100V |
| Marking | LaserMarking |

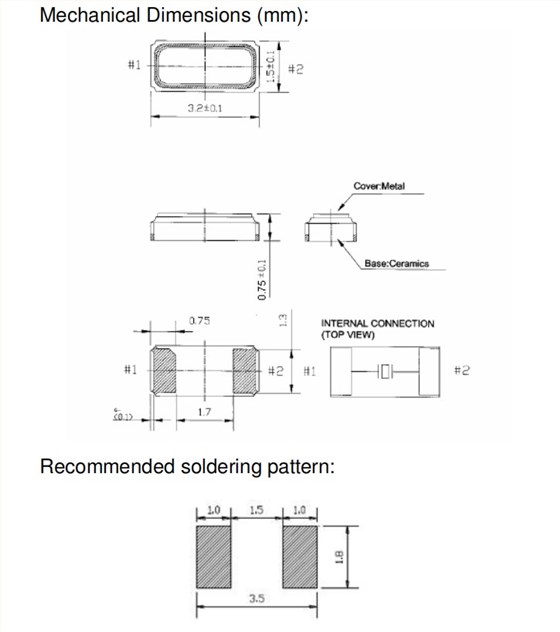

32.768KHz,TZ1006A,TST晶体谐振器,3215mm,仪器设备晶振,尺寸图
