CSM1Z-A5B2C5-60-24.0D18,24MHz,±50ppm,18pF,HC-49S

频率：24MHz

尺寸：12.9x4.7x4.3mm

CSM1Z-A5B2C5-60-24.0D18,24MHz,±50ppm,18pF,HC-49S，Cardinal卡迪纳尔晶振，美国进口晶振，CSM1晶振系列，编码为：CSM1Z-A5B2C5-60-24.0D18，频率24.000MHz，是一款椭圆形金属壳封装晶振，小体积外形尺寸12.9x4.7x4.3mm封装，两脚贴片晶振，石英贴片晶振，无源晶振，石英晶体谐振器，无铅环保晶振，SMD晶振，低轮廓表面安装MHz晶体，被广泛用于通讯设备晶振，无线网络晶振，蓝牙模块晶振，汽车电子晶振，导航仪，医疗设备，数码电子，物联网等应用.

订购热线：0755-29952090

CSM1Z-A5B2C5-60-24.0D18,24MHz,±50ppm,18pF,HC-49S，Cardinal卡迪纳尔晶振，美国进口晶振，CSM1晶振系列，编码为：CSM1Z-A5B2C5-60-24.0D18，频率24.000MHz，是一款椭圆形金属壳封装晶振，小体积外形尺寸12.9x4.7x4.3mm封装，两脚贴片晶振，石英贴片晶振，无源晶振，石英晶体谐振器，无铅环保晶振，SMD晶振，低轮廓表面安装MHz晶体，被广泛用于通讯设备晶振，无线网络晶振，蓝牙模块晶振，汽车电子晶振，导航仪，医疗设备，数码电子，物联网等应用.

CSM1Z-A5B2C5-60-24.0D18,24MHz,±50ppm,18pF,HC-49S，参数表

晶振规格	单位	MHZ贴片晶振频率范围	石英晶振基本条件
标准频率	f_nom	3.579545MHZ~80MHZ	标准频率
储存温度	T_stg	-40°C ~ +85°C	裸存
工作温度	T_use	-10°C ~ +70°C	标准温度
激励功率	DL	200μW Max.	推荐:1μW ~ 100μW
频率公差	f_— l	±50 × 10-6 (标准), (±15 × 10-6 ~ ±50 × 10-6 可用)	+25°C 对于超出标准的规格说明, 请联系我们以便获取相关的信息,http://jyyshkj.com
频率温度特征	f_tem	±30 × 10-6/-20°C ~ +70°C	超出标准的规格请联系我们.
负载电容	CL	18pF	不同负载电容要求,请联系我们.
串联电阻(ESR)	R1	如下表所示	-40°C~+85°C, DL = 100μW
频率老化	f_age	±5 × 10-6 / year Max.	+25°C,第一年

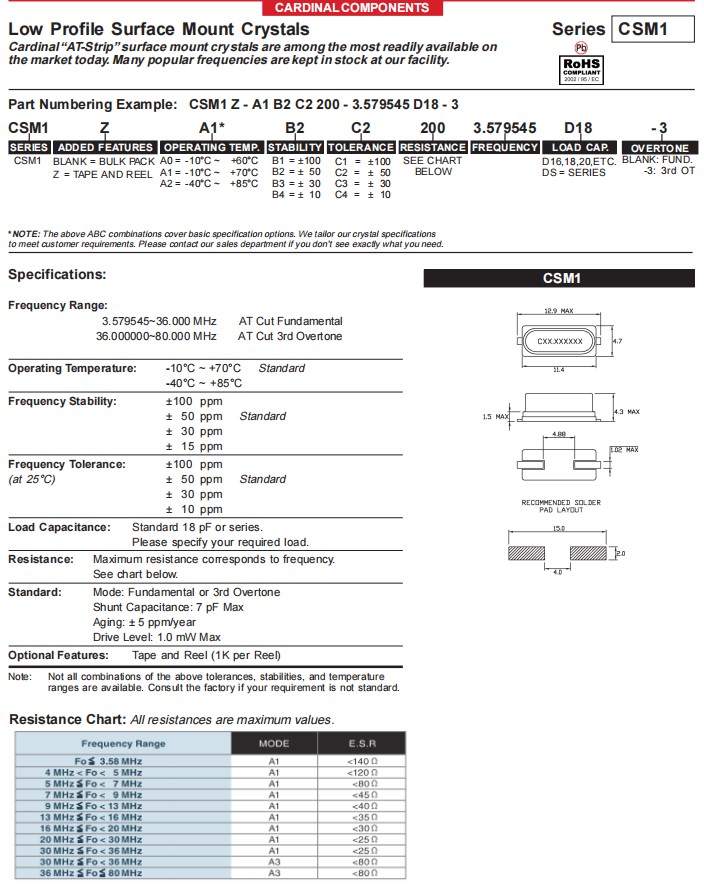

CSM1Z-A5B2C5-60-24.0D18,24MHz,±50ppm,18pF,HC-49S，尺寸图

进口石英晶振	厂家	型号	频率	频率稳定度	Description 参数
CSM1Z-A5B2C3-40-14.31818D18	Cardinal晶振	CSM1	14.31818MHz	±50ppm	CRYSTAL 14.31818MHZ 18PF SMD
CSM1Z-A5B2C5-60-24.0D18	Cardinal晶振	CSM1	24MHz	±50ppm	CRYSTAL 24.0000MHZ 18PF SMD
CSM1Z-A2B2C3-40-30.0D18	Cardinal晶振	CSM1	30MHz	±50ppm	CRYSTAL 30.0000MHZ 18PF SMD
CSM1Z-A0B2C3-50-22.1184D18	Cardinal晶振	CSM1	22.1184MHz	±50ppm	CRYSTAL 22.1184MHZ 18PF SMD
CSM1Z-A0B2C3-100-5.0D18	Cardinal晶振	CSM1	5MHz	±50ppm	CRYSTAL 5.0000MHZ 18PF SMD
CSM1Z-A5B2C5-40-14.7456D18	Cardinal晶振	CSM1	14.7456MHz	±50ppm	CRYSTAL 14.7456MHZ 18PF SMD
CSM1Z-A5B2C3-40-25.0D18-F	Cardinal晶振	CSM1	25MHz	±50ppm	CRYSTAL 25.0000MHZ 18PF SMD
CSM1Z-A0B2C3-50-16.0D18	Cardinal晶振	CSM1	16MHz	±50ppm	CRYSTAL 16.0000MHZ 18PF SMD
CSM1Z-A5B2C5-50-20.0D18	Cardinal晶振	CSM1	20MHz	±50ppm	CRYSTAL 20.0000MHZ 18PF SMD
CSM1Z-A1B2C3-90-8.0D18	Cardinal晶振	CSM1	8MHz	±50ppm	CRYSTAL 8.0000MHZ 18PF SMD
CSM1Z-A5B2C5-40-11.0592D18	Cardinal晶振	CSM1	11.0592MHz	±50ppm	CRYSTAL 11.0592MHZ 18PF SMD
CSM1Z-A0B2C3-50-15.360D18	Cardinal晶振	CSM1	15.36MHz	±50ppm	CRYSTAL 15.3600MHZ 18PF SMD
CSM1Z-A0B2C3-50-19.6608D18	Cardinal晶振	CSM1	19.6608MHz	±50ppm	CRYSTAL 19.6608MHZ 18PF SMD
CSM1Z-A5B2C3-40-14.7456D20	Cardinal晶振	CSM1	14.7456MHz	±50ppm	CRYSTAL 14.7456MHZ 20PF SMD
CSM1Z-A0B2C3-80-13.5D18	Cardinal晶振	CSM1	13.5MHz	±50ppm	CRYSTAL 13.5000MHZ 18PF SMD
CSM1Z-A0B2C3-50-16.257D18	Cardinal晶振	CSM1	16.257MHz	±50ppm	CRYSTAL 16.2570MHZ 18PF SMD
CSM1Z-A5B2C3-40-24.576D18	Cardinal晶振	CSM1	24.576MHz	±50ppm	CRYSTAL 24.5760MHZ 18PF SMD
CSM1Z-A0B2C3-50-16.000312D18	Cardinal晶振	CSM1	16.000312MHz	±50ppm	CRYSTAL 16.000312MHZ 18PF SMD
CSM1Z-A0B2C3-50-18.0D18	Cardinal晶振	CSM1	18MHz	±50ppm	CRYSTAL 18.0000MHZ 18PF SMD
CSM1Z-A0B2C3-200-3.6864D18	Cardinal晶振	CSM1	3.6864MHz	±50ppm	CRYSTAL 3.6864MHZ 18PF SMD
CSM1Z-A5B2C3-200-3.6864D18	卡迪纳尔晶振	CSM1	3.6864MHz	±50ppm	CRYSTAL 3.6864MHZ 18PF SMD
CSM1Z-A0B2C3-150-4.9152D18	Cardinal晶振	CSM1	4.915MHz	±50ppm	CRYSTAL 4.9150MHZ 18PF SMD
CSM1Z-A0B2C3-40-25.0D18	Cardinal晶振	CSM1	25MHz	±50ppm	CRYSTAL 25.0000MHZ 18PF SMD
CSM1Z-A5B2C5-70-10.0D18	Cardinal晶振	CSM1	10MHz	±50ppm	CRYSTAL 10.0000MHZ 18PF SMD
CSM1Z-A0B2C3-50-25.175D18	Cardinal晶振	CSM1	25.175MHz	±50ppm	CRYSTAL 25.1750MHZ 18PF SMD
CSM1Z-A5B2C3-120-6.144D18	Cardinal晶振	CSM1	6.144MHz	±50ppm	CRYSTAL 6.1440MHZ 18PF SMD
CSM1-A1B2C3-50-20.0D16	Cardinal晶振	CSM1	20MHz	±50ppm	CRYSTAL 20.0000MHZ 16PF SMD
CSM1Z-A5B2C5-150-3.6864D18	Cardinal晶振	CSM1	3.6864MHz	±50ppm	CRYSTAL 3.6864MHZ 18PF SMD
CSM1Z-A5B2C5-40-10.0D18	Cardinal晶振	CSM1	10MHz	±50ppm	CRYSTAL 10.0000MHZ 18PF SMD
CSM1Z-A0B2C3-50-27.0D18	Cardinal晶振	CSM1	27MHz	±50ppm	CRYSTAL 27.0000MHZ 18PF SMD
CSM1Z-A0B2C3-100-7.3728D18	Cardinal晶振	CSM1	7.3728MHz	±50ppm	CRYSTAL 7.3728MHZ 18PF SMD
CSM1Z-A0B2C3-100-6.144D18	Cardinal晶振	CSM1	6.144MHz	±50ppm	CRYSTAL 6.1440MHZ 18PF SMD
CSM1Z-A5B2C3-40-27.0D18-F	Cardinal晶振	CSM1	27MHz	±50ppm	CRYSTAL 27.0000MHZ 18PF SMD
CSM1Z-A5B2C3-120-7.3728D18	Cardinal晶振	CSM1	7.3728MHz	±50ppm	CRYSTAL 7.3728MHZ 18PF SMD
CSM1Z-A0B2C3-50-28.63636D18	Cardinal晶振	CSM1	28.63636MHz	±50ppm	CRYSTAL 28.63636MHZ 18PF SMD
CSM1Z-A5B2C3-60-9.216D18	Cardinal晶振	CSM1	9.216MHz	±50ppm	CRYSTAL 9.2160MHZ 18PF SMD
CSM1Z-A5B2C3-120-6.0D18	Cardinal晶振	CSM1	6MHz	±50ppm	CRYSTAL 6.0000MHZ 18PF SMD
CSM1Z-A5B2C5-120-7.3728D18	Cardinal晶振	CSM1	7.3728MHz	±50ppm	CRYSTAL 7.3728MHZ 18PF SMD
CSM1Z-A5B2C3-40-18.0D18	Cardinal晶振	CSM1	18MHz	±50ppm	CRYSTAL 18.0000MHZ 18PF SMD
CSM1Z-A0B2C3-50-24.0D18	Cardinal晶振	CSM1	24MHz	±50ppm	CRYSTAL 24.0000MHZ 18PF SMD
CSM1Z-A0B2C3-80-10.0D18	Cardinal晶振	CSM1	10MHz	±50ppm	CRYSTAL 10.0000MHZ 18PF SMD
CSM1Z-A5B2C5-150-4.9152D18	Cardinal晶振	CSM1	4.9152MHz	±50ppm	CRYSTAL 4.9152MHZ 18PF SMD
