FC4SDCBMF12.0-T1,12MHz,FOX通讯设备晶振,HC49SDLF晶体

频率：12MHz

尺寸：11.7x5.0mm

FC4SDCBMF12.0-T1,12MHz,FOX通讯设备晶振,HC49SDLF晶体，美国进口晶振，福克斯晶振，FOX晶振，型号：FC4SD Former HC49SDLF系列，编码为：FC4SDCBMF12.0-T1，频率为：12MHz，频率稳定性：±50ppm，频率容差：±30ppm，负载电容：20pF，工作温度范围：-20℃至+70℃，小体积晶振尺寸：11.7x5.0mm，两脚贴片晶振，石英晶振，无源晶振，SMD石英晶体，石英晶体谐振器，无铅环保晶振。被广泛用于：无线网络，蓝牙模块，车载控制器，医疗设备，物联网，智能家居等应用。

订购热线：0755-29952090

FC4SDCBMF12.0-T1,12MHz,FOX通讯设备晶振,HC49SDLF晶体,参数表

PARAMETERS	MAX (unless otherwise noted)
Frequency Range	12.000 MHz
Frequency Tolerance @ 25ºC	(See options on page 2)
Frequency Stability, ref @ 25ºC	(See options below)
Temperature Range
Operating (TOPR)	(see options below)
Storage (TSTG)	-55ºC ~ +125ºC
Shunt Capacitance (Co)	7.0pF
Load Capacitance (Cl)	(See options on page 2)
Drive Level	0.5 mW (0.1 mW Typical)
Aging per year	±3 PPM
Maximum Soldering Temp / Time	260ºC / 10 Seconds
Moisture Sensitivity Level (MSL)	1
Termination Finish	Sn/3.0Ag/0.5Cu
Seal Method	Resistance Weld
Lead (Pb) Free	Yes
RoHS Compliant	No Exemptions

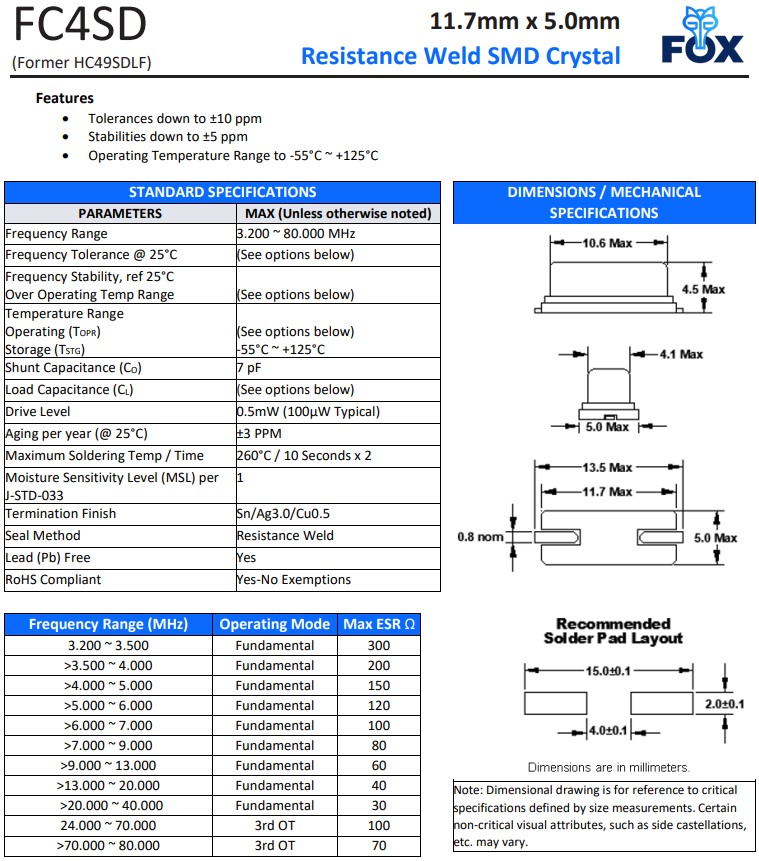

FC4SDCBMF12.0-T1,12MHz,FOX通讯设备晶振,HC49SDLF晶体,尺寸图

进口贴片晶振	品牌	型号	频率	频率稳定性	频率容差
FC4SDBBMF3.2-T1	Fox晶振	FC4SD	3.2 MHz	±50ppm	±50ppm
FC4SDCBGF24.0-T1	Fox晶振	FC4SD	24 MHz	±50ppm	±30ppm
FC4SDCBGF4.194304-T1	Fox晶振	FC4SD	4.194304 MHz	±50ppm	±30ppm
FC4SDCBGM8.0-T1	Fox晶振	FC4SD	8 MHz	±50ppm	±30ppm
FC4SDCBKF24.0-T1	Fox晶振	FC4SD	24 MHz	±50ppm	±30ppm
FC4SDCBLF3.579545-T1	Fox晶振	FC4SD	3.579545 MHz	±50ppm	±30ppm
FC4SDCBMF10.0-T1	Fox晶振	FC4SD	10 MHz	±50ppm	±30ppm
FC4SDCBMF11.0-T1	Fox晶振	FC4SD	11 MHz	±50ppm	±30ppm
FC4SDCBMF11.0592-T1	Fox晶振	FC4SD	11.0592 MHz	±50ppm	±30ppm
FC4SDCBMF12.0-T1	Fox晶振	FC4SD	12 MHz	±50ppm	±30ppm
FC4SDCBMF12.288-T1	Fox晶振	FC4SD	12.288 MHz	±50ppm	±30ppm
FC4SDCBMF14.31818-T1	Fox晶振	FC4SD	14.31818 MHz	±50ppm	±30ppm
FC4SDCBMF14.7456-T1	Fox晶振	FC4SD	14.7456 MHz	±50ppm	±30ppm
FC4SDCBMF16.0-T1	Fox晶振	FC4SD	16 MHz	±50ppm	±30ppm
FC4SDCBMF18.432-T1	Fox晶振	FC4SD	18.432 MHz	±50ppm	±30ppm
FC4SDCBMF19.6608-T1	Fox晶振	FC4SD	19.6608 MHz	±50ppm	±30ppm
FC4SDCBMF20.0-T1	Fox晶振	FC4SD	20 MHz	±50ppm	±30ppm
FC4SDCBMF22.1184-T1	Fox晶振	FC4SD	22.1184 MHz	±50ppm	±30ppm
FC4SDCBMF24.0-T1	Fox晶振	FC4SD	24 MHz	±50ppm	±30ppm
FC4SDCBMF24.576-T1	Fox晶振	FC4SD	24.576 MHz	±50ppm	±30ppm
FC4SDCBMF25.0-T1	Fox晶振	FC4SD	25 MHz	±50ppm	±30ppm
FC4SDCBMF27.0-T1	Fox晶振	FC4SD	27 MHz	±50ppm	±30ppm
FC4SDCBMF3.579545-T1	Fox晶振	FC4SD	3.579545 MHz	±50ppm	±30ppm
FC4SDCBMF3.6864-T1	Fox晶振	FC4SD	3.6864 MHz	±50ppm	±30ppm
FC4SDCBMF4.0-T1	Fox晶振	FC4SD	4 MHz	±50ppm	±30ppm
FC4SDCBMF4.9152-T1	Fox晶振	FC4SD	4.9152 MHz	±50ppm	±30ppm
FC4SDCBMF5.0-T1	Fox晶振	FC4SD	5 MHz	±50ppm	±30ppm
