HCMOS振荡器625L3C032M00000适用于以太网应用

2023-05-18 16:14:33

时钟振荡器是频率控制产品的核心,CTS晶振提供业界最广泛的石英晶体振荡器(XO)。CTS晶振CTS625系列,是一款小体积晶振尺寸2.5x2.0mm四脚贴片晶振,有源晶振,石英晶体振荡器,石英晶振,是一种低成本、超低压时钟振荡器,支持HCMOS输出。该贴片晶振采用了最新的IC技术,具有优异的稳定性和较低的相位抖动性能。应用:物联网,微控制器和FPGA,无线通信,网络设备,数据通信,计算机和外围设备,以太网/GbE/SyncE,便携式设备,测试和测量。HCMOS振荡器625L3C032M00000适用于以太网应用

625

进口有源晶体 品牌 型号 频率 频率稳定度 包装/封装
625L3I006M00000 CTS晶振 625 6MHz ±50ppm 4-SMD, No Lead
625L3C040M00000 CTS晶振 625 40MHz ±50ppm 4-SMD, No Lead
625L3I004M00000 CTS晶振 625 4MHz ±50ppm 4-SMD, No Lead
625L3I003M68640 CTS晶振 625 3.6864MHz ±50ppm 4-SMD, No Lead
625L3I013M00000 CTS晶振 625 13MHz ±50ppm 4-SMD, No Lead
625L3I032M00000 CTS晶振 625 32MHz ±50ppm 4-SMD, No Lead
625M3I014M31818 CTS晶振 625 14.31818MHz ±50ppm 4-SMD, No Lead
625M3I025M00000 CTS晶振 625 25MHz ±50ppm 4-SMD, No Lead
625M3I040M00000 CTS晶振 625 40MHz ±50ppm 4-SMD, No Lead
625M3I050M00000 CTS晶振 625 50MHz ±50ppm 4-SMD, No Lead
625L3I014M31818 CTS晶振 625 14.31818MHz ±50ppm 4-SMD, No Lead
625L3I016M00000 CTS晶振 625 16MHz ±50ppm 4-SMD, No Lead
625M3I024M00000 CTS晶振 625 24MHz ±50ppm 4-SMD, No Lead
625L3I010M00000 CTS晶振 625 10MHz ±50ppm 4-SMD, No Lead
625L3I007M37280 CTS晶振 625 7.3728MHz ±50ppm 4-SMD, No Lead
625L3C024M57600 CTS晶振 625 24.576MHz ±50ppm 4-SMD, No Lead
625L3I030M00000 CTS晶振 625 30MHz ±50ppm 4-SMD, No Lead
625L3C024M00000 CTS晶振 625 24MHz ±50ppm 4-SMD, No Lead
625M3I027M00000 CTS晶振 625 27MHz ±50ppm 4-SMD, No Lead
625L3I025M00000 CTS晶振 625 25MHz ±50ppm 4-SMD, No Lead
625M3I020M00000 CTS晶振 625 20MHz ±50ppm 4-SMD, No Lead
625L3C050M00000 CTS晶振 625 50MHz ±50ppm 4-SMD, No Lead
625L3I008M00000 CTS晶振 625 8MHz ±50ppm 4-SMD, No Lead
625L3C012M00000 CTS晶振 625 12MHz ±50ppm 4-SMD, No Lead
625L3C020M00000 CTS晶振 625 20MHz ±50ppm 4-SMD, No Lead
625L3C026M00000 CTS晶振 625 26MHz ±50ppm 4-SMD, No Lead
625L3C003M68640 CTS晶振 2520晶振 3.6864MHz ±50ppm 4-SMD, No Lead
625L3C004M00000 CTS晶振 625 4MHz ±50ppm 4-SMD, No Lead
625L3C006M00000 CTS晶振 625 6MHz ±50ppm 4-SMD, No Lead
625L3C007M37280 CTS晶振 625 7.3728MHz ±50ppm 4-SMD, No Lead
625L3C008M00000 CTS晶振 625 8MHz ±50ppm 4-SMD, No Lead
625L3C010M00000 CTS晶振 625 10MHz ±50ppm 4-SMD, No Lead
625L3C013M00000 CTS晶振 625 13MHz ±50ppm 4-SMD, No Lead
625L3C014M31818 CTS晶振 625 14.31818MHz ±50ppm 4-SMD, No Lead
625L3C016M00000 CTS晶振 625 16MHz ±50ppm 4-SMD, No Lead
625L3C030M00000 CTS晶振 625 30MHz ±50ppm 4-SMD, No Lead
625L3C032M00000 CTS晶振 625 32MHz ±50ppm 4-SMD, No Lead
625M3I024M57600 CTS晶振 625 24.576MHz ±50ppm 4-SMD, No Lead
625M3I029M49120 CTS晶振 625 29.4912MHz ±50ppm 4-SMD, No Lead
625L3C025M00000 CTS晶振 625 25MHz ±50ppm 4-SMD, No Lead
625L3I003M20000 CTS晶振 625 3.2MHz ±50ppm 4-SMD, No Lead
625L3I012M00000 CTS晶振 625 12MHz ±50ppm 4-SMD, No Lead
625L3I024M00000 CTS晶振 625 24MHz ±50ppm 4-SMD, No Lead
625L3I027M00000 CTS晶振 625 27MHz ±50ppm 4-SMD, No Lead
625L3I029M49120 CTS晶振 625 29.4912MHz ±50ppm 4-SMD, No Lead
625L3C048M00000 CTS晶振 625 48MHz ±50ppm 4-SMD, No Lead
625L3I048M00000 CTS晶振 625 48MHz ±50ppm 4-SMD, No Lead
625L3I050M00000 CTS晶振 625 50MHz ±50ppm 4-SMD, No Lead
HCMOS振荡器625L3C032M00000适用于以太网应用

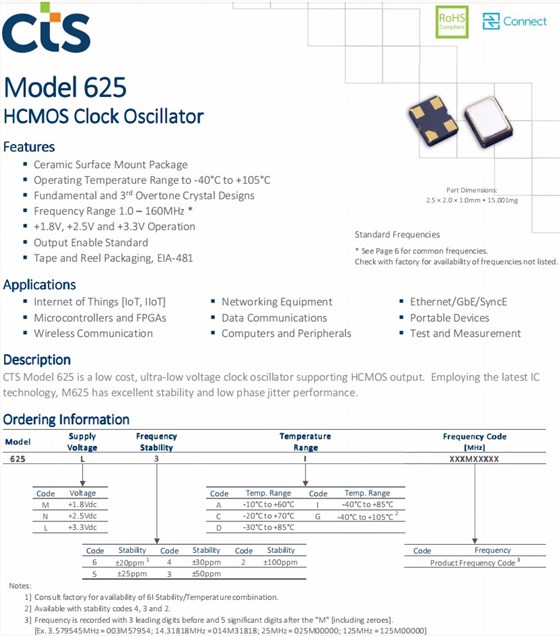

625系列晶振特征:

陶瓷表面安装封装
工作温度范围为-40°C至+105°C
基础和第三序曲水晶设计
频率范围:1.0MHz–160MHz石英水晶振荡子
+1.8V、+2.5V和+3.3V操作
输出启用标准

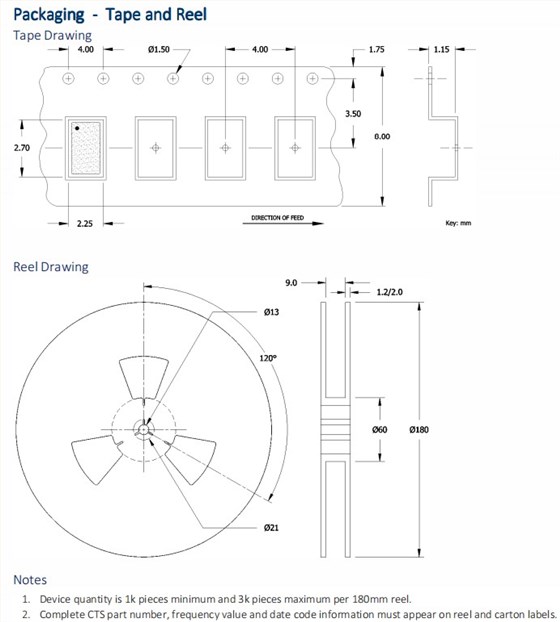

磁带和卷轴包装,EIA-481

625图
