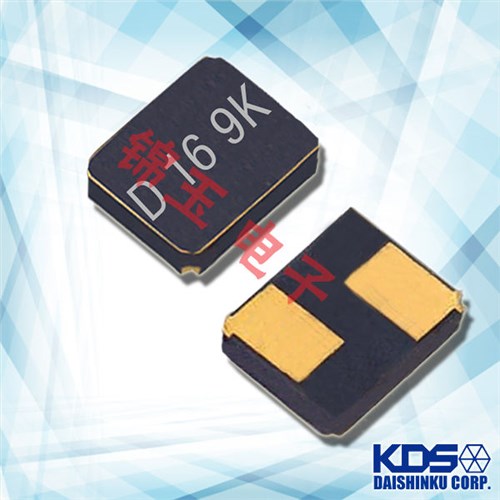

KDS高精度晶振,1ZCT24000BD0A,DSX320GE发动机晶振，尺寸3.2x2.5mm，频率24MHZ，日本大真空晶振，日本进口晶振，进口无源晶振，3225mm贴片晶振，陶瓷晶振，轻薄型晶振，无源晶振，24MHZ无源晶振，无源贴片晶振，SMD晶振，SMD晶体谐振器，水晶振动子，高精度晶振，高可靠晶振，高质量晶振，低损耗晶振，低功耗晶振，低耗能晶振，车身控制专用晶振，发动机晶振，ABS晶振，无线设备晶振，多媒体设备晶振，视听设备晶振，具有超高的可靠性能。
SMD晶体产品非常适合用于ECU (发动机、车身控制)、安全关系、车身关系、ABS、EPS等，还可以应用多媒体设备，视听设备等领域。KDS高精度晶振,1ZCT24000BD0A,DSX320GE发动机晶振.
KDS高精度晶振,1ZCT24000BD0A,DSX320GE发动机晶振参数表
| 型号名称 | DSX320GE | ||||
|---|---|---|---|---|---|
| 频率范围 | 7.9~9.8MHz | 9.8~11MHz | 11~12MHz | 24MHz | 27~64MHz |
| 泛音阶 | 功能 | ||||
| 负载容量 | 8pF，10pF，12pF | ||||
| 激励电平 | 10μW(200μW max.) | ||||
| 频率允许偏差 | ±30×10-6( at 25℃) | ||||
| 串联电阻 | 400ω最大。 | 200ω最大。 | 150ω最大。 | 120ω最大。 | 100ω最大。 |
| 频率温度特性 | ±100×10-6/-40 + 125℃( ref.to25℃) | ||||
| 保存温度范围 | 40~+150℃ | ||||
| 可靠性规格 | AEC-Q200 | ||||
| 包装单位(1) | 3000pcs./reel(φ180 ) | ||||

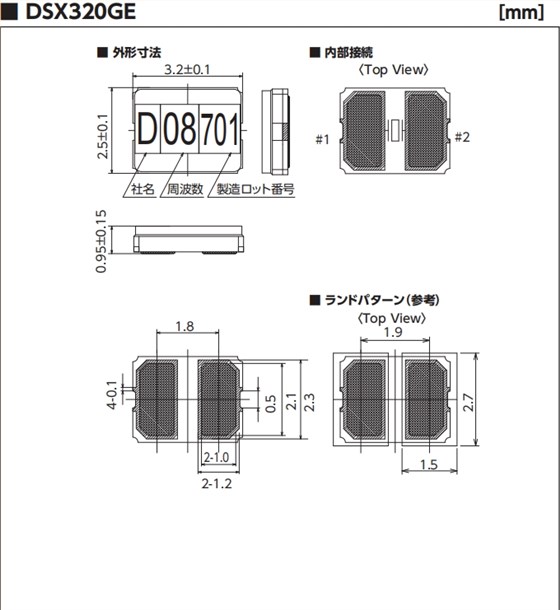

KDS高精度晶振,1ZCT24000BD0A,DSX320GE发动机晶振 尺寸
KDS高精度晶振,1ZCT24000BD0A,DSX320GE发动机晶振
陶瓷晶振产品特点：
小型薄型轻量表面安装型石英振子厚度0.95mm
耐热性优异，高精度、高可靠性
支持从7.9MHz的低频到64MHz的广泛频率
耐冷热循环性(焊锡破裂) :支持3,000个循环[-40，+125°C]
符合AEC-Q200标准
| 品牌 | 原厂代码 | 型号 | 尺寸 | 频率 | 负载/电压 | 精度 | 温度 |
| KDS晶振 | 1ZCB26000AB0R | DSX221G | 2520 | 26.000M | |||
| KDS晶振 | 1ZCT24000BD0A | DSX320GE | 3225 | 24.000M | |||
| KDS晶振 | 1XTV36864HBA | DSA321SCM | 3225 | 36.864M | |||
| KDS晶振 | 1CG12288EE1C | DSX630G | 6035 | 12.288M | |||
| KDS晶振 | 1ZNA16000AB0P | DSX221G | 2520 | 16.000M | 9PF | 10ppm | |
| KDS晶振 | 1ZNA32000BB0B | DSX221G | 2520 | 32.000M | 12PF | 15ppm | |
| KDS晶振 | ZC13727 | DSX221SH | 2520 | 24.000M | 10PF | 30ppm | |
| KDS晶振 | 1ZN326000AB0A | DSX221SH | 2520 | 26.000M | 7PF | 10PPM | |
| KDS晶振 | 1C208000BC0R | DSX321G | 3225 | 8.000M | 12PF | 20PPM | |
| KDS晶振 | 7AD00800A1C | DSX321G | 3225 | 8.000M | 12PF | 20PPM | |
| KDS晶振 | 1C208000CE0H | DSX321G | 3225 | 8.000M | 10PF | 20PPM | |
| KDS晶振 | 1C208000EE0BL | DSX321G | 3225 | 8.000M | 12PF | 20PPM | 40~125度 |
| KDS晶振 | 1ZCM080000EE0A汽车 | DSX320G | 3225 | 8.000M | 8PF | 20PPM | 40~85度 |
| KDS晶振 | 1C208000EZ0G汽车 | DSX321G | 3225 | 8.000M | 8PF | 30PPM | 40~85度 |
| KDS晶振 | 1N210000EE0X | DSX321G | 3225晶振 | 10.000M | 10PF | ||
| KDS晶振 | 7AD01200A1R | DSX321G | 3225 | 12.000M | 8PF | 20ppm | |
| KDS晶振 | 1N212000BC0AK | DSX321G | 3225 | 12.000M | 10PF | 20ppm | |
| KDS晶振 | 1C213080CC0A | DSX321G | 3225 | 13.080M | 8PF | ||
| KDS晶振 | 1C232000ABOV | DSX321G | 3225 | 32.000M | 6PF | 10PPM | |
| KDS晶振 | 1N254000BB0M | DSX321G | 3225 | 54.000M | 19PF | 15PPM | |
| KDS晶振 | 1ZCM12000BC0A | DSX320G | 3225 | 12.000M | 8PF | ||
| KDS晶振 | 1C216000EE0AW | DSX321G | 3225 | 16.000M | 8PF | 50PPM | |
| KDS晶振 | 1N216000EE0BE | DSX321G | 3225 | 16.000M | 8PF | 50PPM | |
| KDS晶振 | 1C216000BF0B | DSX321G | 3225 | 16.000M | |||
| KDS晶振 | 1C319200AA0A | DSX321G | 3225 | 19.200M | 8PF | 10PPM | |
| KDS晶振 | 1C220000AA0K | DSX321G | 3225 | 20.000M | |||
| KDS晶振 | 1C224000BE0K | DSX321G | 3225 | 24.000M | |||
| KDS晶振 | 1N225000BC0CT | DSX321G | 3225 | 25.000M | 7.5PF | ||
| KDS晶振 | 1N226000AA0G | DSX321G | 3225 | 26.000M | 12.5PF | 10ppm | |
| KDS晶振 | 1N226000AA0E | DSX321G | 3225 | 26.000M | 8.1PF | 10PPM | |
| KDS晶振 | 1C214745CE0E | DSX321G | 3225 | 14.7456M | |||
| KDS晶振 | 1C224576AC0A | DSX321G | 3225 | 24.576M | |||
| KDS晶振 | 1N226000AB0M | DSX321G | 3225 | 26.000M | 8PF | 8PPM | |
| KDS晶振 | 1N226000AB0J | DSX321G | 3225 | 26.000M | 11PF | 10PPM | |
| KDS晶振 | 1C226000BE0D | DSX321G | 3225 | 26.000M | |||
| KDS晶振 | 1N227000AB0N | DSX321G | 3225 | 27.000M | |||
| KDS晶振 | 1C233333BC0G | DSX321G | 3225 | 33.333333M | |||
| KDS晶振 | 1N340000LA0B | DSX321G | 3225 | 40.000M | |||
| KDS晶振 | 1C340000LA0A | DSX321G | 3225 | 40.000M | 8PF | ||
| KDS晶振 | 1C262400BK0A | DSX321G | 3225 | 62.4M | |||
| KDS晶振 | 1N227000EE0L | DSX321G | 3225 | 27.000M | 9PF | 50ppm | |
| KDS晶振 | 1BASAMPLE | DSX321G | 3225 | 27.000M | 9PF | 50ppm | |
| KDS晶振 | 1C227000BBAH | DSX321G | 3225 | 27.000M | 11PF | 12ppm | |
| KDS晶振 | 1N227000BB0AK | DSX321G | 3225 | 27.000M | 11PF | 12PPM | |
| KDS晶振 | 1C228322EE0D | DSX321G | 3225 | 28.322M | 10PF | 50PPM | |
| KDS晶振 | 1N230000AB0C | DSX321G | 3225 | 30.000M | 10PF | 30PPM | |
| KDS晶振 | 1C338400AA0B | DSX321G | 3225 | 38.400M | 10PF | 10PPM | |
| KDS晶振 | 1C241600CDAA | DSX321G | 3225 | 41.6M | 10PF | 30PPM | |
| KDS晶振 | 1C254000CC0C | DSX321G | 3225 | 54.000M | 10PF | 30PPM | |
| KDS晶振 | 1N232000AA0N | DSX321G | 3225 | 32.000M | 12PF | ||
| KDS晶振 | 1N240000AB0J | DSX321G | 3225 | 40.000M | 15PF | 15PPM | 40~125度 |
| KDS晶振 | 1C240000AB0G | DSX321G | 3225 | 40.000M | 10PF | 10PPM | |
| KDS晶振 | X4S013000DA1H-W | HSX421S | 4025 | 13.000M | 10PF | 20ppm | |
| KDS晶振 | X1H013000B81H | HSX531S | 5032 | 13.000M | 8PF | 10ppm | |
| KDS晶振 | 1C736864CC1A | DSX530GA | 5032 | 36.864M | 8PF | 25PPM | |
| KDS晶振 | 1HX12288CD1A | DSX840GA | 8045 | 12.288M | 20PF | 30PPM | |
| KDS晶振 | 1CX40000EE1O | DSX840GA | 8045 | 40.000M | 18PF | 50ppm |
