CRYSTEK通信设备晶振,C3292-12.352,数字视频应用晶振，美国进口晶振，CRYSTEK瑞斯克晶振，C32xx系列晶振，编码为：C3292-12.352，频率为：12.352MHz，小体积晶振尺寸：7.0x5.0mm晶振，四脚贴片晶振，HCMOS时钟振荡器，有源晶振，石英晶体振荡器，SMD晶振，石英晶振。具有超小型，轻薄型，超低抖动，低相位噪声，高精度，高性能，高品质等特点。应用范围：数字视频，超声波/SDH/DWDM，存储区域网络，宽带接入以太网、无线蓝牙，网络设备晶振，千兆以太网，物联网等应用。
型号C32xx/C39xx系列5070晶振，是一个1.544 MHz到100.000 MHz的HCMOS时钟振荡器，工作电压5.0V。该振荡器利用基本或高Q第三泛音晶体设计，提供非常低的抖动和相位噪声。输出信号中没有子谐波。
CRYSTEK通信设备晶振,C3292-12.352,数字视频应用晶振,参数表
| Frequency Range: | 12.352 MHz |
| Frequency Stability Options: | ±20*, ±25, ±50, ±100 (ppm) |
| Temperature Range: (standard) | 0°C to +70°C |
| (Option “M”) | -20°C to +70°C |
| (Option “E”*) | -40°C to +85°C |
| Storage Temperature: | -45°C to 90°C |
| Input Voltage: | 5.0V ±0.5V |
| Input Current: | 60mA Max |
| Standby Current: | 10uA Max |
| Output: | HCMOS |
| Symmetry: | |
| (Standard “2”) | 40/60% Max @ 50% Vdd |
| (Option “9”) | 45/55% Max @ 50% Vdd |
| Rise/Fall Time: | 6ns Max @ 20% to 80% Vdd |
| Logic: | "0" = 10% Vdd Max |
| "1" = 90% Vdd Min | |
| Disable Time: | 200ns Max |
| Start-up Time: | 10ms Max |
| Load: | 30pF Max |
| Jitter RMS: 12kHz~20MHz | 0.5ps Typical, 1ps Max |
| Sub-harmonics: | None |
| Aging: |
<3ppm 1styear, <1ppm every year thereafter |

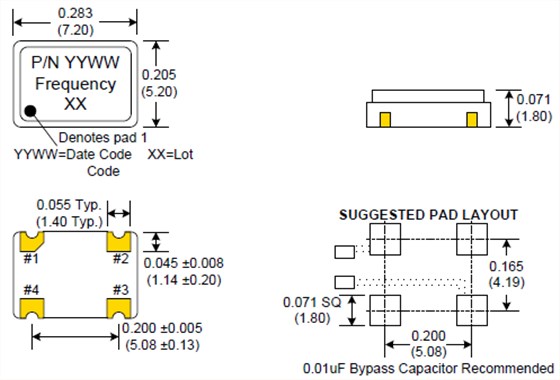

CRYSTEK通信设备晶振,C3292-12.352,数字视频应用晶振,尺寸图
CRYSTEK通信设备晶振,C3292-12.352,数字视频应用晶振
石英晶体振荡器（以下简称晶振）是利用石英晶体压电效应而制成的器件，它的作用是输出高精度和高稳定度的脉冲信号，为整个电路提供时序基准。我们知道，现在电路中有越来越多的时序电路，它们之间的协同运行必须要有一个时间基准，才能统一一致的行动，就像电视剧里特种行动小队在出发前都要对下表一样，晶振在系统中起的作用就如同队长的手表，它如果稳定性或准确性不好的话，那整个系统就会错误频出，故障率很高。所以又把晶振称为单板的“心脏”。
| 进口贴片晶振 | 品牌 | 型号 | 类型 | 频率 | 频率稳定度 | 工作温度 |
| C3292-1.843200 | Crystek晶振 | C3292 | XO (Standard) | 1.8432MHz | ±50ppm | 0°C ~ 70°C |
| C3292-10.000 | Crystek晶振 | C3292 | XO (Standard) | 10MHz | ±50ppm | 0°C ~ 70°C |
| C3292-12.000 | Crystek晶振 | C3292 | XO (Standard) | 12MHz | ±50ppm | 0°C ~ 70°C |
| C3292-12.288 | Crystek晶振 | C3292 | XO (Standard) | 12.288MHz | ±50ppm | 0°C ~ 70°C |
| C3292-12.352 | Crystek晶振 | C3292 | XO (Standard) | 12.352MHz | ±50ppm | 0°C ~ 70°C |
| C3292-14.318180 | Crystek晶振 | C3292 | XO (Standard) | 14.31818MHz | ±50ppm | 0°C ~ 70°C |
| C3292-15.360 | Crystek晶振 | C3292 | XO (Standard) | 15.36MHz | ±50ppm | 0°C ~ 70°C |
| C3292-16.0000 | Crystek晶振 | C3292 | XO (Standard) | 16MHz | ±50ppm | 0°C ~ 70°C |
| C3292-16.384 | Crystek晶振 | C3292 | XO (Standard) | 16.384MHz | ±50ppm | 0°C ~ 70°C |
| C3292-18.432 | Crystek晶振 | C3292 | XO (Standard) | 18.432MHz | ±50ppm | 0°C ~ 70°C |
| C3292-19.440 | Crystek晶振 | C3292 | XO (Standard) | 19.44MHz | ±50ppm | 0°C ~ 70°C |
| C3292-2.048 | Crystek晶振 | C3292 | XO (Standard) | 2.048MHz | ±50ppm | 0°C ~ 70°C |
| C3292-20.000 | Crystek晶振 | C3292 | XO (Standard) | 20MHz | ±50ppm | 0°C ~ 70°C |
| C3292-20.480 | Crystek晶振 | C3292 | XO (Standard) | 20.48MHz | ±50ppm | 0°C ~ 70°C |
| C3292-24.000 | Crystek晶振 | C3292 | XO (Standard) | 24MHz | ±50ppm | 0°C ~ 70°C |
| C3292-24.704 | Crystek晶振 | C3292 | XO (Standard) | 24.704MHz | ±50ppm | 0°C ~ 70°C |
| C3292-25.000 | Crystek晶振 | C3292 | XO (Standard) | 25MHz | ±50ppm | 0°C ~ 70°C |
| C3292-3.686400 | Crystek晶振 | C3292 | XO (Standard) | 3.6864MHz | ±50ppm | 0°C ~ 70°C |
| C3292-30.000 | Crystek晶振 | C3292 | XO (Standard) | 30MHz | ±50ppm | 0°C ~ 70°C |
| C3292-32.000 | Crystek晶振 | C3292 | XO (Standard) | 32MHz | ±50ppm | 0°C ~ 70°C |
| C3292-32.768 | Crystek晶振 | C3292 | XO (Standard) | 32.768MHz | ±50ppm | 0°C ~ 70°C |
| C3292-33.000 | Crystek晶振 | C3292 | XO (Standard) | 33MHz | ±50ppm | 0°C ~ 70°C |
| C3292-33.333 | Crystek晶振 | C3292 | XO (Standard) | 33.333MHz | ±50ppm | 0°C ~ 70°C |
| C3292-35.000 | Crystek晶振 | C3292 | XO (Standard) | 35MHz | ±50ppm | 0°C ~ 70°C |
| C3292-4.000 | Crystek晶振 | C3292 | XO (Standard) | 4MHz | ±50ppm | 0°C ~ 70°C |
| C3292-40.000 | Crystek晶振 | C3292 | XO (Standard) | 40MHz | ±50ppm | 0°C ~ 70°C |
| C3292-44.736 | Crystek晶振 | C3292 | XO (Standard) | 44.736MHz | ±50ppm | 0°C ~ 70°C |
| C3292-45.000 | Crystek晶振 | C3292 | XO (Standard) | 45MHz | ±50ppm | 0°C ~ 70°C |
| C3292-49.152 | Crystek晶振 | C3292 | XO (Standard) | 49.152MHz | ±50ppm | 0°C ~ 70°C |
| C3292-50.000 | Crystek晶振 | C3292 | XO (Standard) | 50MHz | ±50ppm | 0°C ~ 70°C |
| C3292-51.840 | Crystek晶振 | C3292 | XO (Standard) | 51.84MHz | ±50ppm | 0°C ~ 70°C |
| C3292-6.176 | Crystek晶振 | C3292 | XO (Standard) | 6.176MHz | ±50ppm | 0°C ~ 70°C |
| C3292-7.372800 | Crystek晶振 | C3292 | XO (Standard) | 7.3728MHz | ±50ppm | 0°C ~ 70°C |
| C3292-8.000 | Crystek晶振 | C3292 | XO (Standard) | 8MHz | ±50ppm | 0°C ~ 70°C |
| C3292-60.000 | Crystek晶振 | C3292 | XO (Standard) | 60MHz | ±50ppm | 0°C ~ 70°C |
| C3292-64.000 | Crystek晶振 | C3292 | XO (Standard) | 64MHz | ±50ppm | 0°C ~ 70°C |
| C3292-66.666600 | Crystek晶振 | C3292 | XO (Standard) | 66.6666MHz | ±50ppm | 0°C ~ 70°C |
| C3292-75.000 | Crystek晶振 | C3292 | XO (Standard) | 75MHz | ±50ppm | 0°C ~ 70°C |
| C3292-80.000 | Crystek晶振 | C3292 | XO (Standard) | 80MHz | ±50ppm | 0°C ~ 70°C |
| CE3292-1.544 | Crystek晶振 | C3292 | XO (Standard) | 1.544MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-1.843200 | Crystek晶振 | C3292 | XO (Standard) | 1.8432MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-10.000 | Crystek晶振 | C3292 | XO (Standard) | 10MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-12.000 | Crystek晶振 | C3292 | XO (Standard) | 12MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-12.288 | Crystek晶振 | C3292 | XO (Standard) | 12.288MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-12.352 | Crystek晶振 | C3292 | XO (Standard) | 12.352MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-14.318180 | Crystek晶振 | C3292 | XO (Standard) | 14.31818MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-15.360 | Crystek晶振 | C3292 | XO (Standard) | 15.36MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-16.0000 | Crystek晶振 | C3292 | XO (Standard) | 16MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-16.384 | Crystek晶振 | C3292 | XO (Standard) | 16.384MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-18.432 | Crystek晶振 | C3292 | XO (Standard) | 18.432MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-19.440 | Crystek晶振 | C3292 | XO (Standard) | 19.44MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-2.048 | Crystek晶振 | C3292 | XO (Standard) | 2.048MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-20.000 | Crystek晶振 | C3292 | XO (Standard) | 20MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-20.480 | Crystek晶振 | C3292 | XO (Standard) | 20.48MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-24.000 | Crystek晶振 | C3292 | XO (Standard) | 24MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-24.704 | Crystek晶振 | C3292 | XO (Standard) | 24.704MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-25.000 | Crystek晶振 | C3292 | XO (Standard) | 25MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-3.686400 | Crystek晶振 | C3292 | XO (Standard) | 3.6864MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-30.000 | Crystek晶振 | C3292 | XO (Standard) | 30MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-32.000 | Crystek晶振 | C3292 | XO (Standard) | 32MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-32.768 | Crystek晶振 | C3292 | XO (Standard) | 32.768MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-33.000 | Crystek晶振 | C3292 | XO (Standard) | 33MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-33.333 | Crystek晶振 | C3292 | XO (Standard) | 33.333MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-35.000 | Crystek晶振 | C3292 | XO (Standard) | 35MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-4.000 | Crystek晶振 | C3292 | XO (Standard) | 4MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-40.000 | Crystek晶振 | C3292 | XO (Standard) | 40MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-6.176 | Crystek晶振 | C3292 | XO (Standard) | 6.176MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-7.372800 | Crystek晶振 | C3292 | XO (Standard) | 7.3728MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-8.000 | Crystek晶振 | C3292 | XO (Standard) | 8MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-44.736 | Crystek晶振 | C3292 | XO (Standard) | 44.736MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-45.000 | Crystek晶振 | C3292 | XO (Standard) | 45MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-49.152 | Crystek晶振 | C3292 | XO (Standard) | 49.152MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-50.000 | Crystek晶振 | C3292 | XO (Standard) | 50MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-51.840 | Crystek晶振 | C3292 | XO (Standard) | 51.84MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-60.000 | Crystek晶振 | C3292 | XO (Standard) | 60MHz | ±50ppm | -40°C ~ 85°C |
| C3292-1.544 | Crystek晶振 | C3292 | XO (Standard) | 1.544MHz | ±50ppm | 0°C ~ 70°C |
| CE3292-64.000 | Crystek晶振 | C3292 | XO (Standard) | 64MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-66.666600 | Crystek晶振 | C3292 | XO (Standard) | 66.6666MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-75.000 | Crystek晶振 | C3292 | XO (Standard) | 75MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-80.000 | Crystek晶振 | C3292 | XO (Standard) | 80MHz | ±50ppm | -40°C ~ 85°C |
| C3292-100.000 | Crystek晶振 | C3292 | XO (Standard) | 100MHz | ±50ppm | 0°C ~ 70°C |
| C3292-106.250 | Crystek晶振 | C3292 | XO (Standard) | 106.25MHz | ±50ppm | 0°C ~ 70°C |
| CE3292-100.000 | Crystek晶振 | C3292 | XO (Standard) | 100MHz | ±50ppm | -40°C ~ 85°C |
| CE3292-106.250 | Crystek晶振 | C3292 | XO (Standard) | 106.25MHz | ±50ppm | -40°C ~ 85°C |
