32.768K/7pF/Q-SC16S0320570CADF/SC-16S/1610mm智能手机晶振

产品简介

32.768K/7pF/Q-SC16S0320570CADF/SC-16S/1610mm智能手机晶振，日本进口晶振，Seiko精工晶振，型号SC-16S，编码为Q-SC16S0320570CADF，是一款小体积晶振尺寸1.6x1.0mm封装，两脚贴片晶振，无源晶振，32.768KHz晶振，石英晶体谐振器，石英晶振，无铅环保晶振，超小型，轻薄型石英晶振，适用于高密度安装的SMD型，出色的耐冲击性，耐热性，完全无Pb，符合欧盟RoHS指令的产品，内置可靠性高的光刻加工的石英振子，应用于：智能手机、可穿戴设备、各种模块、各种微机子时钟等。

产品详情

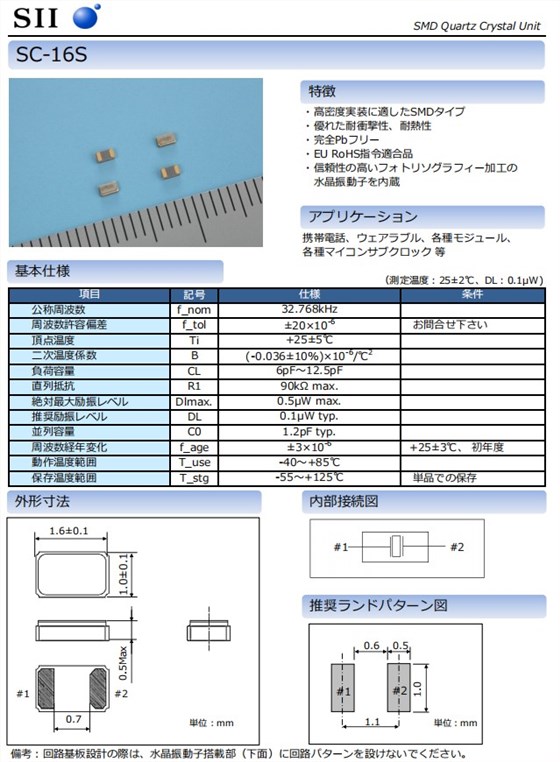

32.768K/7pF/Q-SC16S0320570CADF/SC-16S/1610mm智能手机晶振，参数表

型号	SC-16S
公称周波数	f_nom	32 .768kHz
周波数許容偏差	f_tol	±20×10-6
頂点温度	Ti	+25±5℃
二次温度保数	B	(-0 .030±10%)×10-6/℃2
負荷容量	CL	6pF~12 .5pF
直列抵抗	R1	90kΩ max .
绝对最大激励水平	Dlmax.	0.5μW max .
推荐激励水平	DL	0.1μW typ .
並列容量	C0	1.2pF typ .
周波数經年变化	f_age	±3×10-6
動作温度範函	T_use	-40~+85℃
保存温度範函	T_stg	-55~+125℃

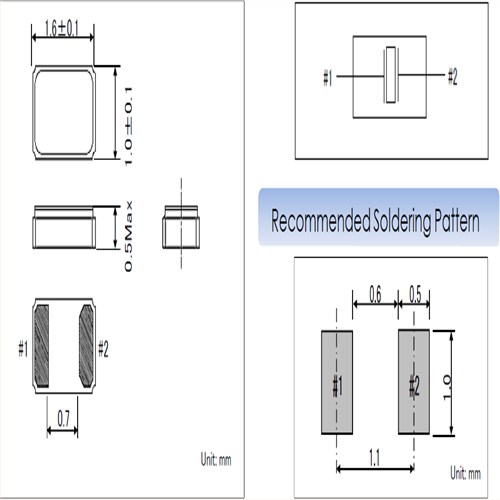

32.768K/7pF/Q-SC16S0320570CADF/SC-16S/1610mm智能手机晶振，尺寸图

32.768K/7pF/Q-SC16S0320570CADF/SC-16S/1610mm智能手机晶振，32.768K系列产品本身具有体积小,厚度薄,重量轻等特点,此音叉型石英晶体谐振器,SMD晶体产品本身具备优良的耐热性,耐环境特性,在办公自动化,家电领域,移动通信领域可发挥优良的电气特性,符合无铅标准,满足无铅焊接的回流温度曲线要求,金属外壳的石英晶振使得产品在封装时能发挥比陶瓷晶振外壳更好的耐冲击性能.

原厂编码	厂家	型号	频率	频率稳定度	负载电容
Q-SC16S03220C5AAAF	Seiko晶振	SC-16S	32.768kHz	±20ppm	12.5pF
Q-SC16S03210C5AAAF	Seiko晶振	SC-16S	32.768kHz	±10ppm	12.5pF
Q-SC16S03205C5AAAF	Seiko晶振	SC-16S	32.768kHz	±5ppm	12.5pF
Q-SC16S0322070CAAF	Seiko晶振	SC-16S	32.768k	±20ppm	7pF
Q-SC16S0321070CAFF	Seiko晶振	SC-16S	32.768kHz	±10ppm	7pF
Q-SC16S0320570CADF	Seiko晶振	SC-16S	32.768kHz	±5ppm	7pF
Q-SC20S0322070CAAF	Seiko晶振	SC-20S	32.768kHz	±20ppm	7pF
Q-SC20S0321070CAFF	Seiko晶振	SC-20S	32.768kHz	±10ppm	7pF
Q-SC20S0320570CADF	Seiko晶振	SC-20S	32.768kHz	±5ppm	7pF
Q-SC20S03220C5AAAF	Seiko晶振	SC-20S	32.768kHz	±20ppm	12.5pF
Q-SC20S03210C5AAAF	Seiko晶振	SC-20S	32.768kHz	±10ppm	12.5pF
Q-SC20S03205C5AAAF	Seiko晶振	SC-20S	32.768kHz	±5ppm	12.5pF
Q-SC32S03220C5AAE	Seiko晶振	SC-32S	32.768kHz	±20ppm	12.5pF
Q-SC32S03210C5AFE	Seiko晶振	SC-32S	32.768kHz	±10ppm	12.5pF
Q-SC32S03205C5ADE	Seiko晶振	SC-32S	32.768kHz	±5ppm	12.5pF
Q-SC32S0320570CADF	Seiko晶振	SC-32S	32.768kHz	±5ppm	7pF
Q-SC32S0321070CAAF	Seiko晶振	SC-32S	32.768kHz	±10ppm	7pF
Q-SC32S0322070AAAF	Seiko晶振	SC-32S	32.768kHz	±20ppm	7pF
Q-SC32S03220C5AAAF	Seiko晶振	SC-32S	32.768kHz	±20ppm	12.5pF
Q-SC32S03210C5AAFF	日产晶振	SC-32S	32.768kHz	±10ppm	12.5pF
Q-SC32S03205C5AADF	Seiko晶振	SC-32S	32.768kHz	±5ppm	12.5pF
Q-SPT2S0327620C5DJ	Seiko晶振	SP-T2A-F	32.768kHz	±20ppm	12.5pF
Q-SPT7P032762070FF	Seiko晶振	SSP-T7-F	32.768kHz	±20ppm	7pF
Q-SPT7P032761070FF	Seiko晶振	SSP-T7-F	32.768kHz	±10ppm	7pF
Q-SPT7P032760570FF	Seiko晶振	SSP-T7-F	32.768kHz	±5ppm	7pF
Q-SPT7P0327620C5GF	Seiko晶振	SSP-T7-F	32.768kHz	±20ppm	12.5pF
Q-SPT7P0327610C5GF	Seiko晶振	SSP-T7-F	32.768kHz	±10ppm	12.5pF
Q-SPT7P0327605C5GF	Seiko晶振	SSP-T7-F	32.768kHz	±5ppm	12.5pF
VT200F-6PF20PPM	Seiko晶振	VT-200-F	32.768kHz	-	6pF
VT200F-12.5PF20PPM	Seiko晶振	VT-200-F	32.768kHz	-	12.5pF
