S2H024576D3CHA-T,HSO221S,24.576MHz,2520mm,HELE通信晶振，台湾HELE晶振，加高晶振，型号：HSO221S，编码为：S2H024576D3CHA-T，频率为：24.576MHz，电压：3.0V，频率稳定性：±20ppm，工作温度范围：-20℃至+70℃，小体积晶振尺寸：2.5x2.0mm封装，四脚贴片晶振，石英晶振，有源晶振，SPXO晶振，石英晶体振荡器，SMD晶振，无铅环保晶振。具有超小型，轻薄型，高精度，高性能，高品质，高稳定性等特点。被广泛应用于：移动通讯设备，无线蓝牙晶振，物联网晶振，医疗设备晶振，GPS定位晶振，数码电子等应用。
S2H024576D3CHA-T,HSO221S,24.576MHz,2520mm,HELE通信晶振,参数表

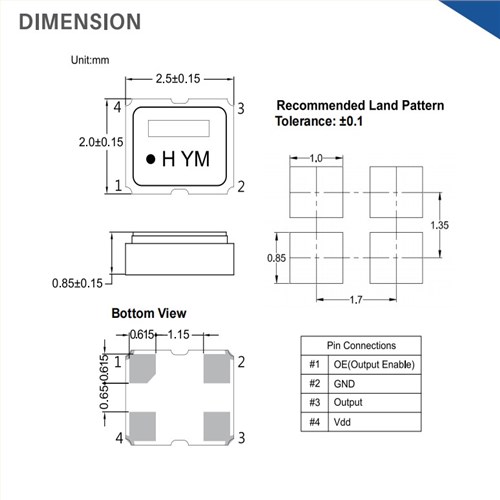

S2H024576D3CHA-T,HSO221S,24.576MHz,2520mm,HELE通信晶振,尺寸图
| 编码 | 石英晶振 | 型号 | 频率 | 电压 | 频率稳定性 |
| SSW048000I3CHE-T | HELE加高 | HSO321S | 48 MHz | 3.3V | ±50ppm |
| SSW050000I3CHE-T | HELE加高 | HSO321S | 50 MHz | 3.3V | ±50ppm |
| SSW008000I3CHE-T | HELE加高 | HSO321S | 8 MHz | 3.3V | ±50ppm |
| SSW024576F3CHC-T | HELE加高 | HSO321S | 24.576 MHz | 3.3V | ±30ppm |
| SSW010000I3CHE-T | HELE加高 | HSO321S | 10 MHz | 3.3V | ±50ppm |
| SSW025000I3CHE-ST7R2 | HELE加高 | HSO321S | 25 MHz | 3.3V | ±50ppm |
| S2H048000F3CHC-T | HELE加高 | HSO221S | 48 MHz | 3.3V | ±30ppm |
| TC2S026000DCCHE-T | HELE加高 | HSB221S | 26 MHz | 2.8V | ±500ppb |
| S2H025000EECHB-ST0R5 | HELE加高 | HSO221S | 25 MHz | 1.8V | - |
| SSW025000I3CHE-T | HELE加高 | HSO321S | 25MHz | 3V~3.6V | ±50ppm |
| SSW32768KF3CHC-IT | HELE加高 | HSO321S | 32.768kHz | 3V~3.6V | ±30ppm |
| SSW022579E3CH | HELE加高 | HSO321S | 22.5792MHz | 3V~3.6V | ±25ppm |
| SSW048000F3CH | HELE加高 | HSO321S | 48MHz | 3V~3.6V | ±30ppm |
| SSW024000FECH | HELE加高 | HSO321S | 24MHz | 1.71V | ±20ppm |
| SSW033333I3CHE-T | HELE加高 | HSO321S | 33.333MHz | 3V~3.6V | ±50ppm |
| SSW024000I3CH | HELE加高 | HSO321S | 24MHz | 3V~3.6V | ±50ppm |
| S2H019200IECHE-T | HELE加高 | HSO221S | 19.2MHz | 1.8V | -50ppm~+30ppm |
| S2H32768KF3CHC-IT | HELE加高 | HSO221S | 32.768kHz | 3.3V | ±30ppm |
| S2H022118F3CHC-T | HELE加高 | HSO221S | 22.1184MHz | 3.3V | ±30ppm |
| S2H008000I3CHE-T | SMD晶振 | HSO221S | 8MHz | 3.3V | ±50ppm |
| SSW024000I3CHE-T | HELE加高 | HSO321S | 24MHz | 3V~3.6V | ±50ppm |
| S2H024576D3CHA-T | HELE加高 | HSO221S | 24.576MHz | 3V~3.6V | ±20ppm |
| SSW002048F3CHC-T | HELE加高 | HSO321S | 2.048MHz | 3V~3.6V | ±30ppm |
| SSW027000FECHC-T | HELE加高 | HSO321S | 27MHz | 1.71V | ±30ppm |
| S2H024000FECHC-T | HELE加高 | HSO221S | 24MHz | 1.8V | ±30ppm |
| SSW32768KF3CH-I | HELE加高 | HSO321S | 32.768kHz | 3V~3.6V | ±30ppm |
| SSW32768KE3CH-I | HELE加高 | HSO321S | 32.768kHz | 3V~3.6V | ±25ppm |
| SSW024576I3CH | HELE加高 | HSO321S | 24.576MHz | 3V~3.6V | ±50ppm |
| SSW025000I3CH | HELE加高 | HSO321S | 25MHz | 3V~3.6V | ±50ppm |
| SSW016000D3CH | HELE加高 | HSO321S | 16MHz | 3V~3.6V | ±20ppm |
| SSW008000I3CH | HELE加高 | HSO321S | 8MHz | 3V~3.6V | ±50ppm |
| S2H040000F3CHC-T | HELE加高 | HSO221S | 40MHz | 3.3V | ±30ppm |
