TZ0601C,7015mm,32.768KHz,TST嘉硕晶振,SMD晶体，台湾TST晶振，嘉硕晶振，型号：TZ0601C系列晶振，频率为：32.768KHz，工作温度范围：-40℃至+85℃，小体积晶振尺寸：7.0x1.5mm陶瓷SMD封装，四脚贴片晶振，无源晶振，SMD石英晶体，7015晶振，石英晶振，音叉晶体，石英晶体谐振器，陶瓷谐振器。具有超小型，轻薄型，高性能，高品质，耐热及耐环境等特点。应用于：通讯设备晶振，钟表电子晶振，仪器仪表设备晶振，数字显示晶振，电脑主板晶振，数码电子晶振，智能家居晶振等应用。

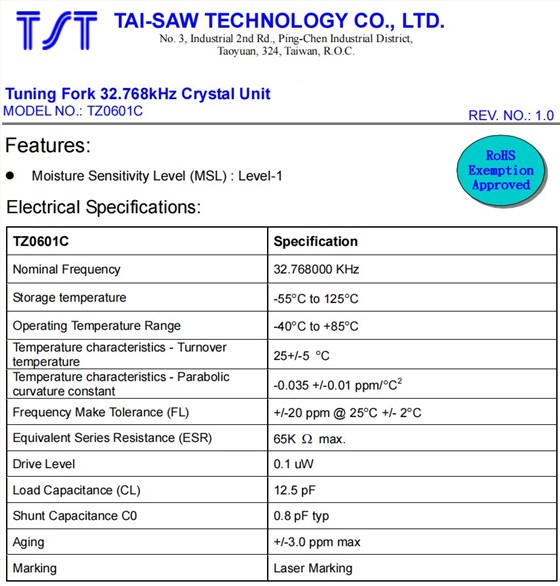

TZ0601C,7015mm,32.768KHz,TST嘉硕晶振,SMD晶体,参数表
TZ0601C
Specification
NominalFrequency
32.768000KHz
Storagetemperature
-55℃ to 125℃
OperatingTemperatureRange
-40℃ to +85℃
Temperature characteristics - Turnover
temperature
25+/-5 ℃
Temperature characteristics - Parabolic
curvature constant
-0.035 +/-0.01 ppm/℃2
FrequencyMakeTolerance(FL)
+/-20 ppm @ 25℃ +/- 2℃
EquivalentSeriesResistance(ESR)
65KΩmax.
DriveLevel
0.1uW
LoadCapacitance(CL)
12.5pF
ShuntCapacitanceC0
0.8pFtyp
Aging
+/-3.0ppmmax
Marking
LaserMarking

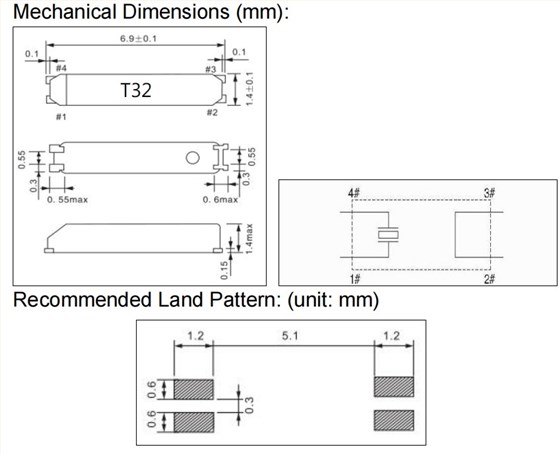

TZ0601C,7015mm,32.768KHz,TST嘉硕晶振,SMD晶体,尺寸图
