DSX221SH水晶振动子,大真空车载晶振,1ZN326000AB0A

频率：26MHZ

尺寸：2.5x2.0mm

DSX221SH水晶振动子,大真空车载晶振,1ZN326000AB0A，尺寸2.5x2.0mm，频率26MHZ，日本KDS晶振，大真空石英晶振，石英晶体谐振器，石英无源晶振，无源贴片晶振，石英水晶振动子，2520mm进口晶振，无源晶振，SMD晶振，石英晶振，26MHZ贴片晶振，四脚贴片晶振，高质量晶振，高可靠晶振，高精度晶振，低损耗晶振，无线模块晶振，PC专用晶振，小型设备晶振，多媒体设备晶振，娱乐设备晶振，视听设备晶振，具有高精度高可靠性能的特点。

石英晶振产品常常用于通信机、近距离无线模块、DVC、DSC、PC等小型设备，多媒体设备等车载用途(符合AEC-Q200标准).DSX221SH水晶振动子,大真空车载晶振,1ZN326000AB0A.

订购热线：0755-29952090

石英晶振产品常常用于通信机、近距离无线模块、DVC、DSC、PC等小型设备，多媒体设备等车载用途(符合AEC-Q200标准).DSX221SH水晶振动子,大真空车载晶振,1ZN326000AB0A.DSX221SH水晶振动子,大真空车载晶振,1ZN326000AB0A 参数表

型号名称	DSX221SH
频率范围	12~24MHz	26MHz	30~54MHz
泛音阶	功能
负载容量	8pF，10pF，12pF
激励电平	10μW (200μW max.)
频率允许偏差	±20×10-6( at 25℃)
串联电阻	120ω最大。	50ω最大。	40ω最大。
频率温度特性	±30×10-6/-30~+85℃ (Ref. to 25℃)
保存温度范围	-40~+85℃
包装单位(1)	3000pcs./reel(φ180 )

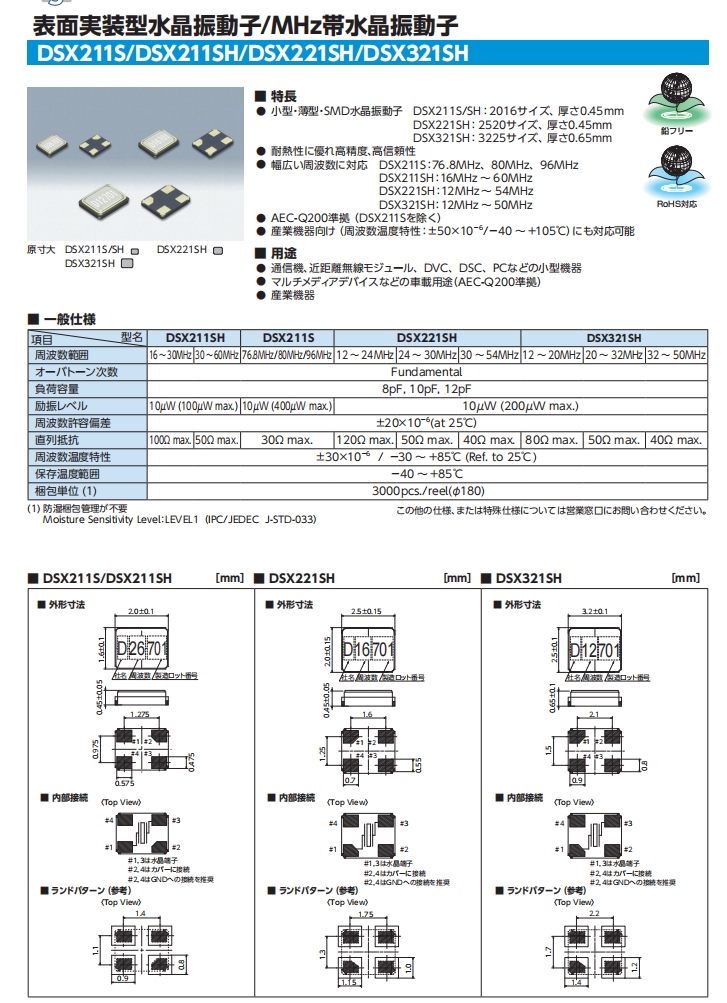

DSX221SH水晶振动子,大真空车载晶振,1ZN326000AB0A 尺寸图

DSX221SH水晶振动子,大真空车载晶振,1ZN326000AB0A

无源晶振产品特点：

小型薄型SMD石英振子2520尺寸、厚度0.45mm

耐热性优异，高精度、高可靠性

支持广泛的频率12MHz~54MHz

符合AEC-Q200标准

进口晶振代理商	原厂代码	型号	尺寸	频率	负载/电压	精度	温度
KDS晶振	1CG12288EE1C	DSX630G	6035	12.288M
KDS晶振	1ZNA16000AB0P	DSX221G	2520	16.000M	9PF	10ppm
KDS晶振	1ZNA32000BB0B	DSX221G	2520	32.000M	12PF	15ppm
KDS晶振	ZC13727	DSX221SH	2520	24.000M	10PF	30ppm
KDS晶振	1ZN326000AB0A	DSX221SH	2520	26.000M	7PF	10PPM
KDS晶振	1C208000BC0R	DSX321G	3225	8.000M	12PF	20PPM
KDS晶振	7AD00800A1C	DSX321G	3225	8.000M	12PF	20PPM
KDS晶振	1C208000CE0H	DSX321G	3225	8.000M	10PF	20PPM
KDS晶振	1C208000EE0BL	DSX321G	3225	8.000M	12PF	20PPM	40~125度
KDS晶振	1ZCM080000EE0A汽车	DSX320G	3225	8.000M	8PF	20PPM	40~85度
KDS晶振	1C208000EZ0G汽车	DSX321G	3225	8.000M	8PF	30PPM	40~85度
KDS晶振	1N210000EE0X	DSX321G	3225	10.000M	10PF
KDS晶振	7AD01200A1R	DSX321G	3225	12.000M	8PF	20ppm
KDS晶振	1N212000BC0AK	DSX321G	3225	12.000M	10PF	20ppm
KDS晶振	1C213080CC0A	DSX321G	3225	13.080M	8PF
KDS晶振	1C232000ABOV	DSX321G	3225	32.000M	6PF	10PPM
KDS晶振	1N254000BB0M	DSX321G	3225	54.000M	19PF	15PPM
KDS晶振	1ZCM12000BC0A	DSX320G	3225	12.000M	8PF
KDS晶振	1C216000EE0AW	DSX321G	3225	16.000M	8PF	50PPM
KDS晶振	1N216000EE0BE	DSX321G	3225	16.000M	8PF	50PPM
KDS晶振	1C216000BF0B	DSX321G	3225	16.000M
KDS晶振	1C319200AA0A	DSX321G	3225	19.200M	8PF	10PPM
KDS晶振	1C220000AA0K	DSX321G	3225	20.000M
KDS晶振	1C224000BE0K	DSX321G	3225	24.000M
KDS晶振	1N225000BC0CT	DSX321G	3225	25.000M	7.5PF
KDS晶振	1N226000AA0G	DSX321G	3225	26.000M	12.5PF	10ppm
KDS晶振	1N226000AA0E	DSX321G	3225	26.000M	8.1PF	10PPM
KDS晶振	1C214745CE0E	DSX321G	3225	14.7456M
KDS晶振	1C224576AC0A	DSX321G	3225	24.576M
KDS晶振	1N226000AB0M	DSX321G	3225	26.000M	8PF	8PPM
KDS晶振	1N226000AB0J	DSX321G	3225	26.000M	11PF	10PPM
KDS晶振	1C226000BE0D	DSX321G	3225	26.000M
KDS晶振	1N227000AB0N	DSX321G	3225	27.000M
KDS晶振	1C233333BC0G	DSX321G	3225	33.333333M
KDS晶振	1N340000LA0B	DSX321G	3225	40.000M
KDS晶振	1C340000LA0A	DSX321G	3225	40.000M	8PF
KDS晶振	1C262400BK0A	DSX321G	3225	62.4M
KDS晶振	1N227000EE0L	DSX321G	3225	27.000M	9PF	50ppm
KDS晶振	1BASAMPLE	DSX321G	3225	27.000M	9PF	50ppm
KDS晶振	1C227000BBAH	DSX321G	3225	27.000M	11PF	12ppm
KDS晶振	1N227000BB0AK	DSX321G	3225	27.000M	11PF	12PPM
KDS晶振	1C228322EE0D	DSX321G	3225	28.322M	10PF	50PPM
KDS晶振	1N230000AB0C	DSX321G	3225	30.000M	10PF	30PPM
KDS晶振	1C338400AA0B	DSX321G	3225	38.400M	10PF	10PPM
KDS晶振	1C241600CDAA	DSX321G	3225	41.6M	10PF	30PPM
KDS晶振	1C254000CC0C	DSX321G	3225	54.000M	10PF	30PPM
KDS晶振	1N232000AA0N	DSX321G	3225	32.000M	12PF
KDS晶振	1N240000AB0J	DSX321G	3225	40.000M	15PF	15PPM	40~125度
KDS晶振	1C240000AB0G	DSX321G	3225	40.000M	10PF	10PPM
KDS晶振	X4S013000DA1H-W	HSX421S	4025	13.000M	10PF	20ppm
KDS晶振	X1H013000B81H	HSX531S	5032	13.000M	8PF	10ppm
KDS晶振	1C736864CC1A	DSX530GA	5032	36.864M	8PF	25PPM
KDS晶振	1HX12288CD1A	DSX840GA	8045	12.288M	20PF	30PPM
KDS晶振	1CX40000EE1O	DSX840GA	8045	40.000M	18PF	50ppm
KDS晶振	1CW04000KK3C	DSX151GAL	11.8*5.5	4.000M
KDS晶振	1CW08192EK3A	DSX151GAL	11.8*5.5	8.192M	15PF	20ppm
KDS晶振	CW08000EK3B	DSX151GAL	11.8*5.5	8.000M
KDS晶振	1AJ039286A	SMD-49		3.928231M
KDS晶振	1AJ040003DJ	SMD-49		4.000M
KDS晶振	1AJ043324C	SMD-49	11*4.6	4.332M	12PF	20PPM
KDS晶振	1AJ073726AV	SMD-49		7.3728M
KDS晶振	1AJ099976A	SMD-49		9.9975M
KDS晶振	1AR11059CEB	SMD-49		11.0592M	16PF	30PPM
KDS晶振	1AJ160006BL	SMD-49		16.000M
KDS晶振	1AJ16000EEL	SMD-49		16.000M
KDS晶振	1AJ160003D	SMD-49		16.000M		30PPM
KDS晶振	1AJ17408AAGA	SMD-49	11*4.6	17.408M	16PF	50PPM
KDS晶振	1AJ240006AEA	SMD-49	11*4.6	24.000M	16PF	50PPM
KDS晶振	1AJ240006AK	SMD-49	11*4.6	24.000M	16PF	30PPM
KDS晶振	1AJ240006BB	SMD-49	11*4.6	24.000M	16PF	30PPM
KDS晶振	1AJ245765C	SMD-49	11*4.6	24.576M	18PF	30PPM
KDS晶振	1AR245766AZ	SMD-49	11*4.6	24.576M	20PF	30ppm
KDS晶振	1AR245766BE	SMD-49	11*4.6	24.576M
KDS晶振	1AJ250004B	SMD-49	11*4.6	25.000M	20PF	30PPM
KDS晶振	1AR270002GA	SMD-49	11*4.6	27.000M	12.9PF	20PPM
KDS晶振	1AR270002CG	SMD-49	11*4.6	27.000M	10PF	20PPM
KDS晶振	1AR270002CGA	SMD-49	11*4.6	27.000M	10PF	30PPM
KDS晶振	1AR270002EH	SMD-49	11*4.6	27.000M	12PF	20PPM
KDS晶振	1AV270002BA	SMD-49	11*4.6	27.000M	16PF	50PPM
KDS晶振	1AR270002CQ	SMD-49	11*4.6	27.000M	10PF	30ppm
