Renesas差分晶振,XLL335125.000000I,光纤通道6G晶振
频率:125.000MHz
尺寸:3.2x2.5mm
Renesas差分晶振,XLL335125.000000I,光纤通道6G晶振,进口晶振,Renesas瑞萨电子晶振,XLL系列晶振,编码为:XLL335125.000000I,频率为:125.000MHz,小体积尺寸:3.2x2.5mm,六脚贴片晶振,有源晶振,石英晶体振荡器。XLL是一个LVDS差分晶振,具有0.89ps的典型相位抖动,超过12 kHz到20 MHz的带宽。IDT XLL系列晶体振荡器的频率范围从0.750MHz到1350MHz,采用了一系列专有的asic,重点关注降噪技术。三阶德尔塔-西格玛调制器将噪声降低到与传统大块石英和SAW振荡器相当的水平。XLL交付周期短、成本低、噪音低、频率范围宽、环境性能优异,是传统技术的绝佳选择。XLL的稳定性高达±20ppm,速度极快,提供标准频率和自定义频率。广泛应用于:通讯设备、网络设备晶振,机顶盒、光端机、安防设备、路由器/交换机、仪器仪表、SATA,SAS,光纤通信,10G以太网等应用。
Renesas差分晶振,XLL335125.000000I,光纤通道6G晶振,参数表
Parameter | Symbol | Condition | Min | Typ | Max | Units | ||||||||||||||||||||||
Output Frequency Range | FOUTR | 125 | MHz | |||||||||||||||||||||||||
Frequency Stability | Temperature = -20°C to +70°C | ±20 | ±100 | ppm | ||||||||||||||||||||||||
Temperature = -40°C to +85°C | ±25 | ±100 | ppm | |||||||||||||||||||||||||
Aging(1st year) | Ta = 25°C | 3 | ||||||||||||||||||||||||||
Aging (10 years) | Ta = 25°C | 10 | ||||||||||||||||||||||||||
Output Load | Differential | 100 | Ohms | |||||||||||||||||||||||||
Start-up Time | TST | Output valid time after VDD meets minimum specified level |
10 | ms | ||||||||||||||||||||||||
Output Rise Time | 20% to 80% VPP | 400 | ps | |||||||||||||||||||||||||
Output Fall Time | 80% to 20% VPP | 400 | ps | |||||||||||||||||||||||||
Output Clock Duty Cycle | TDTCY | 50%VP-P | 45 | 55 | % | |||||||||||||||||||||||
Output Enable/ Disable Time | TOE | 100 | ns | |||||||||||||||||||||||||
Period Jitter, RMS | J PER | Frequency = 156.25MHz | 3.0 | ps | ||||||||||||||||||||||||
Random Jitter | RJ | Frequency = 156.25MHz Per MJSQ spec (Methodologies for Jitter and Signal Quality specifications) |
1.3 | ps | ||||||||||||||||||||||||
Deterministic Jitter | DJ | 5.8 | ps | |||||||||||||||||||||||||
Total Jitter | TJ | 23.6 | ps | |||||||||||||||||||||||||
Phase Jitter (12kHz – 20MHz) | φJITTER | Common Frequencies | 0.89 | ps | ||||||||||||||||||||||||
Phase Noise Performance Frequency = 156.25MHz |
φNOISE | 100Hz of Carrier | -80 | dBc/Hz | ||||||||||||||||||||||||
1kHz of Carrier | -115 | dBc/Hz | ||||||||||||||||||||||||||
10kHz of Carrier | -118 | dBc/Hz | ||||||||||||||||||||||||||
100kHz of Carrier | -124 | dBc/Hz | ||||||||||||||||||||||||||
1MHz of Carrier | -142 | dBc/Hz | ||||||||||||||||||||||||||
10MHz of Carrier | -151 | dBc/Hz | ||||||||||||||||||||||||||
Output Frequency (Common) | F OUT | 100MHz, 106.25MHz, 1258MHz, 150MHz, 155.52MHz, 156.25MHz, 200MHz,212.5MHz, 250MHz, 300MHz, 312.5MHZ, 400MHz (Contact IDT for additional frequencies) |

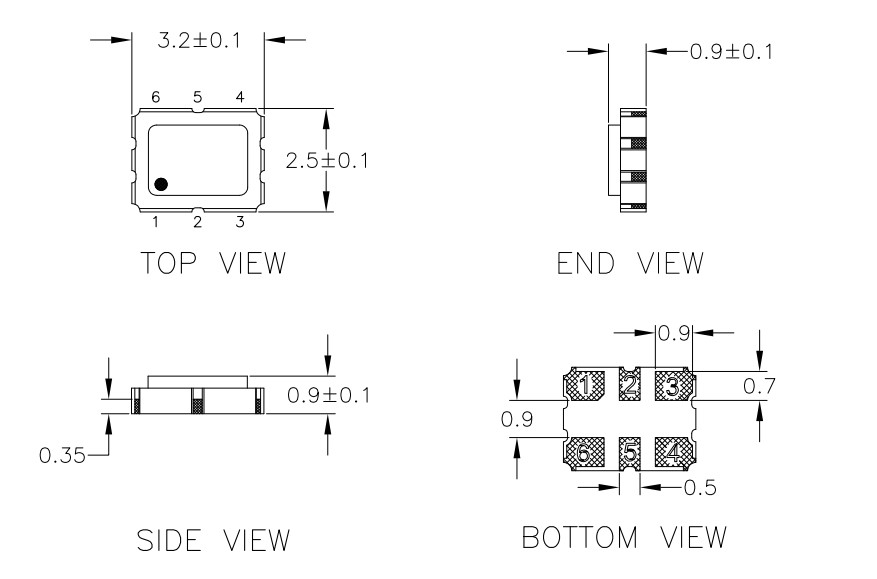

Renesas差分晶振,XLL335125.000000I,光纤通道6G晶振,尺寸图
Renesas差分晶振,XLL335125.000000I,光纤通道6G晶振
产品特点:
频率范围:0.750MHz至1350MHz
输出类型:LVDS输出 差分晶振
频率稳定性:±20ppm、±25ppm、±50ppm或±100ppm
电源电压:2.5V或3.3V
相位抖动(1.875MHz至20MHz):典型225fs
相位抖动(12kHz至20MHz):典型值为0.89ps
包装选项:3.2mm x 2.5mm x 1.0mm(JX6)
5.0毫米x 3.2毫米x 1.2毫米(JS6)
7.0毫米x 5.0毫米x 1.3毫米(JU6)
工作温度:-20°C至+70°C或-40°C至+85°C
贴片晶振 | 品牌 | 描述 | 系列 | 频率 |
XLL726238.000000I | Renesas晶振 | XTAL OSC XO 238.0000MHZ LVDS SMD | XLL | 238 MHz |
XLL525212.500000I | Renesas晶振 | XTAL OSC XO 212.5000MHZ LVDS SMD | XLL | 212.5 MHz |
XLL330120.000000X | Renesas晶振 | XTAL OSC XO 120.0000MHZ LVDS SMD | XLL | 120 MHz |
XLL325040.000000I | Renesas晶振 | XTAL OSC XO 40.0000MHZ LVDS SMD | XLL | 40 MHz |
XLL530108.000000I | Renesas晶振 | XTAL OSC XO 108.0000MHZ LVDS SMD | XLL | 108 MHz |
XLL338C50.000000X | Renesas晶振 | XTAL OSC XO 1.2500GHZ LVDS SMD | XLL | 1.25 GHz |
XLL726371.428571I | Renesas晶振 | XTAL OSC XO 371.428571MHZ LVDS | XLL | 371.428571 MHz |
XLL335125.000000I | Renesas晶振 | XTAL OSC XO 125.0000MHZ LVDS SMD | XLL | 125 MHz |
XLL735096.918000I | Renesas晶振 | XTAL OSC XO 96.9180MHZ LVDS SMD | XLL | 96.918 MHz |
XLL530075.000000I | Renesas晶振 | XTAL OSC XO 75.0000MHZ LVDS SMD | XLL | 75 MHz |
XLL530080.000000I | Renesas晶振 | XTAL OSC XO 80.0000MHZ LVDS SMD | XLL | 80 MHz |
XLL536075.000000I | Renesas晶振 | XTAL OSC XO 75.0000MHZ LVDS SMD | XLL | 75 MHz |
XLL735135.000000I | Renesas晶振 | XTAL OSC XO 135.0000MHZ LVDS SMD | XLL | 135 MHz |
XLL535148.000000I | Renesas晶振 | XTAL OSC XO 148.0000MHZ LVDS SMD | XLL | 148 MHz |
XLL535240.000000I | Renesas晶振 | XTAL OSC XO 240.0000MHZ LVDS SMD | XLL | 240 MHz |
XLL330016.000000X | Renesas晶振 | XTAL OSC XO 16.0000MHZ LVDS SMD | XLL | 16 MHz |
XLL335108.000000X | Renesas晶振 | XTAL OSC XO 108.0000MHZ LVDS SMD | XLL | 108 MHz |
XLL725066.660000X | Renesas晶振 | XTAL OSC XO 66.6600MHZ LVDS SMD | XLL | 66.66 MHz |
XLL720100.000000X | Renesas晶振 | XTAL OSC XO 100.0000MHZ LVDS SMD | XLL | 100 MHz |
XLL536008.192000I | Renesas晶振 | XTAL OSC XO 8.1920MHZ LVDS SMD | XLL | 8.192 MHz |
XLL735208.125000K | Renesas晶振 | XTAL OSC XO 208.1250MHZ LVDS SMD | XLL | 208.125 MHz |
XLL730096.918000X | 有源晶振 | XTAL OSC XO 96.9180MHZ LVDS SMD | XLL | 96.918 MHz |
XLL730081.000000X | Renesas晶振 | XTAL OSC XO 81.0000MHZ LVDS SMD | XLL | 81 MHz |
XLL336124.000000X | Renesas晶振 | MULTIMKT-TIMING | XLL | 124 MHz |
XLL735161.133000X | Renesas晶振 | XTAL OSC XO 161.1330MHZ LVDS SMD | XLL | 161.133 MHz |
XLL336120.000000X | Renesas晶振 | XTAL OSC XO 120.0000MHZ LVDS SMD | XLL | 120 MHz |
XLL735161.132800X | Renesas晶振 | XTAL OSC XO 161.1328MHZ LVDS SMD | XLL | 161.1328 MHz |
XLL336025.000000X | Renesas晶振 | XTAL OSC XO 25.0000MHZ LVDS SMD | XLL | 25 MHz |
XLL336025.165824X | Renesas晶振 | XTAL OSC XO 25.165824MHZ LVDS | XLL | 25.165824 MHz |
XLL735133.333000X | Renesas晶振 | XTAL OSC XO 133.3330MHZ LVDS SMD | XLL | 133.333 MHz |
XLL336095.000000X | Renesas晶振 | XTAL OSC XO 95.0000MHZ LVDS SMD | XLL | 95 MHz |
XLL336090.000000X | Renesas晶振 | XTAL OSC XO 90.0000MHZ LVDS SMD | XLL | 90 MHz |
XLL525192.000000X | Renesas晶振 | XTAL OSC XO 192.0000MHZ LVDS SMD | XLL | 192 MHz |
