Quarztechnik有源晶振,QTX533B50.0000B15R,导航仪6G晶振

频率：50.000MHz

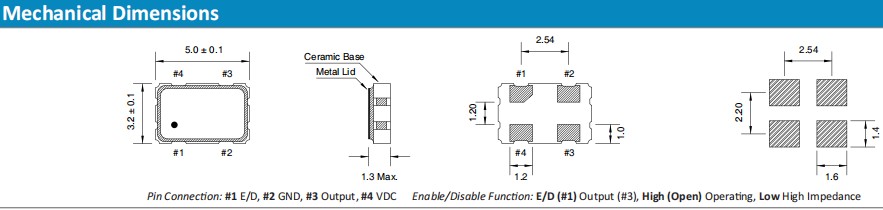

尺寸：5.2x3.4x1.3mm

Quarztechnik有源晶振,QTX533B50.0000B15R,导航仪6G晶振，德国进口晶振，Quarztechnik夸克晶振，型号：QTX5，编码为：QTX533B50.0000B15R，频率为：50.000MHz，电压3.3V，工作温度范围：-40℃至+85℃，小体积晶振尺寸：5.2x3.4x1.3mm封装，四脚贴片晶振，有源晶振，石英晶体振荡器，SMD晶振，石英晶振，时钟振荡器，无铅环保晶振。QX5超微型振荡器由一个TTL/HCMOS兼容的混合电路和一个微型石英晶体封装在一个低轮廓，行业标准的陶瓷封装中。应用于：无线网络，蓝牙模块，物联网，移动通讯设备，测试设备，导航仪，汽车电子，电信，智能手机，平板电脑，智能家居，数码电子等应用。

订购热线：0755-29952090

Quarztechnik有源晶振,QTX533B50.0000B15R,导航仪6G晶振，参数表

General Specifications
Frequency Range		50.000MHz
Output Logic		HCMOS
Temperature Stability*		±100ppm
		±50ppm
		±25ppm
		±20ppm
Phase Jitter RMS		<1ps typ.
Aging per year		±5ppm
Operating Temperature Range	Standard	-20 to +70°C
	Industrial	-40 to +85°C
	Extended	-40 to +105°C
	Automotive	-40 to +125°C
Storage Temperature Range		-55 to +125°C
* Frequency stability is inclusive of calibration tolerance at 25°C, frequency change due to shock & vibration, ±10% supply voltage variation and stability over temperature range.
