22SMX,22M480-8,48MHz,2520mm,SMI品牌,SMD晶振
频率:48.000MHz
尺寸:2.5x2.0mm
22SMX,22M480-8,48MHz,2520mm,SMI品牌,SMD晶振, 日本进口晶振,SMI晶振,型号:22SMX,编码为:22M480-8,频率为:48.000MHz,负载电容:8pF,小体积晶振尺寸:2.5x2.0mm封装,四脚贴片晶振,石英晶体谐振器,2520晶振,石英晶振,无源晶振,无铅环保晶振,具有超小型,轻薄型,高性能,高品质,高质量等特点。应用于:通讯设备晶振,可穿戴设备晶振,小型便捷式设备晶振,无线蓝牙晶振,智能手机晶振,平板电脑晶振,数码电子晶振,安防设备晶振,消费电子晶振等应用。
22SMX,22M480-8,48MHz,2520mm,SMI品牌,SMD晶振,产品特点:
尺寸:2.5x2.0mm
SMD石英晶体谐振器
频率范围:16.000MHz~80.000MHz
22SMX,22M480-8,48MHz,2520mm,SMI品牌,SMD晶振,参数表
Item |
Specifications |
Package type |
22SMX |
Frequency range |
48.000MHz |
Frequency tolerance |
±30 ppm at +25℃ ±3℃ |
Temperature stability (referred to +25℃) |
±30 ppm over -20℃ to +70℃ |
Load capacitance (CL) |
8 pF, Typical |
Shunt capacitance (C0) |
5 pF max. |
Drive level (P) |
100 μW max. (10 μWfor testing) |
Aging |
±5 ppm max. at +25℃ ±3℃ per year |
Cut / Oscillation mode |
AT-Cut / Fundamental |
Reflow condition |
10 seconds max. at +250℃ ±10℃ |

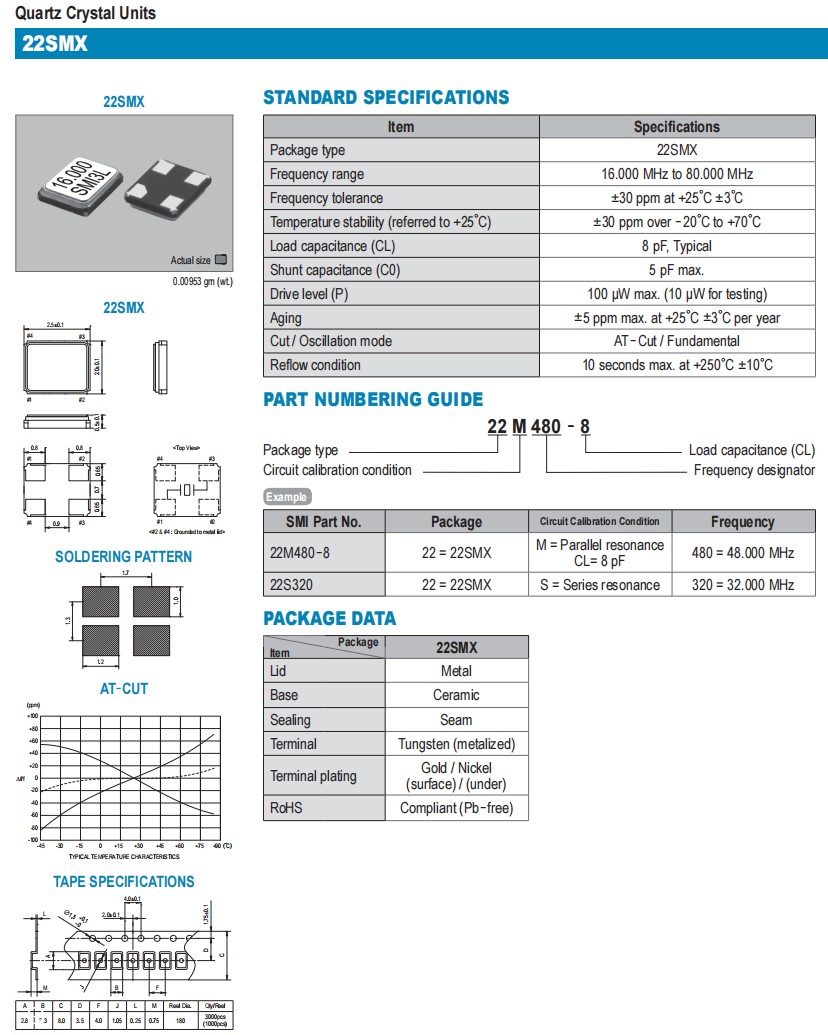

22SMX,22M480-8,48MHz,2520mm,SMI品牌,SMD晶振,尺寸图
