CSM1Z-A5B2C5-60-24.0D18,24MHz,±50ppm,18pF,HC-49S，Cardinal卡迪纳尔晶振，美国进口晶振，CSM1晶振系列，编码为：CSM1Z-A5B2C5-60-24.0D18，频率24.000MHz，是一款椭圆形金属壳封装晶振，小体积外形尺寸12.9x4.7x4.3mm封装，两脚贴片晶振，石英贴片晶振，无源晶振，石英晶体谐振器，无铅环保晶振，SMD晶振，低轮廓表面安装MHz晶体，被广泛用于通讯设备晶振，无线网络晶振，蓝牙模块晶振，汽车电子晶振，导航仪，医疗设备，数码电子，物联网等应用.
CSM1Z-A5B2C5-60-24.0D18,24MHz,±50ppm,18pF,HC-49S，参数表
晶振规格
单位
MHZ贴片晶振频率范围
石英晶振基本条件
标准频率
f_nom
标准频率
储存温度
T_stg
-40°C ~ +85°C
裸存
工作温度
T_use
-10°C ~ +70°C
标准温度
激励功率
DL
200μW Max.
推荐:1μW ~ 100μW
频率公差
f_— l
±50 × 10-6(标准),
+25°C 对于超出标准的规格说明,
频率温度特征
f_tem
±30 × 10-6/-20°C ~ +70°C
超出标准的规格请联系我们.
负载电容
CL
18pF
不同负载电容要求,请联系我们.
串联电阻(ESR)
R1
如下表所示
-40°C~+85°C,DL = 100μW
频率老化
f_age
±5 × 10-6/ year Max.
+25°C,第一年
(±15 × 10-6~ ±50 × 10-6可用)
请联系我们以便获取相关的信息,http://jyyshkj.com

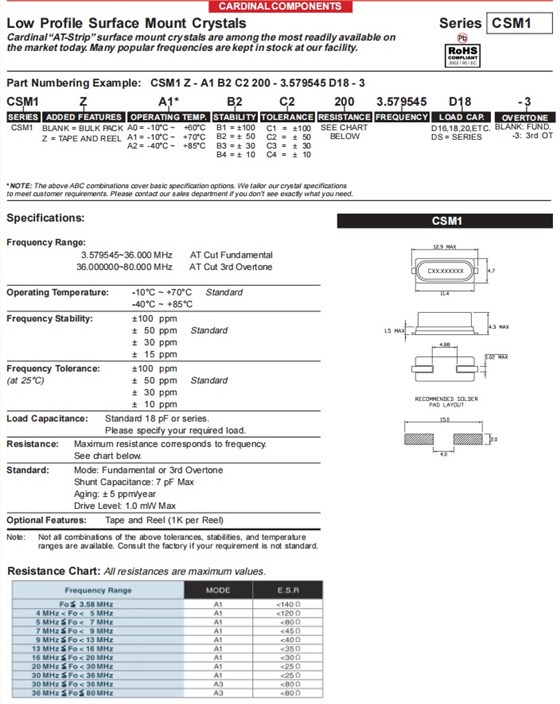

CSM1Z-A5B2C5-60-24.0D18,24MHz,±50ppm,18pF,HC-49S，尺寸图
| 进口石英晶振 | 厂家 | 型号 | 频率 | 频率稳定度 | Description 参数 |
| CSM1Z-A5B2C3-40-14.31818D18 | Cardinal晶振 | CSM1 | 14.31818MHz | ±50ppm | CRYSTAL 14.31818MHZ 18PF SMD |
| CSM1Z-A5B2C5-60-24.0D18 | Cardinal晶振 | CSM1 | 24MHz | ±50ppm | CRYSTAL 24.0000MHZ 18PF SMD |
| CSM1Z-A2B2C3-40-30.0D18 | Cardinal晶振 | CSM1 | 30MHz | ±50ppm | CRYSTAL 30.0000MHZ 18PF SMD |
| CSM1Z-A0B2C3-50-22.1184D18 | Cardinal晶振 | CSM1 | 22.1184MHz | ±50ppm | CRYSTAL 22.1184MHZ 18PF SMD |
| CSM1Z-A0B2C3-100-5.0D18 | Cardinal晶振 | CSM1 | 5MHz | ±50ppm | CRYSTAL 5.0000MHZ 18PF SMD |
| CSM1Z-A5B2C5-40-14.7456D18 | Cardinal晶振 | CSM1 | 14.7456MHz | ±50ppm | CRYSTAL 14.7456MHZ 18PF SMD |
| CSM1Z-A5B2C3-40-25.0D18-F | Cardinal晶振 | CSM1 | 25MHz | ±50ppm | CRYSTAL 25.0000MHZ 18PF SMD |
| CSM1Z-A0B2C3-50-16.0D18 | Cardinal晶振 | CSM1 | 16MHz | ±50ppm | CRYSTAL 16.0000MHZ 18PF SMD |
| CSM1Z-A5B2C5-50-20.0D18 | Cardinal晶振 | CSM1 | 20MHz | ±50ppm | CRYSTAL 20.0000MHZ 18PF SMD |
| CSM1Z-A1B2C3-90-8.0D18 | Cardinal晶振 | CSM1 | 8MHz | ±50ppm | CRYSTAL 8.0000MHZ 18PF SMD |
| CSM1Z-A5B2C5-40-11.0592D18 | Cardinal晶振 | CSM1 | 11.0592MHz | ±50ppm | CRYSTAL 11.0592MHZ 18PF SMD |
| CSM1Z-A0B2C3-50-15.360D18 | Cardinal晶振 | CSM1 | 15.36MHz | ±50ppm | CRYSTAL 15.3600MHZ 18PF SMD |
| CSM1Z-A0B2C3-50-19.6608D18 | Cardinal晶振 | CSM1 | 19.6608MHz | ±50ppm | CRYSTAL 19.6608MHZ 18PF SMD |
| CSM1Z-A5B2C3-40-14.7456D20 | Cardinal晶振 | CSM1 | 14.7456MHz | ±50ppm | CRYSTAL 14.7456MHZ 20PF SMD |
| CSM1Z-A0B2C3-80-13.5D18 | Cardinal晶振 | CSM1 | 13.5MHz | ±50ppm | CRYSTAL 13.5000MHZ 18PF SMD |
| CSM1Z-A0B2C3-50-16.257D18 | Cardinal晶振 | CSM1 | 16.257MHz | ±50ppm | CRYSTAL 16.2570MHZ 18PF SMD |
| CSM1Z-A5B2C3-40-24.576D18 | Cardinal晶振 | CSM1 | 24.576MHz | ±50ppm | CRYSTAL 24.5760MHZ 18PF SMD |
| CSM1Z-A0B2C3-50-16.000312D18 | Cardinal晶振 | CSM1 | 16.000312MHz | ±50ppm | CRYSTAL 16.000312MHZ 18PF SMD |
| CSM1Z-A0B2C3-50-18.0D18 | Cardinal晶振 | CSM1 | 18MHz | ±50ppm | CRYSTAL 18.0000MHZ 18PF SMD |
| CSM1Z-A0B2C3-200-3.6864D18 | Cardinal晶振 | CSM1 | 3.6864MHz | ±50ppm | CRYSTAL 3.6864MHZ 18PF SMD |
| CSM1Z-A5B2C3-200-3.6864D18 | 卡迪纳尔晶振 | CSM1 | 3.6864MHz | ±50ppm | CRYSTAL 3.6864MHZ 18PF SMD |
| CSM1Z-A0B2C3-150-4.9152D18 | Cardinal晶振 | CSM1 | 4.915MHz | ±50ppm | CRYSTAL 4.9150MHZ 18PF SMD |
| CSM1Z-A0B2C3-40-25.0D18 | Cardinal晶振 | CSM1 | 25MHz | ±50ppm | CRYSTAL 25.0000MHZ 18PF SMD |
| CSM1Z-A5B2C5-70-10.0D18 | Cardinal晶振 | CSM1 | 10MHz | ±50ppm | CRYSTAL 10.0000MHZ 18PF SMD |
| CSM1Z-A0B2C3-50-25.175D18 | Cardinal晶振 | CSM1 | 25.175MHz | ±50ppm | CRYSTAL 25.1750MHZ 18PF SMD |
| CSM1Z-A5B2C3-120-6.144D18 | Cardinal晶振 | CSM1 | 6.144MHz | ±50ppm | CRYSTAL 6.1440MHZ 18PF SMD |
| CSM1-A1B2C3-50-20.0D16 | Cardinal晶振 | CSM1 | 20MHz | ±50ppm | CRYSTAL 20.0000MHZ 16PF SMD |
| CSM1Z-A5B2C5-150-3.6864D18 | Cardinal晶振 | CSM1 | 3.6864MHz | ±50ppm | CRYSTAL 3.6864MHZ 18PF SMD |
| CSM1Z-A5B2C5-40-10.0D18 | Cardinal晶振 | CSM1 | 10MHz | ±50ppm | CRYSTAL 10.0000MHZ 18PF SMD |
| CSM1Z-A0B2C3-50-27.0D18 | Cardinal晶振 | CSM1 | 27MHz | ±50ppm | CRYSTAL 27.0000MHZ 18PF SMD |
| CSM1Z-A0B2C3-100-7.3728D18 | Cardinal晶振 | CSM1 | 7.3728MHz | ±50ppm | CRYSTAL 7.3728MHZ 18PF SMD |
| CSM1Z-A0B2C3-100-6.144D18 | Cardinal晶振 | CSM1 | 6.144MHz | ±50ppm | CRYSTAL 6.1440MHZ 18PF SMD |
| CSM1Z-A5B2C3-40-27.0D18-F | Cardinal晶振 | CSM1 | 27MHz | ±50ppm | CRYSTAL 27.0000MHZ 18PF SMD |
| CSM1Z-A5B2C3-120-7.3728D18 | Cardinal晶振 | CSM1 | 7.3728MHz | ±50ppm | CRYSTAL 7.3728MHZ 18PF SMD |
| CSM1Z-A0B2C3-50-28.63636D18 | Cardinal晶振 | CSM1 | 28.63636MHz | ±50ppm | CRYSTAL 28.63636MHZ 18PF SMD |
| CSM1Z-A5B2C3-60-9.216D18 | Cardinal晶振 | CSM1 | 9.216MHz | ±50ppm | CRYSTAL 9.2160MHZ 18PF SMD |
| CSM1Z-A5B2C3-120-6.0D18 | Cardinal晶振 | CSM1 | 6MHz | ±50ppm | CRYSTAL 6.0000MHZ 18PF SMD |
| CSM1Z-A5B2C5-120-7.3728D18 | Cardinal晶振 | CSM1 | 7.3728MHz | ±50ppm | CRYSTAL 7.3728MHZ 18PF SMD |
| CSM1Z-A5B2C3-40-18.0D18 | Cardinal晶振 | CSM1 | 18MHz | ±50ppm | CRYSTAL 18.0000MHZ 18PF SMD |
| CSM1Z-A0B2C3-50-24.0D18 | Cardinal晶振 | CSM1 | 24MHz | ±50ppm | CRYSTAL 24.0000MHZ 18PF SMD |
| CSM1Z-A0B2C3-80-10.0D18 | Cardinal晶振 | CSM1 | 10MHz | ±50ppm | CRYSTAL 10.0000MHZ 18PF SMD |
| CSM1Z-A5B2C5-150-4.9152D18 | Cardinal晶振 | CSM1 | 4.9152MHz | ±50ppm | CRYSTAL 4.9152MHZ 18PF SMD |
