SMD2500.3C-27.145MHz,7050mm,HCMOS,GED晶振,27.145MHz

产品简介

SMD2500.3C-27.145MHz,7050mm,HCMOS,GED晶振,27.145MHz，美国进口晶振，GED晶振，型号：SMD2500系列，编码为：SMD2500.3C-27.145MHz，电源电压：3.3V，频率稳定性：±25ppm，频率为：27.145MHz，HCMOS输出晶振，工作温度范围：-40℃至+85℃，小体积晶振尺寸：7.5x5.0mm封装，六脚贴片晶振，VCXO压控晶体振荡器，石英晶振，有源晶振，压控晶振，石英晶体振荡器。具有超小型，轻薄型，低抖动，低功耗，低相位噪声，低电源电压，低耗能等特点。应用于：通讯设备晶振，无线网络晶振，蓝牙模块晶振，GPS定位晶振，导航仪晶振，物联网晶振等应用。

产品详情

SMD2500.3C-27.145MHz,7050mm,HCMOS,GED晶振,27.145MHz，产品特点：

●表面安装压控晶体振荡器（VCXO）
●HCMOS输出石英晶振
●3.3V电源电压
●陶瓷6片SMD封装
●焊盘#2上升；焊盘#5无连接

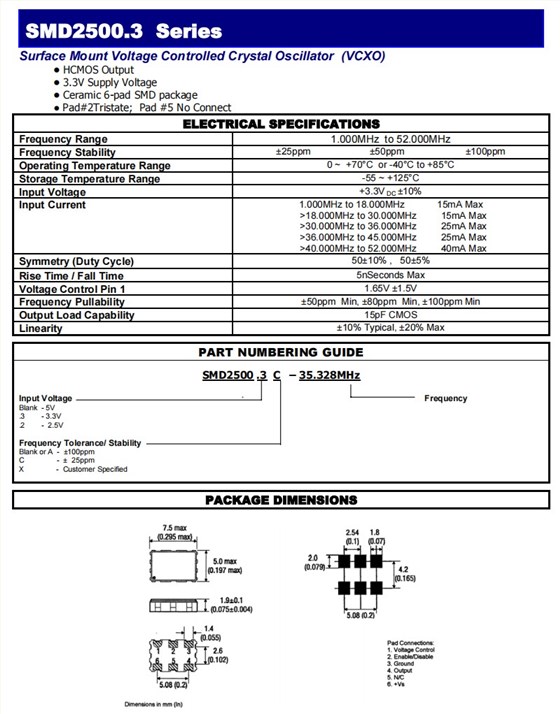

SMD2500.3C-27.145MHz,7050mm,HCMOS,GED晶振,27.145MHz,参数表

ELECTRICAL SPECIFICATIONS
Frequency Range	27.145MHz
Frequency Stability	±25ppm±50ppm±100ppm
Operating Temperature Range	0 ~+70°Cor -40°C to +85°C
Storage Temperature Range	-55 ~ +125°C
Input Voltage	+3.3VDC±10%
Input Current	1.000MHz to 18.000MHz >18.000MHz to 30.000MHz >30.000MHz to 36.000MHz >36.000MHz to 45.000MHz >40.000MHz to 52.000MHz	15mA Max 15mA Max 25mA Max 25mA Max 40mA Max
Symmetry (Duty Cycle)	50±10% ,50±5%
Rise Time / Fall Time	5nSeconds Max
Voltage Control Pin 1	1.65V ±1.5V
Frequency Pullability	±50ppmMin, ±80ppmMin, ±100ppm Min
Output Load Capability	15pF CMOS
Linearity	±10% Typical, ±20% Max
