VCXO/120MHz/5032mm/VG5032EDN/X1G0049110009/LV-PECL

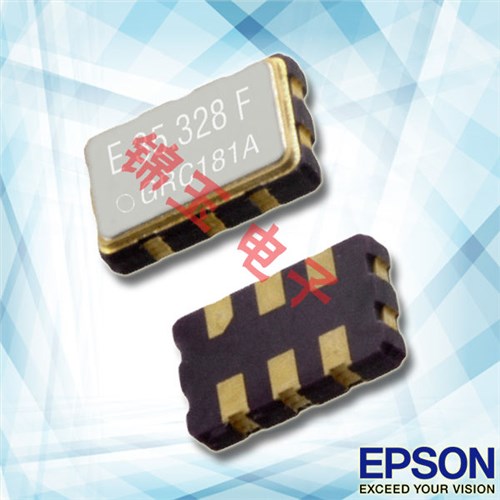

VCXO/120MHz/5032mm/VG5032EDN/X1G0049110009/LV-PECL，日本进口晶振，EPSON爱普生株式会社，晶振型号：VG5032EDN，编码为：X1G0049110009，是一款小体积晶振尺寸5.0x3.2x1.3mm封装，VCXO压控晶体振荡器，LV-PECL输出差分晶体振荡器，六脚贴片晶振，有源晶振，石英晶体振荡器，石英晶振，工作温度范围：-40°C to +85°C / -40°C to +105°C，电源电压3.3V，有源晶振具有超小型，轻薄型，低抖动，低功耗，低电源电压，低耗能，低损耗，低相位噪声，低电平等特点，被广泛用于通讯设备，无线网络，蓝牙模块晶振，GPS定位系统，车载导航，物联网，无线局域网，路由器，安防设备，医疗设备等应用。

VCXO/120MHz/5032mm/VG5032EDN/X1G0049110009/LV-PECL，参数表

Item	Symbol	VG5032EDN	VG5032VDN	Conditions / Remarks
		(LV-PCLE)	(LVDS)
Output frequency range	f0	85 MHz to 170 MHz		Please contact us for inquiries regarding available frequencies.
Supply voltage	VCC	3.3V ±0.165V
Storage temperature	T_stg	-55°C～+125°C		Store as bare product.
Operating temperature	T_use	G: -40°C to +85°C
		H: -40°C to +105°C
Frequency tolerance	f_tol	±50 × 10-6Max.		Includes initial tolerance, temperature change, Vcc change and 10years aging at +25°C. At Vc=1.65V, reference to f0
Absolute Pull range *1	APR	±50×10-6Min.		VC= 1.65V ±1.65V
Input resistance	Rin	10MΩ Min.		DC level
Current consumption	ICC	60mA Max.	30mA Max.	OE=Vcc, LV-PECL: 50Ω, LVDS: 100 Ω
Symmetry	SYM	45%～55%		LV-PECL: at Vcc-1.30 V, VC=1/2Vcc
				LVDS: at outputs crossing point
Output voltage	VOH	VCC-1.1V Min.	―	LV-PECL: DCcharacteristics
	VOL	VCC-1.5V Min.	―
	VOD	―	250 mV to 450mV	VOD1, VOD2	LVDS: DCcharacteristics
	VOS	―	1.15 V to 1.35 V	VOS1, VOS2
Output load condition	L_ECL	50 Ω	―	LV-PECL: Terminated to VCC -2.0 V
	L_LVDS	―	100 Ω	LVDS: Connected between OUT1 to OUT2
Input voltage	VIH	70 % Vcc Min.		OE terminal
	VIL	30 % Vcc Max.
Rise time / Fall time	tr / tf	0.5 ns Max.		LVP-ECL: at 20 % to 80 % output swing
		0.3 ns Max.		LVDS: at 20 % and 80 %of Differential Output peek to peek voltage
Start-up time	t_str	10 ms Max.		Time at minimum supply voltage to be 0 s
Phase Jitter	tPJ	0.3 ps Typ.		Offset Frequency 12kHz to 20MHz

VCXO/120MHz/5032mm/VG5032EDN/X1G0049110009/LV-PECL，尺寸图

产品编码	型号	频率	尺寸	输出	电压
X1G0049110005	VG5032EDN	130.031746 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110006	VG5032EDN	148.351600 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110007	VG5032EDN	100.000000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110008	VG5032EDN	102.253100 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL差分晶振	3.135 to 3.465 V
X1G0049110009	VG5032EDN	120.000000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110010	VG5032EDN	122.880000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110011	VG5032EDN	153.600000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110012	VG5032EDN	125.000000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110013	VG5032EDN	155.520000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110014	VG5032EDN	156.250000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110015	VG5032EDN	150.000000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110016	VG5032EDN	160.000000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110017	VG5032EDN	148.500000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110018	VG5032EDN	161.132800 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110019	VG5032EDN	165.000000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110020	VG5032EDN	92.000000 MHz	5032晶振	LV-PECL	3.135 to 3.465 V
X1G0049110021	VG5032EDN	97.792000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110022	VG5032EDN	98.304000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110024	VG5032EDN	106.250000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110025	VG5032EDN	108.000000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110030	VG5032EDN	100.000000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
X1G0049110031	VG5032EDN	122.880000 MHz	5.00 x 3.20 x 1.30 mm	LV-PECL	3.135 to 3.465 V
