X1G0053110023/CMOS/SG-9101CB/25MHz/5032mm/3.3V/SMD

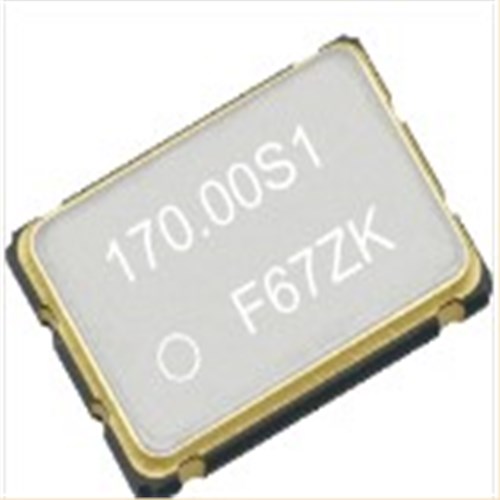

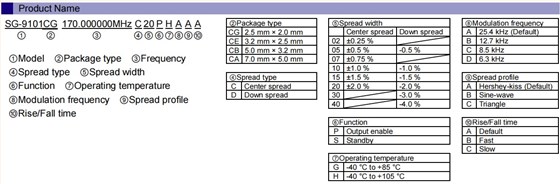

X1G0053110023/CMOS/SG-9101CB/25MHz/5032mm/3.3V/SMD，日本进口晶振，EPSON爱普生晶振SG-9101系列型号SG-9101CB，编码为：X1G0053110023，产品型号：SG-9101CB25.000000MHzC20PHAAA，可编程扩频晶体振荡器，是一款小体积晶振尺寸5.0x3.2mm四脚贴片晶振，有源晶振，石英晶体振荡器，石英晶振，小体积，轻薄型，具有CMOS输出的可编程晶体振荡器，工作温度范围：-40℃至+85℃（105℃），电源电压范围：1.62V 至3.63V，用户可以将产品编程为所需的输出频率以及所需的展宽光谱设置，带Epson SG-Writer II(单独销售)。这也将大大有助于提高性能、降低功耗要求、缩短开发周期和小批量生产。有源晶振应用于5G-WIFI6、物联网通讯、钟表、车载导航、智能手机、对讲机、数码产品，光电技术等通讯设备及各种频率控制设备。

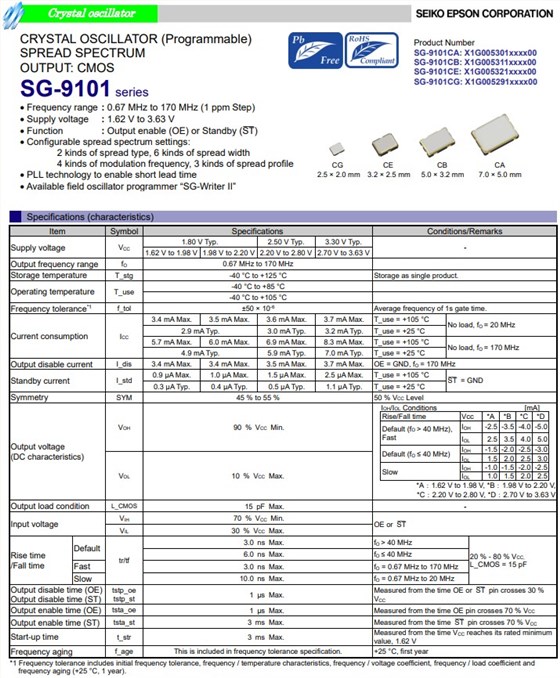

X1G0053110023/CMOS/SG-9101CB/25MHz/5032mm/3.3V/SMD，参数表

Item

Symbol

SG-9101CB规格说明

Conditions/Remarks

Supply voltage

VCC

1.80 V Typ.

2.50 V Typ.

3.30 V Typ.

1.62 to 1.98V

1.98 to 2.20V

2.20 to 2.80V

2.70 to 3.63 V

Output frequency range

0.67 MHz to 170 MHz

Storage temperature

T_stg

-40℃to +125℃

Storage as single product

Operating temperature

T_use

G: -40℃to +85℃

H: -40℃to +105℃

Frequency tolerance *1

f_tol

±50 x 10-6

Average frequency of 1s gate time

Current consumption

ICC

3.4mA Max.

3.5mA Max.

3.6mA Max.

3.7mA Max.

T_use= +105℃

No load
f0= 20 MHz

2.9mA Typ.

3.0mA Typ.

3.2mA Typ.

T_use= +25℃

5.7mA Max.

6.0mA Max.

6.9mA Max.

8.3mA Max.

T_use= +105℃

No load
f0= 170 MHz

4.9mA Typ.

5.9mA Typ.

7.0mA Typ.

T_use= +25℃

Output disable current

I_dis

3.4mA Max.

3.5mA Max.

3.7mA Max.

OE=GND , f0= 170 MHz

Standby current

I_std

0.9μA Max.

1.0μA Max.

1.5μA Max.

2.5μA Max.

T_use= +105℃

ST = GND

0.3μA Typ.

0.4μA Typ.

0.5μA Typ.

1.1μA Typ.

T_use= +25℃

Symmetry

SYM

45% to 55%

50% VCCLevel

Output voltage
(DC characteristics)

VOH

90% VCCMin.

[mA]

tr / tf

Vcc

Default

IOH

-2.5

-3.5

-4

-5

(f0>40MHz)

Fast

IOL

2.5

3.5

Default

IOH

-1.5

-2

-2.5

-3

VOL

10% VCCMax.

(f0≦40MHz)

IOL

1.5

2.5

Slow

IOH

-1

-1.5

-2

-2.5

IOL

1.5

2.5

A: 1.62 to 1.98 V , B: 1.98 to 2.20 V

C: 2.20 to 2.80 V , D: 2.70 to 3.63 V

Output load condition

L_CMOS

15pF Max.

Input voltage

VIH

70% VCCMin.

OE orST

VIL

30% VCCMax.

Rise
and
Fall
time

Default

tr / tf

3.0 ns Max.

f0> 40MHz

20% VCCto 80% VCC
L_CMOS=15pF

6.0 ns Max.

f0≦40MHz

Fast

3.0 ns Max.

f0=0.67to170MHz

Slow

10.0 ns Max.

f0=0.67to20MHz

Disable Time

t_stp

1 μs Max.

Measured from the time OE or ST pin crosses 30 % Vcc

Enable Time

t_sta

1 μs Max.

Measured from the time OE pin crosses 70 % Vcc

Resume Time

t_res

3 ms Max.

Measured from the time ST pin crosses 70 % Vcc

Start-up time

t_str

3 ms Max.

Measured from the time Vcc reaches its rated minimum value, 1.62 V

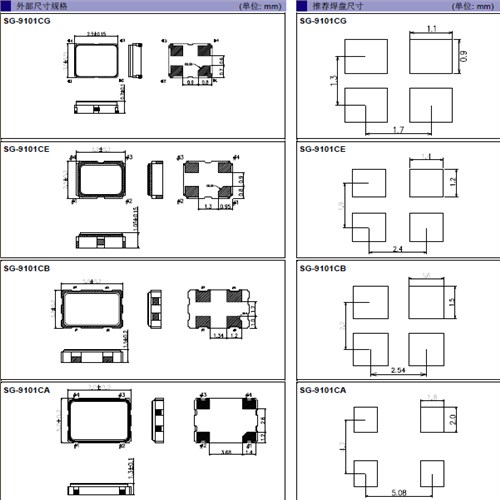

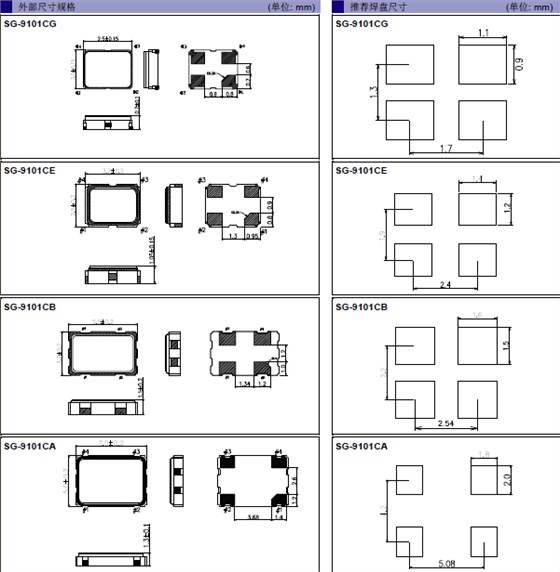

X1G0053110023/CMOS/SG-9101CB/25MHz/5032mm/3.3V/SMD，尺寸图

贴片振荡器	频率	型号	尺寸	输出波	电压	工作温度
X1G0053110011	65.536000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110012	22.996140 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110013	14.747720 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110014	32.959000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110015	16.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110016	33.025840 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110017	32.959000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110018	10.500000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110019	18.432000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110020	18.432000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110021	18.432000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110022	18.432000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110023	25.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G0053110024	50.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110025	27.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110026	40.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110027	19.660800 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110028	25.175000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110029	10.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110030	10.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110031	12.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G0053110032	16.000000 MHz	SG-9101CB	5032晶振	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G0053110033	36.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110034	26.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110035	33.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110036	33.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G0053110037	33.330000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G0053110038	40.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G0053110039	16.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110040	25.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110041	62.500000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110042	33.330000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110043	19.600000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110044	26.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110045	40.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110046	16.666000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110047	60.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110048	40.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110049	54.480000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110050	71.901000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110051	32.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110052	26.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110053	47.990000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110054	66.660000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110055	32.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110056	80.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G0053110057	33.333300 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110058	45.325000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110059	16.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110060	25.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110061	62.500000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110062	33.333300 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110063	66.660000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110064	16.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110065	66.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110066	12.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110067	12.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110068	25.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G0053110069	19.990800 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110070	39.680000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110071	25.000000 MHz	贴片晶振	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110072	40.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110073	33.330000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110074	20.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110075	12.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110076	20.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G0053110077	20.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G0053110078	16.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G0053110079	16.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G0053110080	66.666667 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110081	33.333300 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110082	27.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110083	20.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110084	20.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110085	54.480000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110086	64.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G0053110087	66.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110088	70.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110089	70.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110090	25.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110091	20.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110092	40.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110093	65.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G0053110094	24.500000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110095	25.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110096	25.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G0053110097	56.000000 MHz	SG-9101CB	5.00 x 3.20 x 1.30 mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
