当前位置：首页 » 新闻资讯 » M2M通讯设备应用晶振406I35D24M00000/6035mm/±30ppm/18pF/24MHz

M2M通讯设备应用晶振406I35D24M00000/6035mm/±30ppm/18pF/24MHz

返回列表 来源：精工富士 查看手机网址
扫一扫!M2M通讯设备应用晶振406I35D24M00000/6035mm/±30ppm/18pF/24MHz扫一扫!
 浏览：- 发布日期：2023-05-25 10:48:26【大 中 小】
分享到：

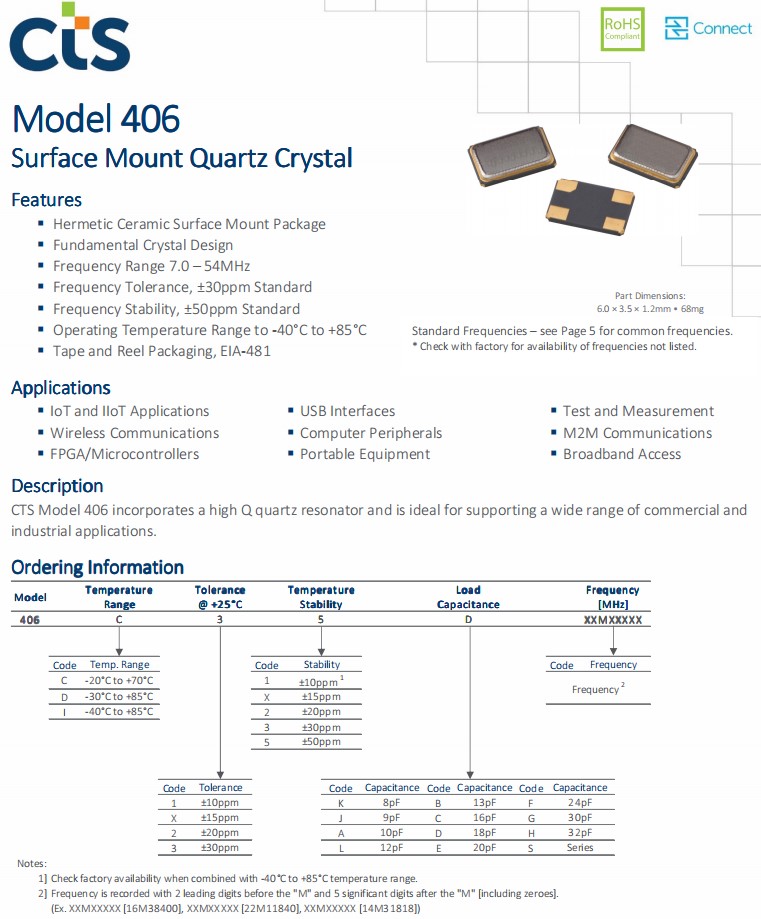

CTS晶振Model 406系列，是一款小体积晶振尺寸6.0x3.5mm表面安装石英晶体，四脚贴片晶振，无源晶振，石英贴片晶振，无铅环保晶振，采用了一个高Q石英谐振器，是支持广泛的商业和工业应用的理想选择。密封陶瓷表面安装封装，基本晶体设计，频率范围为：7.0-54MHz，频率公差：±30ppm标准，频率稳定性：±50ppm标准，工作温度范围：-40°C到+85°C，磁带和卷轴包装。石英水晶谐振器，应用于：物联网和物联网应用，无线通信，FPGA/微控制器，USB接口，计算机外设，便携式设备，测试和测量，M2M通信，宽带接入。M2M通讯设备应用晶振406I35D24M00000/6035mm/±30ppm/18pF/24MHz

406-1

原厂编码 厂家 型号 系列 频率 包装/封装
406C35B10M24500 CTS晶振 406 MHz Crystal 10.245MHz 4-SMD, No Lead
406I35D08M00000 CTS晶振 406 MHz Crystal 8MHz 4-SMD, No Lead
406C35D08M00000 CTS晶振 406 MHz Crystal 8MHz 4-SMD, No Lead
406C35B13M00000 CTS晶振 406 MHz Crystal 13MHz 4-SMD, No Lead
406C35D12M00000 CTS晶振 406 MHz Crystal 12MHz 4-SMD, No Lead
406C35B14M00000 CTS晶振 406 MHz Crystal 14MHz 4-SMD, No Lead
406C35B24M57600 CTS晶振 406 MHz Crystal 24.576MHz 4-SMD, No Lead
406I35D10M00000 CTS晶振 406 MHz Crystal 10MHz 4-SMD, No Lead
406I35D12M00000 CTS晶振 406 MHz Crystal 12MHz 4-SMD, No Lead
406C35D25M00000 CTS晶振 406 MHz Crystal 25MHz 4-SMD, No Lead
406C35B18M43200 CTS晶振 406 MHz Crystal 18.432MHz 4-SMD, No Lead
406I35D14M31818 CTS晶振 406 MHz Crystal 14.31818MHz 4-SMD, No Lead
406C35B10M00000 CTS晶振 406 MHz Crystal 10MHz 4-SMD, No Lead
406C35B44M54500 CTS晶振 406 MHz Crystal 44.545MHz 4-SMD, No Lead
406C35B30M00000 CTS晶振 406 MHz Crystal 30MHz 4-SMD, No Lead
406C35D24M00000 CTS晶振 406 MHz Crystal 24MHz 4-SMD, No Lead
406C35B27M00000 CTS晶振 406 MHz Crystal 27MHz 4-SMD, No Lead
406C35D16M00000 CTS晶振 406 MHz Crystal 16MHz 4-SMD, No Lead
406I35D16M00000 CTS晶振 406 MHz Crystal 16MHz 4-SMD, No Lead
406C35B13M22500 CTS晶振 406 MHz Crystal 13.225MHz 4-SMD, No Lead
406I35D20M00000 CTS晶振 406 MHz Crystal 20MHz 4-SMD, No Lead
406I35D24M00000 CTS晶振 406 MHz Crystal 24MHz 4-SMD, No Lead
406I35D25M00000 CTS晶振 406 MHz Crystal 25MHz 4-SMD, No Lead
406C35B12M28800 CTS晶振 406 MHz Crystal 12.288MHz 4-SMD, No Lead
406C35B12M68800 CTS晶振 406 MHz Crystal 12.688MHz 4-SMD, No Lead
406C35B14M31818 CTS晶振 406 MHz Crystal 14.31818MHz 4-SMD, No Lead
406C35B14M85000 CTS晶振 406 MHz Crystal 14.85MHz 4-SMD, No Lead
406C35B19M44000 CTS晶振 406 MHz Crystal 19.44MHz 4-SMD, No Lead
406C35B20M48000 CTS晶振 406 MHz Crystal 20.48MHz 4-SMD, No Lead
406C35B22M00000 CTS晶振 406 MHz Crystal 22MHz 4-SMD, No Lead
406C35B32M76800 CTS晶振 406 MHz Crystal 32.768MHz 4-SMD, No Lead
406C35B35M32800 CTS晶振 406 MHz Crystal 35.328MHz 4-SMD, No Lead
406C35B38M88000 CTS晶振 406 MHz Crystal 38.88MHz 4-SMD, No Lead
406C35B48M00000 CTS晶振 406 MHz Crystal 48MHz 4-SMD, No Lead
406C35D14M31818 CTS晶振 406 MHz Crystal 14.31818MHz 4-SMD, No Lead
406C35D10M00000 CTS晶振 406 MHz Crystal 10MHz 4-SMD, No Lead
406C35D20M00000 CTS晶振 406 MHz Crystal 20MHz 4-SMD, No Lead
406C35D11M05920 CTS晶振 406 MHz Crystal 11.0592MHz 4-SMD, No Lead
406C35D14M74560 CTS晶振 406 MHz Crystal 14.7456MHz 4-SMD, No Lead
406C35D16M93440 CTS晶振 406 MHz Crystal 16.9344MHz 4-SMD, No Lead
406C35D19M66080 CTS晶振 406 MHz Crystal 19.6608MHz 4-SMD, No Lead
406C35D24M57600 CTS晶振 406 MHz Crystal 24.576MHz 4-SMD, No Lead
406C35D27M00000 CTS晶振 406 MHz Crystal 27MHz 4-SMD, No Lead
406C35D32M00000 CTS晶振 406 MHz Crystal 32MHz 4-SMD, No Lead
406C35D32M76800 CTS晶振 406 MHz Crystal 32.768MHz 4-SMD, No Lead
406C35D40M00000 CTS晶振 406 MHz Crystal 40MHz 4-SMD, No Lead
406C35D48M00000 CTS晶振 406 MHz Crystal 48MHz 4-SMD, No Lead
406C35D50M00000 CTS晶振 406 MHz Crystal 50MHz 4-SMD, No Lead
406C35D64M00000 CTS晶振 406 MHz Crystal 64MHz 4-SMD, No Lead
406C35E08M00000 CTS晶振 406 MHz Crystal 8MHz 4-SMD, No Lead
406C35E10M00000 CTS晶振 406 MHz Crystal 10MHz 4-SMD, No Lead
406C35E11M05920 CTS晶振 406 MHz Crystal 11.0592MHz 4-SMD, No Lead
406C35E12M00000 CTS晶振 406 MHz Crystal 12MHz 4-SMD, No Lead
406C35E14M31818 CTS晶振 406 MHz Crystal 14.31818MHz 4-SMD, No Lead
406C35E14M74560 CTS晶振 406 MHz Crystal 14.7456MHz 4-SMD, No Lead
406C35E16M00000 CTS晶振 406 MHz Crystal 16MHz 4-SMD, No Lead
406C35E16M93440 CTS晶振 406 MHz Crystal 16.9344MHz 4-SMD, No Lead
406C35E19M66080 CTS晶振 406 MHz Crystal 19.6608MHz 4-SMD, No Lead
406C35E20M00000 CTS晶振 406 MHz Crystal 20MHz 4-SMD, No Lead
406C35E24M00000 CTS晶振 406 MHz Crystal 24MHz 4-SMD, No Lead
406C35E24M57600 CTS晶振 406 MHz Crystal 24.576MHz 4-SMD, No Lead
406C35E25M00000 CTS晶振 406 MHz Crystal 25MHz 4-SMD, No Lead
406C35E27M00000 CTS晶振 406 MHz Crystal 27MHz 4-SMD, No Lead
406C35E32M00000 CTS晶振 406 MHz Crystal 32MHz 4-SMD, No Lead
406C35E32M76800 无源晶振 406 MHz Crystal 32.768MHz 4-SMD, No Lead
406C35E40M00000 CTS晶振 406 MHz Crystal 40MHz 4-SMD, No Lead
406C35E48M00000 CTS晶振 406 MHz Crystal 48MHz 4-SMD, No Lead
406C35E50M00000 CTS晶振 406 MHz Crystal 50MHz 4-SMD, No Lead
406C35E64M00000 CTS晶振 406 MHz Crystal 64MHz 4-SMD, No Lead
406C35S14M31818 CTS晶振 406 MHz Crystal 14.31818MHz 4-SMD, No Lead
406C35S16M00000 CTS晶振 406 MHz Crystal 16MHz 4-SMD, No Lead
406C35S18M43200 CTS晶振 406 MHz Crystal 18.432MHz 4-SMD, No Lead
406C35S19M66080 CTS晶振 406 MHz Crystal 19.6608MHz 4-SMD, No Lead
406C35S20M00000 CTS晶振 406 MHz Crystal 20MHz 4-SMD, No Lead
406C35S24M00000 CTS晶振 406 MHz Crystal 24MHz 4-SMD, No Lead
406I35B10M00000 CTS晶振 406 MHz Crystal 10MHz 4-SMD, No Lead
406I35B10M24500 CTS晶振 406 MHz Crystal 10.245MHz 4-SMD, No Lead
406I35B12M28800 CTS晶振 406 MHz Crystal 12.288MHz 4-SMD, No Lead
406I35B12M68800 CTS晶振 406 MHz Crystal 12.688MHz 4-SMD, No Lead
406I35B13M00000 CTS晶振 406 MHz Crystal 13MHz 4-SMD, No Lead
406I35B13M25500 CTS晶振 406 MHz Crystal 13.255MHz 4-SMD, No Lead
406I35B14M00000 CTS晶振 406 MHz Crystal 14MHz 4-SMD, No Lead
406I35B14M31818 CTS晶振 406 MHz Crystal 14.31818MHz 4-SMD, No Lead
406I35B14M85000 CTS晶振 406 MHz Crystal 14.85MHz 4-SMD, No Lead
406I35B16M36800 CTS晶振 406 MHz Crystal 16.368MHz 4-SMD, No Lead
406I35B18M43200 CTS晶振 406 MHz Crystal 18.432MHz 4-SMD, No Lead
406I35B19M44000 CTS晶振 406 MHz Crystal 19.44MHz 4-SMD, No Lead
406I35B20M48000 CTS晶振 406 MHz Crystal 20.48MHz 4-SMD, No Lead
406I35B22M00000 CTS晶振 406 MHz Crystal 22MHz 4-SMD, No Lead
406I35B24M57600 CTS晶振 406 MHz Crystal 24.576MHz 4-SMD, No Lead
406I35B27M00000 CTS晶振 406 MHz Crystal 27MHz 4-SMD, No Lead
406I35B30M00000 CTS晶振 406 MHz Crystal 30MHz 4-SMD, No Lead
406I35B32M76800 CTS晶振 406 MHz Crystal 32.768MHz 4-SMD, No Lead
406I35B35M32800 CTS晶振 406 MHz Crystal 35.328MHz 4-SMD, No Lead
406I35B38M88000 CTS晶振 406 MHz Crystal 38.88MHz 4-SMD, No Lead
406I35B44M54500 CTS晶振 406 MHz Crystal 44.545MHz 4-SMD, No Lead
406I35B48M00000 CTS晶振 406 MHz Crystal 48MHz 4-SMD, No Lead
406I35D11M05920 CTS晶振 406 MHz Crystal 11.0592MHz 4-SMD, No Lead
406I35D14M74560 CTS晶振 406 MHz Crystal 14.7456MHz 4-SMD, No Lead
406I35D16M93440 CTS晶振 406 MHz Crystal 16.9344MHz 4-SMD, No Lead
406I35D19M66080 CTS晶振 406 MHz Crystal 19.6608MHz 4-SMD, No Lead
406I35D24M57600 CTS晶振 406 MHz Crystal 24.576MHz 4-SMD, No Lead
406I35D27M00000 CTS晶振 406 MHz Crystal 27MHz 4-SMD, No Lead
406I35D32M00000 CTS晶振 406 MHz Crystal 32MHz 4-SMD, No Lead
406I35D32M76800 CTS晶振 406 MHz Crystal 32.768MHz 4-SMD, No Lead
406I35D40M00000 CTS晶振 406 MHz Crystal 40MHz 4-SMD, No Lead
406I35D48M00000 CTS晶振 406 MHz Crystal 48MHz 4-SMD, No Lead
406I35D50M00000 CTS晶振 406 MHz Crystal 50MHz 4-SMD, No Lead
406I35D64M00000 CTS晶振 406 MHz Crystal 64MHz 4-SMD, No Lead
406I35E08M00000 CTS晶振 406 MHz Crystal 8MHz 4-SMD, No Lead
406I35E10M00000 CTS晶振 406 MHz Crystal 10MHz 4-SMD, No Lead
406I35E11M05920 CTS晶振 406 MHz Crystal 11.0592MHz 4-SMD, No Lead
406I35E12M00000 CTS晶振 406 MHz Crystal 12MHz 4-SMD, No Lead
406I35E14M31818 CTS晶振 406 MHz Crystal 14.31818MHz 4-SMD, No Lead
406I35E14M74560 CTS晶振 406 MHz Crystal 14.7456MHz 4-SMD, No Lead
406I35E16M00000 CTS晶振 406 MHz Crystal 16MHz 4-SMD, No Lead
406I35E16M93440 CTS晶振 406 MHz Crystal 16.9344MHz 4-SMD, No Lead
406I35E19M66080 CTS晶振 406 MHz Crystal 19.6608MHz 4-SMD, No Lead
406I35E20M00000 CTS晶振 406 MHz Crystal 20MHz 4-SMD, No Lead
406I35E24M00000 CTS晶振 406 MHz Crystal 24MHz 4-SMD, No Lead
406I35E24M57600 CTS晶振 406 MHz Crystal 24.576MHz 4-SMD, No Lead
406I35E25M00000 CTS晶振 406 MHz Crystal 25MHz 4-SMD, No Lead
406I35E27M00000 CTS晶振 406 MHz Crystal 27MHz 4-SMD, No Lead
406I35E32M00000 CTS晶振 406 MHz Crystal 32MHz 4-SMD, No Lead
406I35E32M76800 CTS晶振 406 MHz Crystal 32.768MHz 4-SMD, No Lead
406I35E40M00000 CTS晶振 406 6035晶振 40MHz 4-SMD, No Lead
406I35E48M00000 CTS晶振 406 MHz Crystal 48MHz 4-SMD, No Lead
406I35E50M00000 CTS晶振 406 MHz Crystal 50MHz 4-SMD, No Lead
406I35E64M00000 CTS晶振 406 MHz Crystal 64MHz 4-SMD, No Lead
406I35S14M31818 CTS晶振 406 MHz Crystal 14.31818MHz 4-SMD, No Lead
406I35S16M00000 CTS晶振 406 MHz Crystal 16MHz 4-SMD, No Lead
406I35S18M43200 CTS晶振 406 MHz Crystal 18.432MHz 4-SMD, No Lead
406I35S19M66080 CTS晶振 406 MHz Crystal 19.6608MHz 4-SMD, No Lead
406I35S20M00000 CTS晶振 406 MHz Crystal 20MHz 4-SMD, No Lead
406I35S24M00000 CTS晶振 406 MHz Crystal 24MHz 4-SMD, No Lead
406C11C19M44000 CTS晶振 406 MHz Crystal 19.44MHz 4-SMD, No Lead
406C33A27M00000 CTS晶振 406 MHz Crystal 27MHz 4-SMD, No Lead
406C33B13M22500 CTS晶振 406 MHz Crystal 13.225MHz 4-SMD, No Lead
406C35A25M00000 CTS晶振 406 MHz Crystal 25MHz 4-SMD, No Lead
406C35B12M00000 CTS晶振 406 MHz Crystal 12MHz 4-SMD, No Lead
406C35B16M00000 CTS晶振 406 MHz Crystal 16MHz 4-SMD, No Lead
406C35D20M48000 CTS晶振 406 MHz Crystal 20.48MHz 4-SMD, No Lead
406C35D30M00000 CTS晶振 406 MHz Crystal 30MHz 4-SMD, No Lead
406C35L26M56250 CTS晶振 406 MHz Crystal 26.5625MHz 4-SMD, No Lead
406I13D14M74560 CTS晶振 406 MHz Crystal 14.7456MHz 4-SMD, No Lead
406I23F38M88000 CTS晶振 406 MHz Crystal 38.88MHz 4-SMD, No Lead
406I22A13M00000 CTS晶振 406 MHz Crystal 13MHz 4-SMD, No Lead
406I22A24M57600 CTS晶振 406 MHz Crystal 24.576MHz 4-SMD, No Lead
406I12A11M05920 CTS晶振 406 MHz Crystal 11.0592MHz 4-SMD, No Lead
406I12D25M00000 CTS晶振 406 MHz Crystal 25MHz 4-SMD, No Lead
M2M通讯设备应用晶振406I35D24M00000/6035mm/±30ppm/18pF/24MHz，小型贴片石英晶振主要采用了，先进的晶片的抛光工艺技术，是晶体行业中石英晶片研磨技术中表面处理的最高技术，最终使晶片表面更光洁，平行度及平面度更好，大大的降低谐振电阻，使精度得到了很大的提升。改变了传统的生产工艺，使产品在各项参数得到了很大的改良,外观尺寸具有薄型表面贴片型石英晶体谐振器,特别适用于有小型化要求的市场领域,比如智能手机,无线蓝牙,平板电脑等电子数码产品。

406.6035
