SG3225EEN晶振编码X1G005221100200具有LV-PECL差分晶振实现高频高精度等要求

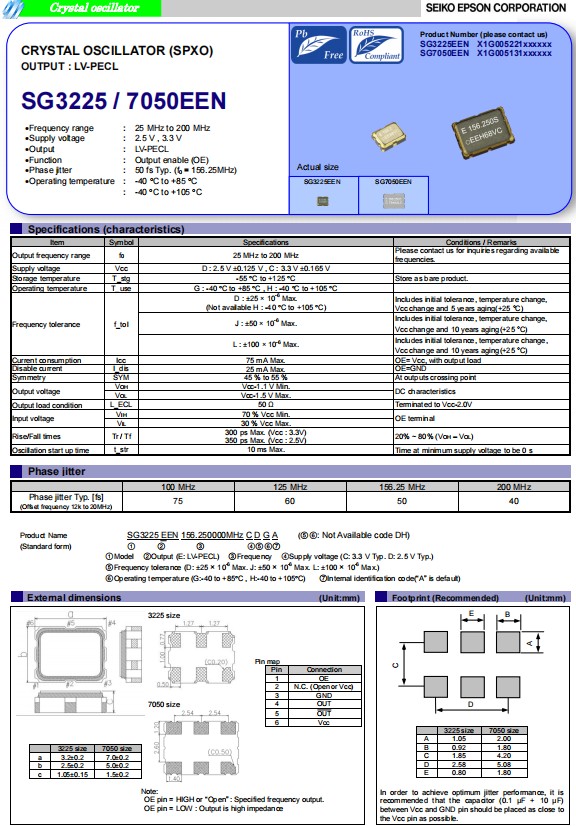

日本进口爱普生晶振SG3225EEN，小体积尺寸3.2x2.5mm，是一款小体积六脚贴片晶振，LV-PECL差分晶振，有源晶振，频率范围可提供25M至200MHZ任一频点,具有低电源电压，满足产品低消耗电流的特点。
差分晶振LVDS,LV-PECL,HCSL三态输出模式,爱普生SG3225EEN晶振则是差分LV-PECL输出模式,爱普生SG3225EEN差分晶振,高品质,满足不同产品需求可提供频率稳定偏差+-20PPM,+-50PPM,+-100PPM,多种选择.低消耗电流,工作温度可达到-40~+85以及-40~+105℃,具有低相位抖动.在电源电压最低时,震荡启动时间所需时间仅0秒。
SG3225EEN晶振编码X1G005221100200具有LV-PECL差分晶振实现高频高精度等要求
| 产品编码 |
 爱普生晶振
|
 频率
|
 尺寸
|
 输出波
|
 电源电压
|
| X1G005221000100 | SG3225EEN | 100.000000 MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465 V |
| X1G005221000200 | SG3225EEN | 125.000000 MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465 V |
| X1G005221000300 | SG3225EEN | 125.003125 MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465 V |
| X1G005221000400 | SG3225EEN | 155.520000 MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465 V |
| X1G005221000500 | SG3225EEN | 156.250000 MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465 V |
| X1G005221000700 | SG3225EEN | 156.253906 MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465 V |
| X1G005221000800 | SG3225EEN | 156.250000 MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465 V |
| X1G005221001300 | SG3225EEN | 100.000000 MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465 V |
| X1G005221001400 | SG3225EEN | 200.000000 MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465 V |
| X1G005221001800 | SG3225EEN | 100.000000 MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465 V |
| X1G005221001900 | SG3225EEN | 50.000000 MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465 V |
| X1G005221002100 | SG3225EEN | 125.000000 MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465 V |
| X1G005221002300 | SG3225EEN | 25.000000 MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465 V |
| X1G005221002400 | SG3225EEN | 166.015625 MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465 V |
| X1G005221002800 | SG3225EEN | 156.250000 MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465 V |
| X1G005221003000 | SG3225EEN | 25.000000 MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465 V |
| X1G005221004300 | SG3225EEN | 25.000000 MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465 V |
| X1G005221004400 | SG3225EEN | 100.000000 MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465 V |
| X1G005221004800 | SG3225EEN | 156.250000 MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465 V |
| X1G005221005100 | SG3225EEN | 100.000000 MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465 V |
| X1G005221005400 | SG3225EEN | 146.370000 MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465 V |
| X1G005221005500 | SG3225EEN | 150.000000 MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465 V |
| X1G005221005600 | SG3225EEN | 155.520000 MHz | 3.20x2.50x1.20mm | LV-PECL | 3.135 to 3.465 V |
| X1G005221100100 | SG3225EEN | 100.000000 MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625 V |
| X1G005221100200 | SG3225EEN | 125.000000 MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625 V |
| X1G005221100300 | SG3225EEN | 156.250000 MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625 V |
| X1G005221100500 | SG3225EEN | 156.250000 MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625 V |
| X1G005221100700 | SG3225EEN | 156.250000 MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625 V |
| X1G005221100800 | SG3225EEN | 156.253906 MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625 V |
| X1G005221101000 | SG3225EEN | 50.000000 MHz | 3.20x2.50x1.20mm | LV-PECL | 2.375 to 2.625 V |
差分晶振是普通贴片晶振所不能够达到的,差分晶振具有低电平,低抖动,低功耗等特性.差分晶振作为目前行业中高要求,高技术石英晶体振荡器,具有相位低,损耗低的特点,爱普生差分晶振使用于产品中能够很容易地识别小信号,能够从容精确地处理双级信号,对外部电磁干扰(EMI)是高度免疫的,差分石英晶振满足市场需求,实现高频高精度等要求,更加保障了各种系统参考时钟的可靠性
