低抖动6G模块晶振,4HF100000Z3BACXGI8,IDT六脚贴片晶振

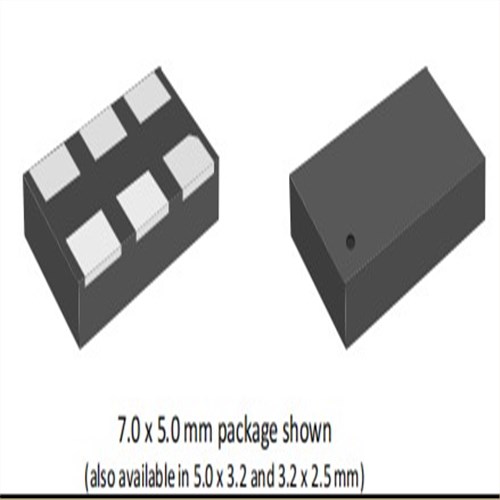

低抖动6G模块晶振,4HF100000Z3BACXGI8,IDT六脚贴片晶振，美国进口晶振，IDT晶振，4HF系列晶振，编码为：4HF100000Z3BACXGI8，频率为：100.000MHz，小体积晶振尺寸：7.0x5.0mm，六脚贴片晶振，石英晶振，有源晶振，100.00MHz超低抖动Osc振荡器+PPM边缘MEMS振荡器（LVPECL），是一个超低相位抖动（100 fs）振荡器，能够在1ppm的步长中实现高达± 1000ppm的实时频率边缘。它是理想的应用程序需要极低的抖动和/或加PPM时钟。从99.900到100.100 MHz的任何频率都可以实时生成，而不需要使用y个外部XTAL或XO。应用于：移动通讯设备，网络设备晶振，蓝牙模块，物联网，GPS定位系统，导航仪，汽车电子设备，安防设备，以太网等应用。

低抖动6G模块晶振,4HF100000Z3BACXGI8,IDT六脚贴片晶振，参数表

Parameter	2.5 V			3.3 V			Units	Conditions
	Specifications			Specifications
	Min	Typ	Max	Min	Typ	Max
Supply Voltage (VDD)	2.375	2.5	2.625	2.97	3.3	3.63	V
Output Frequency		100			100		MHz
Frequency Stability	-50		50	-50		50	ppm	Includes supply voltage and temperature variation (-40 to 85°C),
Frequency Stability	-50		50	-50		50	ppm	reflow drift, and aging.
Supply Current		90			95		mA	No load
Enable/Disable Time			1			1	us	Guaranteed by design
Input LOW level			0.3VDD	0. 7VDD		0.3VDD	V	At OE pin
Input HIGH level	0. 7VDD		VDD-1.8			VDD-1.8	V
Output LOW level		0.8		VDD-1.1	1.5		V
Output HIGH level	VDD-1.0	1.6			2.3		V
Amplitude (VA)		0.75			0.75		V	Single Ended output swing (Pk-Pk)
Mid Level (VM)		VDD-1.3			VDD-1.3		V
Rise Time (TR)			300		250		ps	Maximum; 20/80% of VA; Output load (CL) = 2pF; Guaranteed by Char.
Symmetry (SYM)	48	50	52	48	50	52	%	Worst case; measured at 50% of waveform
Phase Jitter		0.12			0.12			1.875MHz to 20MHz, RMS; Measured Differentially (IEEE802.3-2005)
Phase Jitter		0.25			0.25		ps	12k to 20MHz, RMS; Measured Differentially
Period Jitter		2.5			2.5		ps	RMS
Cycle-to-Cycle Jitter		20			20		ps	1,000 cycles, Peak
Start-up Time		10			10		ms	Output valid time after power up, 25°C
Aging		± 5			± 5		ppm	25°C, 10 years

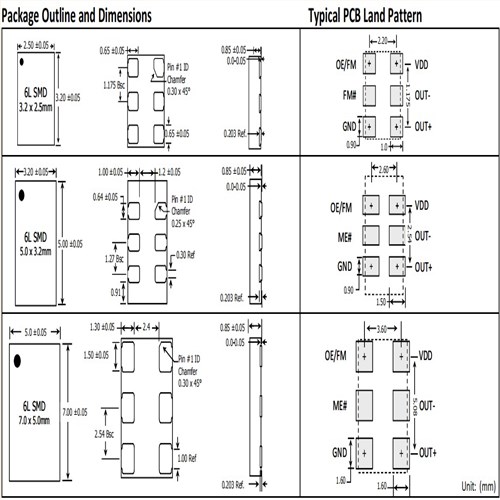

低抖动6G模块晶振,4HF100000Z3BACXGI8,IDT六脚贴片晶振，尺寸图

低抖动6G模块晶振,4HF100000Z3BACXGI8,IDT六脚贴片晶振

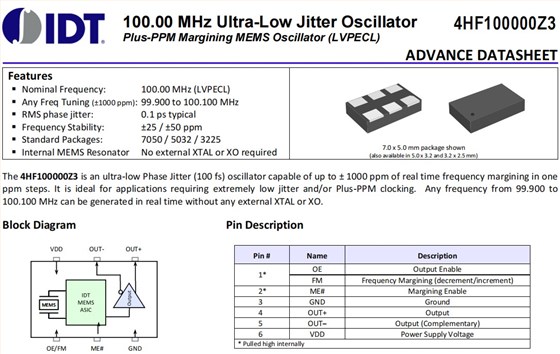

特点：标称频率： 100.00 MHz（LVPECL）

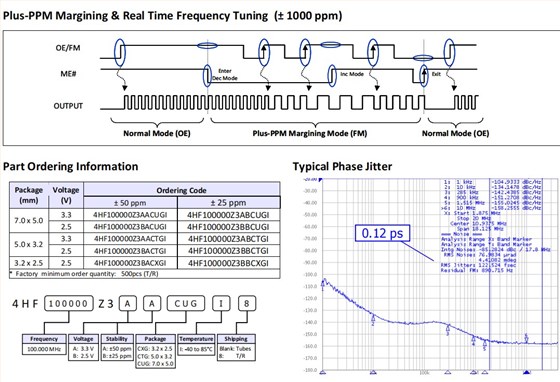

任何Freq调谐（±1000 ppm）： 99.900至100.100 MHz

RMS相位抖动：0.1 ps典型的

频率稳定性： ± 25 / ± 50 ppm

标准软件包： 7050mm / 5032mm / 3225mm石英晶体振荡器

内部MEMS谐振器不需要外部XTAL或XO

进口贴片晶振	品牌	参数	型号	频率	输出
4HF100000Z3AACTGI	IDT晶振	OSC MEMS 100.000MHZ LVPECL SMD	4HF	100MHz	LVPECL
4HF100000Z3AACTGI8	IDT晶振	OSC MEMS 100.000MHZ LVPECL SMD	4HF	100MHz	LVPECL
4HF100000Z3AACUGI	IDT晶振	OSC MEMS 100.000MHZ LVPECL SMD	4HF	100MHz	LVPECL
4HF100000Z3AACUGI8	IDT晶振	OSC MEMS 100.000MHZ LVPECL SMD	4HF	100MHz	LVPECL
4HF100000Z3AACXGI	IDT晶振	OSC MEMS 100.000MHZ LVPECL SMD	4HF	100MHz	LVPECL
4HF100000Z3AACXGI8	IDT晶振	OSC MEMS 100.000MHZ LVPECL SMD	4HF	100MHz	LVPECL
4HF100000Z3BACTGI	IDT晶振	OSC MEMS 100.000MHZ LVPECL SMD	4HF	100MHz	LVPECL
4HF100000Z3BACTGI8	IDT晶振	OSC MEMS 100.000MHZ LVPECL SMD	4HF	100MHz	LVPECL
4HF100000Z3BACUGI	IDT晶振	OSC MEMS 100.000MHZ LVPECL SMD	4HF	100MHz	LVPECL
4HF100000Z3BACUGI8	IDT晶振	OSC MEMS 100.000MHZ LVPECL SMD	4HF	100MHz	LVPECL
4HF100000Z3BACXGI	IDT晶振	OSC MEMS 100.000MHZ LVPECL SMD	4HF	100MHz	LVPECL
4HF100000Z3BACXGI8	IDT晶振	OSC MEMS 100.000MHZ LVPECL SMD	4HF	100MHz	LVPECL
4HF100000Z4AACTGI	IDT晶振	OSC MEMS 100.000MHZ LVDS SMD	4HF	100MHz	LVDS
4HF100000Z4AACTGI8	IDT晶振	OSC MEMS 100.000MHZ LVDS SMD	4HF	100MHz	LVDS
4HF100000Z4AACUGI	IDT晶振	OSC MEMS 100.000MHZ LVDS SMD	4HF	100MHz	LVDS
4HF100000Z4AACUGI8	IDT晶振	OSC MEMS 100.000MHZ LVDS SMD	4HF	100MHz	LVDS
4HF100000Z4AACXGI	IDT晶振	OSC MEMS 100.000MHZ LVDS SMD	4HF	100MHz	LVDS
4HF100000Z4AACXGI8	IDT晶振	OSC MEMS 100.000MHZ LVDS SMD	4HF	100MHz	LVDS
4HF100000Z4BACTGI	IDT晶振	OSC MEMS 100.000MHZ LVDS SMD	4HF	100MHz	LVDS
4HF100000Z4BACTGI8	IDT晶振	OSC MEMS 100.000MHZ LVDS SMD	4HF	100MHz	LVDS
4HF100000Z4BACUGI	IDT晶振	OSC MEMS 100.000MHZ LVDS SMD	4HF	100MHz	LVDS
4HF100000Z4BACUGI8	IDT晶振	OSC MEMS 100.000MHZ LVDS SMD	4HF	100MHz	LVDS
4HF100000Z4BACXGI	IDT晶振	OSC MEMS 100.000MHZ LVDS SMD	4HF	100MHz	LVDS
4HF100000Z4BACXGI8	IDT晶振	OSC MEMS 100.000MHZ LVDS SMD	4HF	100MHz	LVDS
4HF106250Z3AACTGI	IDT晶振	OSC MEMS 106.25MHZ LVPECL SMD	4HF	106.25MHz	LVPECL
4HF106250Z3AACTGI8	IDT晶振	OSC MEMS 106.25MHZ LVPECL SMD	4HF	106.25MHz	LVPECL
4HF106250Z3AACUGI	IDT晶振	OSC MEMS 106.25MHZ LVPECL SMD	4HF	106.25MHz	LVPECL
4HF106250Z3AACUGI8	IDT晶振	OSC MEMS 106.25MHZ LVPECL SMD	4HF	106.25MHz	LVPECL
4HF106250Z3AACXGI	IDT晶振	OSC MEMS 106.25MHZ LVPECL SMD	4HF	106.25MHz	LVPECL
4HF106250Z3AACXGI8	IDT晶振	106.25MHZ LVPECL石英晶振	4HF	106.25MHz	LVPECL
4HF106250Z3BACTGI	IDT晶振	OSC MEMS 106.25MHZ LVPECL SMD	4HF	106.25MHz	LVPECL
4HF106250Z3BACTGI8	IDT晶振	OSC MEMS 106.25MHZ LVPECL SMD	4HF	106.25MHz	LVPECL
4HF106250Z3BACUGI	IDT晶振	OSC MEMS 106.25MHZ LVPECL SMD	4HF	106.25MHz	LVPECL
4HF106250Z3BACUGI8	IDT晶振	OSC MEMS 106.25MHZ LVPECL SMD	4HF	106.25MHz	LVPECL
4HF106250Z3BACXGI	IDT晶振	OSC MEMS 106.25MHZ LVPECL SMD	4HF	106.25MHz	LVPECL
4HF106250Z3BACXGI8	IDT晶振	OSC MEMS 106.25MHZ LVPECL SMD	4HF	106.25MHz	LVPECL
4HF106250Z4AACTGI	IDT晶振	OSC MEMS 106.25MHZ LVDS SMD	4HF	106.25MHz	LVDS
4HF106250Z4AACTGI8	IDT晶振	OSC MEMS 106.25MHZ LVDS SMD	4HF	106.25MHz	LVDS
4HF106250Z4AACUGI	IDT晶振	OSC MEMS 106.25MHZ LVDS SMD	4HF	106.25MHz	LVDS
4HF106250Z4AACUGI8	IDT晶振	OSC MEMS 106.25MHZ LVDS SMD	4HF	106.25MHz	LVDS
4HF106250Z4AACXGI	IDT晶振	OSC MEMS 106.25MHZ LVDS SMD	4HF	106.25MHz	LVDS
4HF106250Z4AACXGI8	IDT晶振	OSC MEMS 106.25MHZ LVDS SMD	4HF	106.25MHz	LVDS
4HF106250Z4BACTGI	IDT晶振	OSC MEMS 106.25MHZ LVDS SMD	4HF	106.25MHz	LVDS
4HF106250Z4BACTGI8	IDT晶振	OSC MEMS 106.25MHZ LVDS SMD	4HF	106.25MHz	LVDS
4HF106250Z4BACUGI	IDT晶振	OSC MEMS 106.25MHZ LVDS SMD	4HF	106.25MHz	LVDS
4HF106250Z4BACUGI8	IDT晶振	OSC MEMS 106.25MHZ LVDS SMD	4HF	106.25MHz	LVDS
4HF106250Z4BACXGI	IDT晶振	OSC MEMS 106.25MHZ LVDS SMD	4HF	106.25MHz	LVDS
4HF106250Z4BACXGI8	IDT晶振	OSC MEMS 106.25MHZ LVDS SMD	4HF	106.25MHz	LVDS
4HF125000Z3BACTGI	IDT晶振	OSC MEMS 125.000MHZ LVPECL SMD	4HF	125MHz	LVPECL
4HF125000Z3BACTGI8	IDT晶振	OSC MEMS 125.000MHZ LVPECL SMD	4HF	125MHz	LVPECL
4HF125000Z3BACUGI	IDT晶振	OSC MEMS 125.000MHZ LVPECL SMD	4HF	125MHz	LVPECL
4HF125000Z3BACUGI8	IDT晶振	OSC MEMS 125.000MHZ LVPECL SMD	4HF	125MHz	LVPECL
4HF125000Z3BACXGI	IDT晶振	OSC MEMS 125.000MHZ LVPECL SMD	4HF	125MHz	LVPECL
4HF125000Z3BACXGI8	IDT晶振	OSC MEMS 125.000MHZ LVPECL SMD	4HF	125MHz	LVPECL
4HF125000Z4BACTGI	IDT晶振	OSC MEMS 125.000MHZ LVDS SMD	4HF	125MHz	LVDS
4HF125000Z4BACTGI8	IDT晶振	OSC MEMS 125.000MHZ LVDS SMD	4HF	125MHz	LVDS
4HF125000Z4BACUGI	IDT晶振	OSC MEMS 125.000MHZ LVDS SMD	4HF	125MHz	LVDS
4HF125000Z4BACUGI8	IDT晶振	OSC MEMS 125.000MHZ LVDS SMD	4HF	125MHz	LVDS
4HF125000Z4BACXGI	IDT晶振	OSC MEMS 125.000MHZ LVDS SMD	4HF	125MHz	LVDS
4HF125000Z4BACXGI8	IDT晶振	OSC MEMS 125.000MHZ LVDS SMD	4HF	125MHz	LVDS
4HF133330Z3AACTGI	IDT晶振	OSC MEMS 133.33MHZ LVPECL SMD	4HF	133.33MHz	LVPECL
4HF133330Z3AACTGI8	IDT晶振	OSC MEMS 133.33MHZ LVPECL SMD	4HF	133.33MHz	LVPECL
4HF133330Z3AACUGI	IDT晶振	OSC MEMS 133.33MHZ LVPECL SMD	4HF	133.33MHz	LVPECL
4HF133330Z3AACUGI8	IDT晶振	OSC MEMS 133.33MHZ LVPECL SMD	4HF	133.33MHz	LVPECL
4HF156250Z3BACTGI	IDT晶振	OSC MEMS 156.25MHZ LVPECL SMD	4HF	156.25MHz	LVPECL
4HF156250Z3BACTGI8	IDT晶振	OSC MEMS 156.25MHZ LVPECL SMD	4HF	156.25MHz	LVPECL
4HF156250Z3BACUGI	IDT晶振	OSC MEMS 156.25MHZ LVPECL SMD	4HF	156.25MHz	LVPECL
4HF156250Z3BACUGI8	IDT晶振	OSC MEMS 156.25MHZ LVPECL SMD	4HF	156.25MHz	LVPECL
4HF156250Z3BACXGI	IDT晶振	OSC MEMS 156.25MHZ LVPECL SMD	4HF	156.25MHz	LVPECL
4HF156250Z3BACXGI8	IDT晶振	OSC MEMS 156.25MHZ LVPECL SMD	4HF	156.25MHz	LVPECL
4HF156250Z4BACTGI	IDT晶振	OSC MEMS 156.25MHZ LVDS SMD	4HF	156.25MHz	LVDS
4HF156250Z4BACTGI8	IDT晶振	OSC MEMS 156.25MHZ LVDS SMD	4HF	156.25MHz	LVDS
4HF156250Z4BACUGI	IDT晶振	OSC MEMS 156.25MHZ LVDS SMD	4HF	156.25MHz	LVDS
4HF156250Z4BACUGI8	IDT晶振	OSC MEMS 156.25MHZ LVDS SMD	4HF	156.25MHz	LVDS
4HF156250Z4BACXGI	IDT晶振	OSC MEMS 156.25MHZ LVDS SMD	4HF	156.25MHz	LVDS
