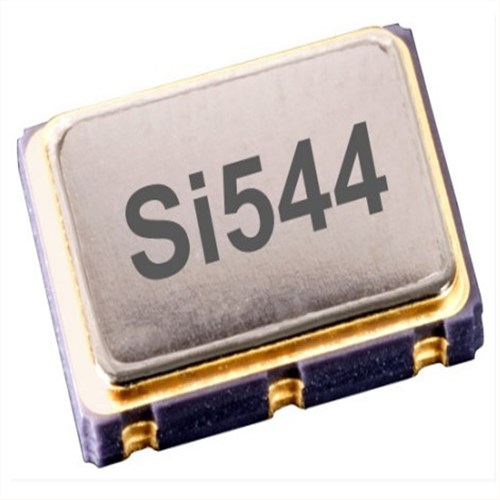

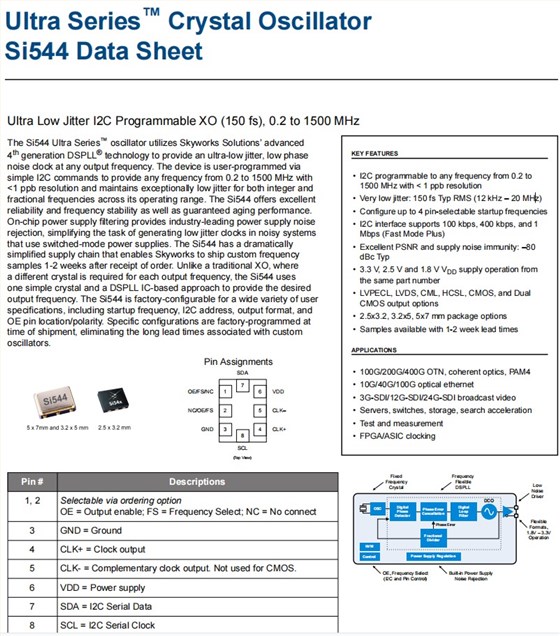

Skyworks服务器晶振,Si544低电流差分晶振,544BADB000991ACG晶体振荡器，进口晶振，Skyworks思佳讯晶振，型号：Si544，编码为：544BADB000991ACG，频率为：135MHz，小体积晶振尺寸：7.0x5.0mm封装，六脚贴片晶振，LVDS输出差分晶体振荡器，石英晶振，有源晶振，石英晶体振荡器。Si544超系列™振荡器利用天空解决方案先进的第四代DSPLL®技术，在任何输出频率提供超低抖动、低相位噪声时钟。该设备通过简单的I2C命令进行用户编程，提供从0.2到1500 MHz的任何频率和<1 ppb分辨率，并在其工作范围内对整数和分数频率保持异常低的抖动。Si544提供了良好的可靠性和频率稳定性，以及保证老化性能。片上电源滤波提供了行业领先的电源噪声抑制，简化了在使用切换模式电源的有噪声系统中产生低抖动时钟的任务。Si544有一个大大简化的供应链，使Skyworks能够在收到订单1-2周后运送定制的频率的样品。与传统的XO不同，每个输出频率都需要不同的晶体，Si544差分晶振使用一个简单的晶体和一种基于DSPLL ic的方法来提供所需的输出频率。Si544可在工厂上配置各种用户规格，包括启动频率、I2C地址、输出格式和OE引脚位置/极性。特定的配置是在装运时由工厂编程的，消除了与自定义振荡器相关的长交货时间。

应用于：100G/200G/400G OTN，相干光学，PAM4，10G/40G/100G光学以太网，3G-SDI/12G-SDI/24G-SDI广播视频，服务器、交换机、存储、搜索加速，测试和测量，FPGA/ASIC时钟等应用。

Skyworks服务器晶振,Si544低电流差分晶振,544BADB000991ACG晶体振荡器，参数表

Parameter	Symbol	Test Condition/Comment	Min	Typ	Max	Unit
Temperature Range	TA		–40		85	ºC
Frequency Range	FCLK	LVPECL, LVDS, CML	135			MHz
		HCSL	0.2	—	400	MHz
		CMOS, Dual CMOS	0.2		250	MHz
Supply Voltage	V DD	3.3 V	3.135	3.3	3.465	V
		2.5 V	2.375	2.5	2.625	V
		1.8 V	1.71	1.8	1.89	V
Supply Current	IDD	LVPECL (output enabled)		100	145	mA
		LVDS/CML (output enabled)	—	75	111	mA
		HCSL (output enabled)		80	125	mA
		HCSL-Fast (output enabled)	—	88	137	mA
		CMOS (output enabled)		74	108	mA
		Dual CMOS (output enabled)	—	80	125	mA
		Tristate Hi-Z (output disabled)		64	100	mA
Temperature Stability		Frequency stability Grade A	–20	—	20	ppm
		Frequency stability Grade B	–10		10	ppm
		Frequency stability Grade C	–7	—	7	ppm
Total Stability1	F STAB	Frequency stability Grade A	–50		50	ppm
		Frequency stability Grade B	–25	—	25	ppm
		Frequency stability Grade C	–20		20	ppm
Rise/Fall Time (20% to 80% VPP)	TR/TF	LVPECL/LVDS/CML	—	—	350	ps
		CMOS / Dual CMOS (CL= 5 pF)	—	0.5	1.5	ns
		HCSL, FCLK>50 MHz	—	—	550	ps
		HCSL-Fast, FCLK>50 MHz	—	—	275	ps
Duty Cycle	DC	All formats	45	—	55	%
Output Enable (OE), Frequency Select (FS0, FS1)2	VIH		0.7 × VDD			V
	VIL		—	—	0.3 × VDD	V
	TD	Output Disable Time, FCLK>10 MHz	—	—	3	µs
	TE	Output Enable Time, FCLK>10 MHz	—	—	20	µs
	T FS	Settling Time after FS Change			10	ms
Powerup Time	tOSC	Time from 0.9 × VDDuntil output fre- quency (FCLK) within spec	—	—	10	ms

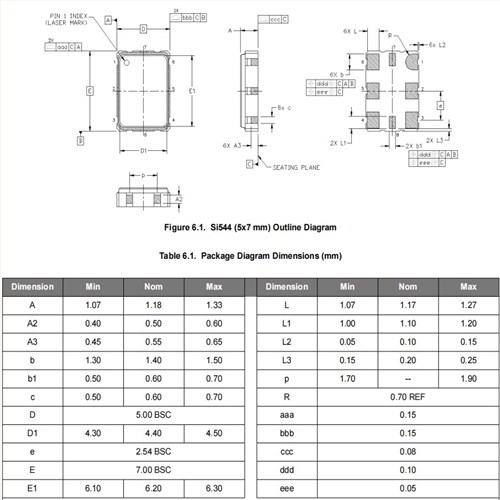

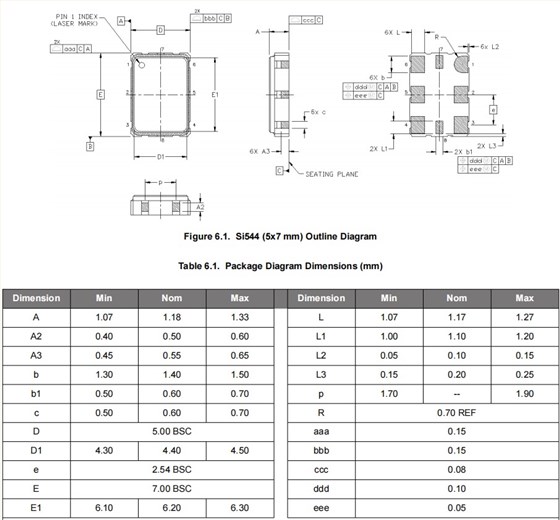

Skyworks服务器晶振,Si544低电流差分晶振,544BADB000991ACG晶体振荡器，尺寸图

Skyworks服务器晶振,Si544低电流差分晶振,544BADB000991ACG晶体振荡器

产品特点：

I2C可编程至0.2至1500 MHz的任何频率，分辨率<1 ppb
极低抖动：150 fs典型RMS（12 kHz–20 MHz）
最多配置4针可选启动频率
I2C接口支持100 kbps、400 kbps和1 Mbps（Fast Mode Plus）
出色的PSNR和电源抗扰度：–80dBc Typ
相同零件号的3.3 V、2.5 V和1.8 V VDD电源操作
LVPECL、LVDS、CML、HCSL、CMOS和双CMOS输出选项
2.5x3.2、3.2x5、5x7 mm封装选项贴片石英晶振
样品可用，交付周期为1-2周
